LT 160H42CBV2 (80843) - Snapper 42" Lawn Tractor, 16hp Front Wheels Parts Diagram

42" Lawn Tractor, 16hp

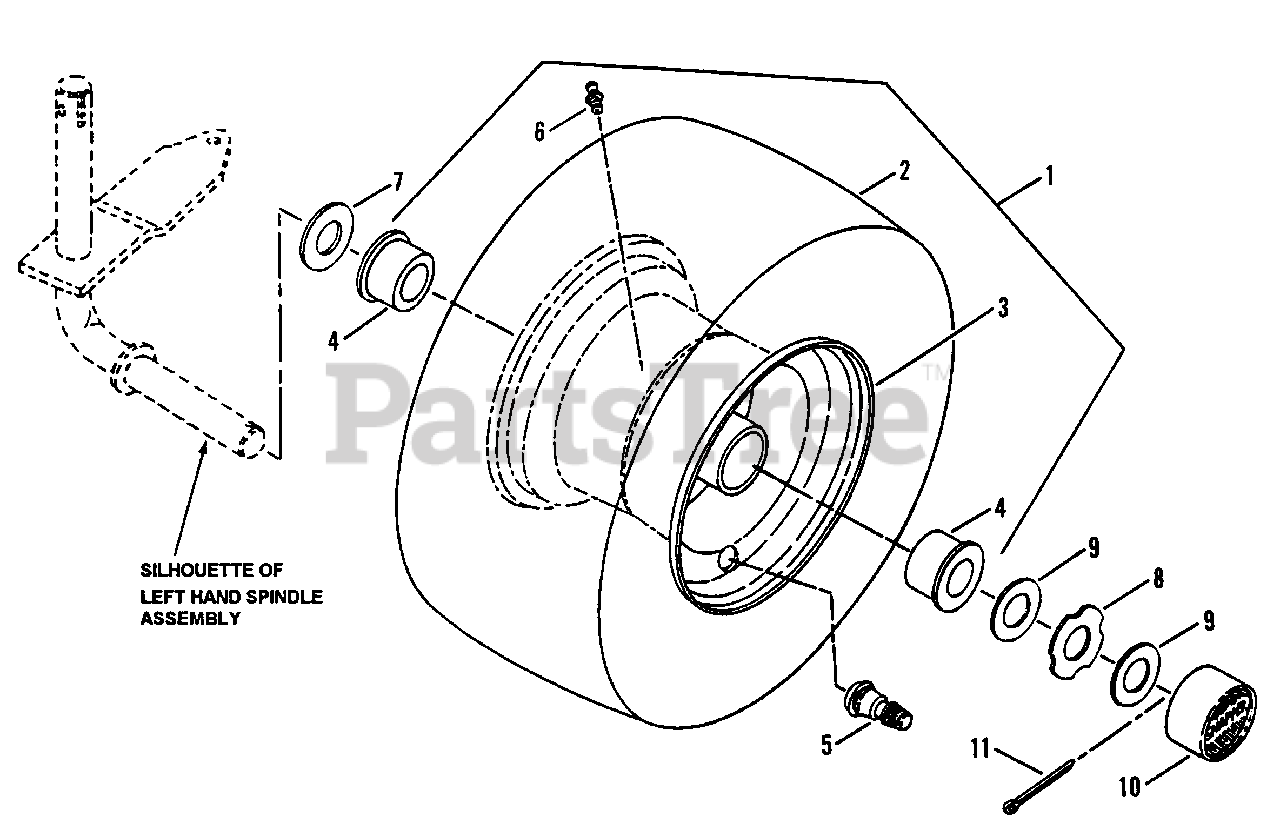

Front Wheels Parts Diagram

  • Title
1

Snapper 7058517

ASSEMBLY, Front Tire & Rim, 38 & 42 Decks
(Superseded to 7058517YP)

Note: Was 52957 (Includes 2 thru 6)

$167.99

$

Usually ships in 2-12 days

0

2

Snapper 7072704

TIRE, 15 x 6.00
(Superseded to 7058517YP)

Note: Was 26109

$167.99

$

Usually ships in 2-12 days

0

3

Snapper 7022772

Rl M, 5-1/2 x 4.00
(Superseded to 7058517YP)

$167.99

$

Usually ships in 2-12 days

0

4

Snapper 7014483

BEARING, Wheel
(Superseded to 7014483YP)

$10.99

$

In Stock, Qty 11

0

5

Snapper 7012234

VALVE, Air (Snap-In)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

6

Snapper 7076998

FITTING, Lube 1/4-28 Tapered Thread
(Superseded to 703153)

Note: Was 13876

$3.99

$

In Stock, Qty 12

0

7

Snapper 7034453

WASHER, Flat, 5/32 x 25/32 I.D. x 1-1/2 O.D.
(Superseded to 7034453YP)

$5.49

$

Usually ships in 2-12 days

0

8

Snapper 7029618

WASHER, Hub-Cap Retaining

$3.99

$

In Stock, only 3 left!

0

9

Snapper 7029617

WASHER, Flat, 1/16 x 49/64 1.9. x 1-5/16" O.D.
(Superseded to 7029617YP)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7011022

HUB-CAP
(Superseded to 7011022YP)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7091516

COTTER-PIN, 5/32 x 1
(Superseded to 703984)

$4.49

$

In Stock, Qty 11

0
