LT 160H42CBV2 (80843) - Snapper 42" Lawn Tractor, 16hp 42" Cutting Deck Parts Diagram

42" Lawn Tractor, 16hp

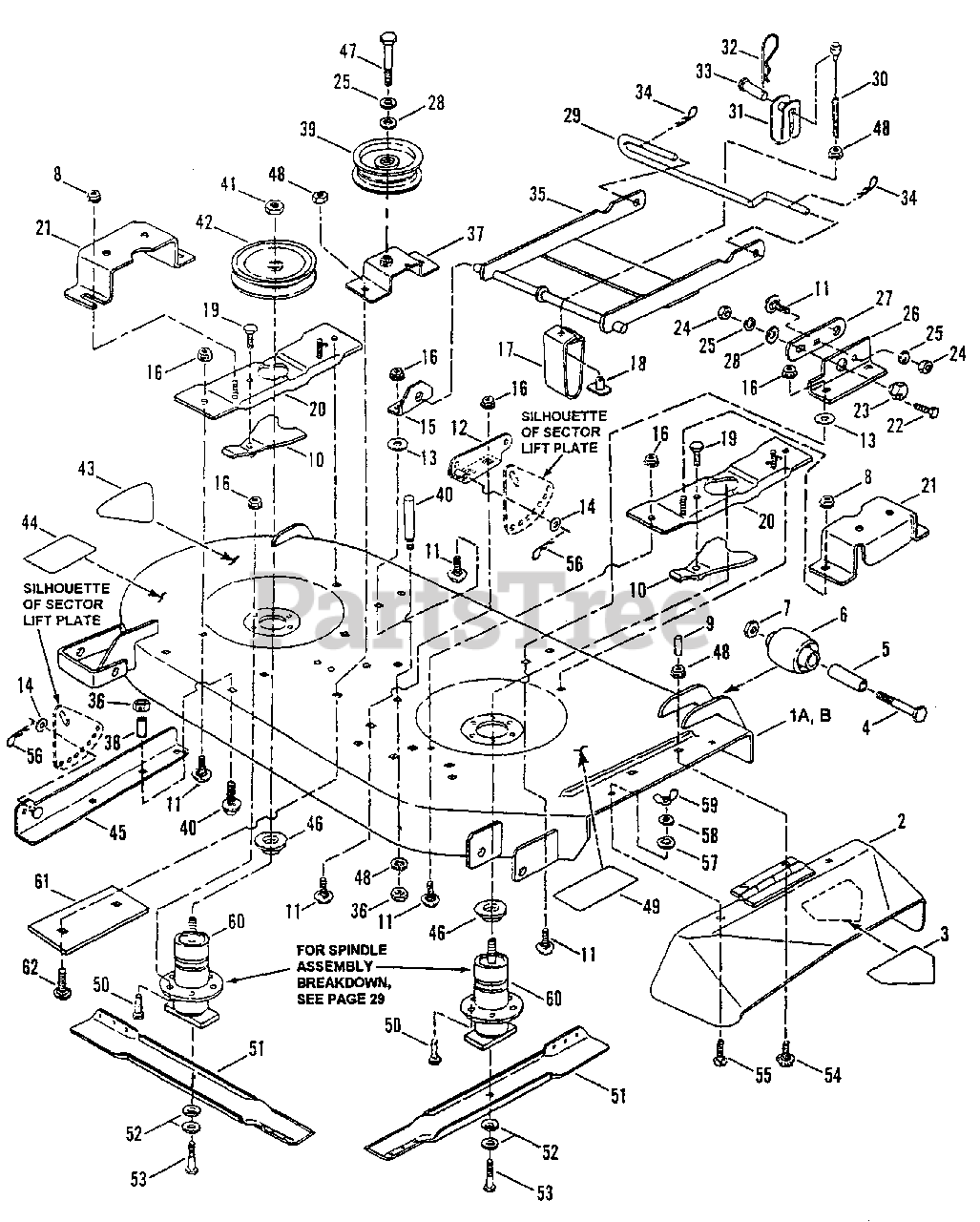

42" Cutting Deck Parts Diagram

  • Title

1A

Snapper 7061952

ASSEMBLY, Deck, 42" Cutting (Complete)

Note: Was 61842 or 61843

$

$

Not available

1B

Snapper 7061958

ASSEMBLY, Deck, 42" Cutting (Includes Decals & Deflector)

$

$

Not available

2

Snapper 7051401

DEFLECTOR, Side Discharge
(Superseded to 7051401YP)

Note: (Includes item 3)

$159.99

$

Usually ships in 2-12 days

0

3

Snapper 7013010

DECAL-DANGER
(Superseded to 7013010SM)

Note: Was 26831

$9.49

$

In Stock, Qty 11

0

4

Snapper 7091532

SCREW, 3/8-24 x 3-3/4" Hex Head Cap Grade 5
(Superseded to 703876)

$6.99

$

In Stock, Qty 10

0

5

Snapper 7015272

SPACER
(Superseded to 7015272YP)

$7.49

$

Usually ships in 2-12 days

0

6

Snapper 7019190

WHEEL, Gage
(Superseded to 7019190YP)

$11.99

$

Usually ships in 2-12 days

0

7

Snapper 7090289

NUT, 3/8-24 Hex Center Lock, Grade 5 or B
(Superseded to 703458)

Note: Was 91600

$4.99

$

In Stock, Qty 14

0

8

Snapper 7091601

NUT, 5/16-18 Hex Fl. Lk Gr.5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7023606

CAP, Vinyl
(Superseded to 7023606YP)

$3.99

$

In Stock, only 2 left!

0

10

Snapper 7051747

ASSEMBLY, Spindle Lock
(Superseded to 7051747YP)

$23.99

$

In Stock, only 1 left!

0

11

Snapper 7091547

BOLT, 3/8-16 x 3/4" Carr. Gr. 2
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7041252

BRACKET, Lift (Right Side)
(Superseded to 7041252YP)

$26.99

$

Usually ships in 2-12 days

0

12

Snapper 7041259

BRACKET, Lift (Right Side)

Note: (Model LT160H42CBV2 Only)

$

$

Not available

13

Snapper 7090517

WASHER, Flat 3/8
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

14

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7032297

BRACKET, Front Hanger (Left Side)

$

$

Not available

16

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

17

Snapper 7038043

BRACKET, Front Lift Arm Hanger
(Superseded to 7038043YP)

$31.99

$

Usually ships in 2-12 days

0

18

Snapper 7091567

T-NUT, 5/16-18

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7027198

BOLT, 3/8-16 x 1" Hx. Flange Lk.
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, only 3 left!

0

20

Snapper 7052487

ASSEMBLY, Spindle Brace
(Superseded to 7052487YP)

$63.99

$

Usually ships in 2-12 days

0

21

Snapper 7034409

GUARD, Pulley
(Superseded to 7034409YP)

$26.99

$

Usually ships in 2-12 days

0

22

Snapper 7091304

SCREW, 3/8-16 x 1" HHC, Gr.5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

23

Snapper 7015012

ECCENTRIC, Leveling
(Superseded to 7015012YP)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

26

Snapper 7038382

BRACKET, Front (Right Side)

$

$

Not available

27

Snapper 7032432

LINK, Adjustment

$

$

Not available

28

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7027471

PIN, Deck Hanger

$

$

Not available

30

Snapper 7022893

CABLE, Deck Lift
(Superseded to 7022893YP)

$9.99

$

In Stock, only 2 left!

0

31

Snapper 7032276

CLEVIS, Lift Cable
(Superseded to 7032276YP)

$12.99

$

In Stock, only 4 left!

0

32

Snapper 7091503

PIN, Hair, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

33

Snapper 7029687

PIN, Clevis, 3/8 x 1-1/16"
(Superseded to 7029687YP)

$7.99

$

In Stock, only 1 left!

0

34

Snapper 7091596

PIN, Hair, .148 x 2.62"
(Superseded to 7091596YP)

$4.49

$

Usually ships in 2-12 days

0

35

Snapper 7042469

ASSEMBLY, Front Hanger
(Superseded to 7042469YP)

$276.99

$

Usually ships in 2-12 days

0

36

Snapper 7091585

NUT, 3/8 - 16 Hex Ctr Lk Gr. 5 or B
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

37

Snapper 7053567

BRACKET, Idler
(Superseded to 7053567YP)

$22.99

$

Usually ships in 2-12 days

0

38

Snapper 7028942

SLEEVE, 1/2 x 13/32 x 3/8
(Superseded to 7028942YP)

$7.99

$

Usually ships in 2-12 days

0

39

Snapper 7018574

PULLEY, Idler 4-1/8"
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 20+

0

40

Snapper 7090614

BOLT, 3/8-16x1-1/2 Hx. Fl. Lk. Gr. 5
(Superseded to 7090614YP)

$3.49

$

Usually ships in 2-12 days

0

41

Snapper 7074467

NUT, 3/4-16 Hex Jam
(Superseded to 7074467SM)

Note: Was 10027

$4.49

$

In Stock, Qty 10

0

42

Snapper 7024863

PULLEY, Spindle
(Superseded to 7024863BMYP)

$42.99

$

Usually ships in 2-12 days

0

43

Snapper 7024910

DECAL, 42" Deck

$

$

Not available

44

Snapper 7014852

DECAL - CAUTION (Rotating Blades)
(Superseded to 7101665YP)

Note: Was 16973

$14.99

$

In Stock, only 3 left!

0

45

Snapper 7041253

BRACKET, Deck Lift (Left Side)
(Superseded to 7041253YP)

$46.99

$

Usually ships in 2-12 days

0

45

Snapper 7041257

BRACKET, Deck Lift (Left Side)

Note: (Model LT160H42CBV2 Only)

$

$

Not available

46

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 20+

0

47

Snapper 7091580

BOLT, 3/8-16 x 1-3/4 Hx. Fl. Lk.
(Superseded to 703812)

$4.49

$

Usually ships in 2-12 days

0

48

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock Grade 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

49

Snapper 7014852

DECAL - CAUTION (Deflector in Place)
(Superseded to 7101665YP)

$14.99

$

In Stock, only 3 left!

0

50

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

51

Snapper 7026691

BLADE, 21" Cutter
(Superseded to 7026691BZYP)

$23.99

$

In Stock, Qty 20+

0

52

Snapper 7012063

WASHER, Cone, 13/32 x 1-13/32 Diameter
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

53

Snapper 7090824

SCREW, 3/8-24 x 1-1/4" Hex Head Cap, Grade 5
(Superseded to 7090824YP)

$4.99

$

In Stock, Qty 9

0

54

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, Grade 5
(Superseded to 703800)

$3.99

$

In Stock, Qty 12

0

55

Snapper 7090799

BOLT, 5/16-18 x 5/8" Carr. Gr. 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

56

Snapper 7091503

PIN, Hair, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

57

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

58

Snapper 7091315

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

59

Snapper 7091537

WING-NUT, 5/16-18
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

60

Snapper 7051914

ASSEMBLY, Spindle

Note: Was 59723

$

$

Not available

61

Snapper 7034202

PLATE, Support

$

$

Not available

62

Snapper 7027168

SCREW, 5/16-18 x 1" Hex Head Cap, Grade 5
(Superseded to 703585)

Note: Was 90636

$4.99

$

In Stock, only 1 left!

0
