LT 160H42CBV (80842) - Snapper 42" Lawn Tractor, 16hp Transmission Group (Hydro-Drive) Parts Diagram

42" Lawn Tractor, 16hp

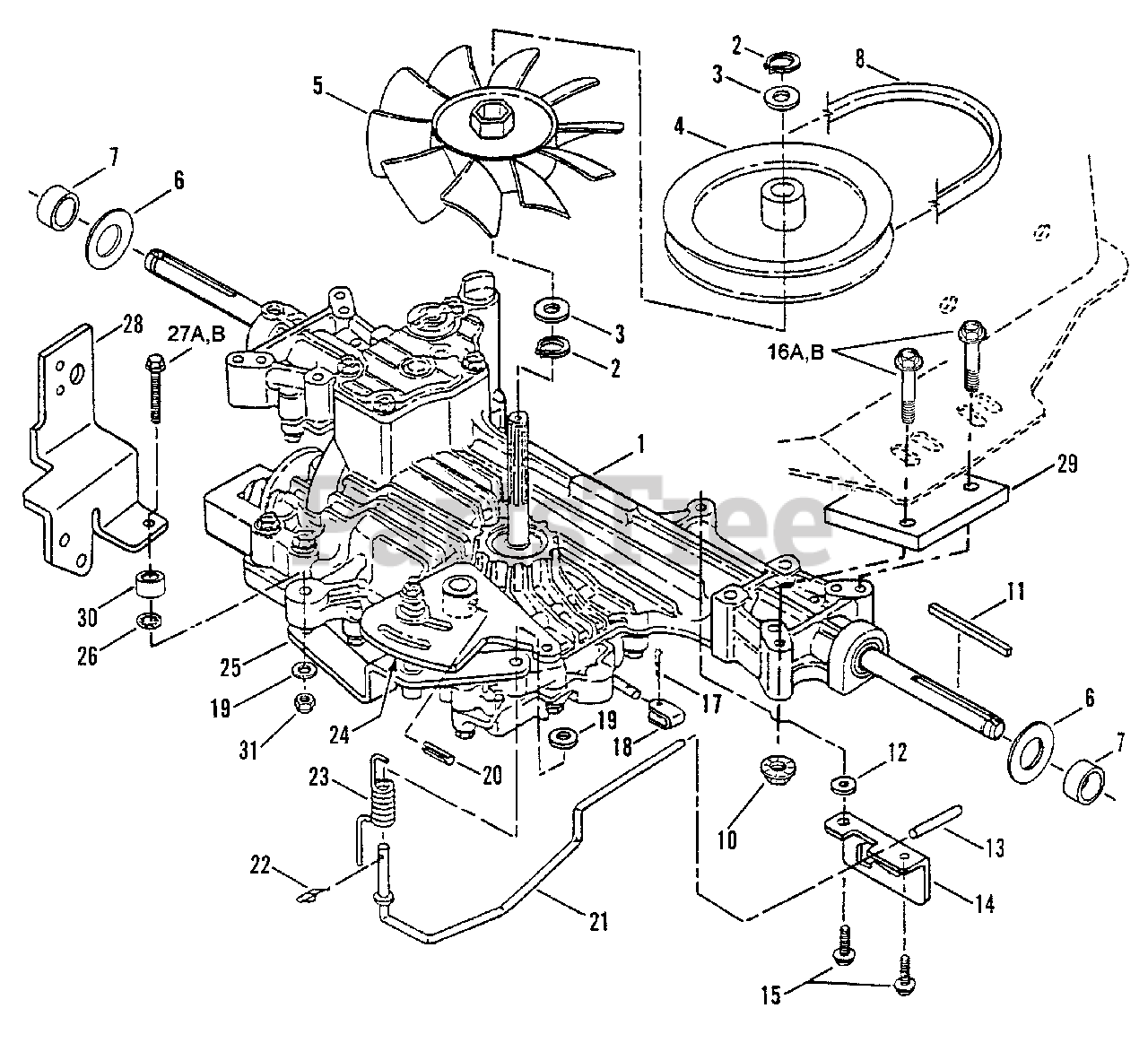

Transmission Group (Hydro-Drive) Parts Diagram

  • Title

1

Snapper 7028668

TRANSAXLE, Hydro Drive, Tuff-Torq Model K50
(Superseded to 7028668YP)

$1367.99

$

Usually ships in 2-12 days

0

2

Snapper 7028078

RING, External Retaining 13.8mm

$4.49

$

Usually ships in 2-12 days

0

3

Snapper 7028084

WASHER, Fan/Hub

$2.49

$

Usually ships in 2-12 days

0

4

Snapper 7028077

PULLEY, Drive, 4.5" O.D. Splinned Hub
(Superseded to 7028077YP)

$70.99

$

In Stock, only 1 left!

0

5

Snapper 7028076

FAN
(Superseded to 7028076YP)

$17.99

$

In Stock, only 1 left!

0

6

Snapper 7034453

WASHER, Flat, 1/8 x 25/32 I.D. x 1-1/2" O.D.
(Superseded to 7034453YP)

$5.49

$

Usually ships in 2-12 days

0

7

Snapper 7028049

SPACER

$

$

Not available

8

Snapper 7028585

BELT, Traction Drive
(Superseded to 7028585YP)

$64.99

$

Usually ships in 2-12 days

0

10

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock Grade 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Snapper 7017173

KEY, Square, 3/16 x 3/16 x 2-1/2"
(Superseded to 7017173YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7032070

WASHER, Flat, 3/4" O.D.
(Superseded to 7032070YP)

$4.99

$

In Stock, only 1 left!

0

13

Snapper 7034137

GRIP, Roll Release
(Superseded to 7034137YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7034139

DETENT, Roll Release

$

$

Not available

15

Snapper 7091284

SCREW, 3/8-16 x 1-3/4" Self-Tapping

$

$

Currently unavailable

16A

Snapper 7090702

BOLT, 5/16-18 x 2-1/4" Hex Flange Lock Grade 2
(Superseded to 7090702YP)

$3.99

$

Usually ships in 2-12 days

0

16B

Snapper 7090831

SCREW, 5/16-18 x 2-3/4, Grade 5
(Superseded to 7090831YP)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 7091516

COTTER-PIN, 5/32 x 1"
(Superseded to 703984)

$4.49

$

In Stock, Qty 14

0

18

Snapper 7034154

LINK, Roll Release
(Superseded to 7034154YP)

$9.99

$

In Stock, only 1 left!

0

19

Snapper 7090188

WASHER, 11/32 x 11/16 x 1/16
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 2 left!

0

20

Snapper 7034146

ROLL-PIN, 6mm x 32mm
(Superseded to 7034146YP)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7034140

WIREFORM, Roll Release
(Superseded to 7034140YP)

$6.99

$

Usually ships in 2-12 days

0

22

Snapper 7034162

COTTER-PIN, 5/16 Self-Locking
(Superseded to 704030)

$4.49

$

In Stock, only 2 left!

0

23

Snapper 7034155

SPRING, Torsion (Roll Release)
(Superseded to 7034155YP)

$7.99

$

Usually ships in 2-12 days

0

24

Snapper 7053386

ASSEMBLY, Speed Control/Friction
(Superseded to 7053386YP)

Note: (Includes Part No's. Listed Below)

$96.99

$

Usually ships in 2-12 days

0

Snapper 7041612

WELDMENT, Speed Control Arm (Not shown, part of #24)

$

$

Not available

Snapper 7028036

SPRING (Not shown, part of #24)
(Superseded to 7028036YP)

$6.99

$

Usually ships in 2-12 days

0

Snapper 7034192

STUD, Friction (Not shown, part of #24)

$

$

Not available

Snapper 7091619

NUT, 3/8-16 Hex Flange Top Lock (Not shown, part of #24)
(Superseded to 703333)

Note: Was 90593

$4.99

$

In Stock, Qty 20+

0

Snapper 7091331

WASHER, 1/8 x 13/32 I.D. x 1-1/2" O.D. (Not shown, part of #24)
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

Snapper 7034267

WASHER, Friction Pad (Not shown, part of #24)
(Superseded to 7034267YP)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 7053380

SUPPORT, Friction Stud Assembly
(Superseded to 7053380YP)

Note: (Includes Part No's. Listed Below)

$19.99

$

Usually ships in 2-12 days

0

Snapper 7012306

BUSHING, Flange (Not shown, part of #25)
(Superseded to 703973)

$5.99

$

In Stock, Qty 13

0

Snapper 7034178

SUPPORT, Friction Stud (Not shown, part of #25)
(Superseded to 7034178YP)

$19.99

$

Usually ships in 2-12 days

0

26

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

27A

Snapper 7091592

BOLT, 5/16-18 x 2" Hex Flange Lock, Grade 5
(Superseded to 704062)

$4.49

$

Usually ships in 2-12 days

0

27B

Snapper 7090702

BOLT, 5/16-18 x 2-1/4, Hex Flange Lock
(Superseded to 7090702YP)

Note: (Model LT160H42CBV2 Only)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 7034400

BRACKET, Spool

$

$

Not available

29

Snapper 7029951

SPACER, Axle

Note: (Model LT160H42CBV2 Only)

$

$

Not available

30

Snapper 7021740

SPACER, Torque, 3/8" Thick

Note: (Model LT160H42CBV2 Only)

$

$

Not available

31

Snapper 7091298

NUT, 5/16-18 Hex Lock (Esna)
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0
