LT 160H42CBV (80842) - Snapper 42" Lawn Tractor, 16hp Rear Wheels Parts Diagram

42" Lawn Tractor, 16hp

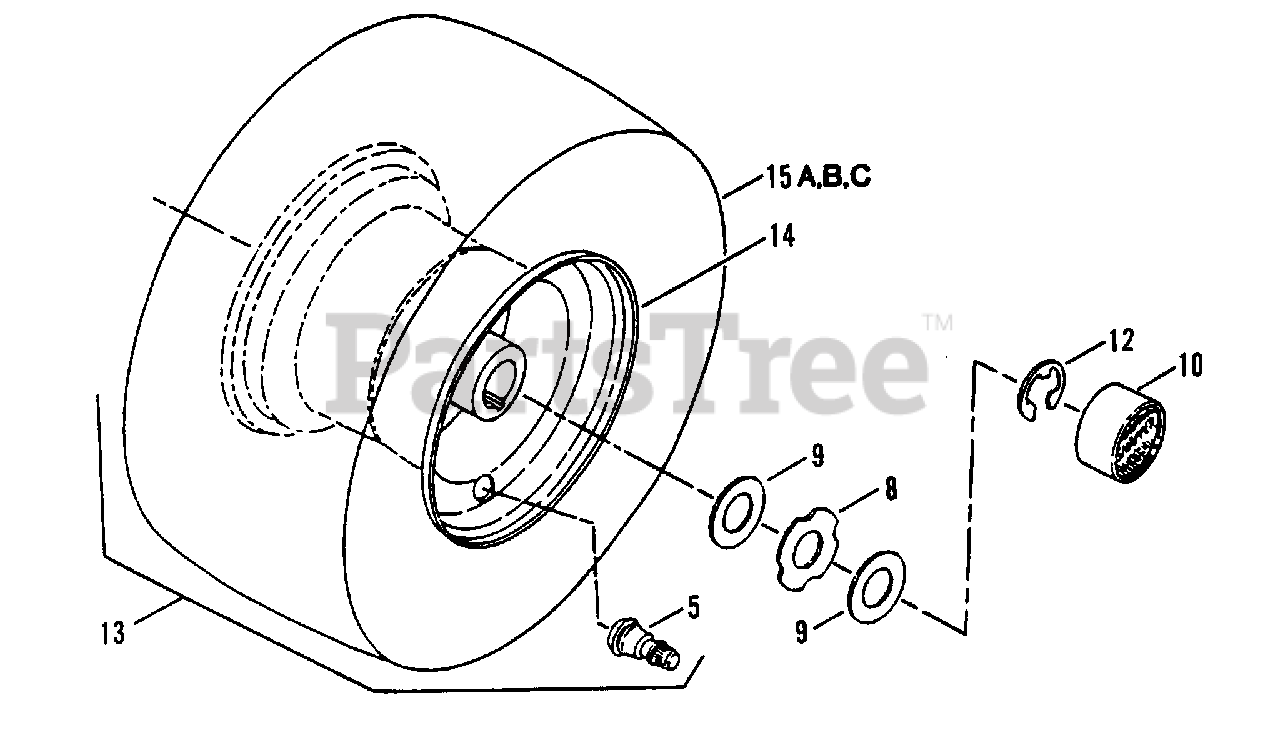

Rear Wheels Parts Diagram

  • Title

5

Snapper 7012234

VALVE, Air (Snap-In)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

8

Snapper 7029618

WASHER, Hub-Cap Retaining

$3.99

$

In Stock, only 3 left!

0

9

Snapper 7029617

WASHER, Flat, 1/16 x 49/64 1.9. x 1-5/16" O.D.
(Superseded to 7029617YP)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7011022

HUB-CAP
(Superseded to 7011022YP)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7010746

RING,External Retaining, 3/4"
(Superseded to 703975)

Note: Was 29738

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7052846

ASSEMBLY, Rear Tire & Rim
(Superseded to 7058518YP)

Note: (Model LT145H38CBV)(Includes 5, 14, & 15A)

$208.99

$

Usually ships in 2-12 days

0

13

Snapper 7053563

ASSEMBLY, Rear Tire & Rim
(Superseded to 7053563YP)

Note: (Model LT160H42CBV)(Includes items 5, 14, & 15B)

$205.99

$

Usually ships in 2-12 days

0

13

Snapper 7052958

ASSEMBLY, Rear Tire & Rim

Note: (Model LT160H42CBV2)(Includes items 5, 14, & 15C)

$

$

Currently unavailable

14

Snapper 7024454

RIM, 8 x 7.00
(Superseded to 7024454YP)

Note: (Models LT145H38CBV, LT160H42CBV, & LT160H42CBV2)

$122.99

$

Usually ships in 2-12 days

0

15A

Snapper 7072705

TIRE, 18 x 8.50
(Superseded to 7072705YP)

Note: Was 26113 (Model LT145H38CSVJ)

$125.99

$

Usually ships in 2-12 days

0

15B

Snapper 7029589

TIRE, 18 x 9.50

Note: (Model LT160H42C8V)

$

$

Currently unavailable

15C

Snapper 7072707

TIRE, 20 x 10.00
(Superseded to 1722826SM)

Note: (Model LT160H42CBV2)

$170.99

$

Usually ships in 2-12 days

0
