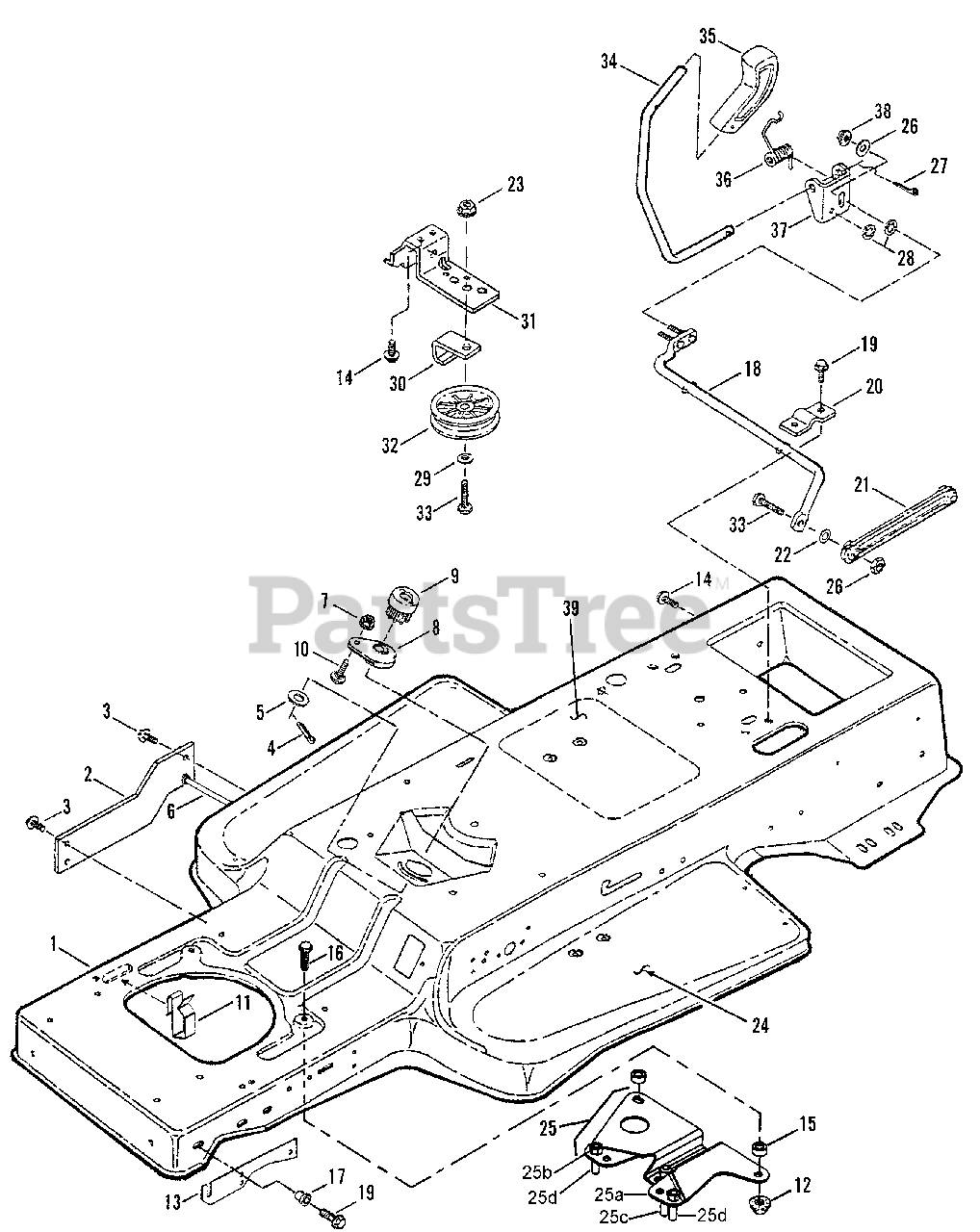

LT 160H42CBV (80842) - Snapper 42" Lawn Tractor, 16hp Blade Engagement & Transmission Controls Parts Diagram

42" Lawn Tractor, 16hp

Blade Engagement & Transmission Controls Parts Diagram

  • Title

1

Snapper 7034705

FRAME, Tractor

$

$

Currently unavailable

2

Snapper 7046899

BRACE, Frame
(Superseded to 7046899YP)

Note: Was 34842

$16.99

$

Usually ships in 2-12 days

0

3

Snapper 7091001

SCREW, 5/16-18 x 5/8" Truss Head (Torx)
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

4

Snapper 7091598

PIN, 1/8 x 3/4" Cotter
(Superseded to 703958)

$4.49

$

In Stock, only 4 left!

0

5

Snapper 7014296

WASHER, 1/2 Shim
(Superseded to 7014296YP)

$4.49

$

In Stock, only 4 left!

0

6

Snapper 7028934

GUIDE, Belt

$

$

Currently unavailable

7

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, Grade 5
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

8

Snapper 7052562

ASSEMBLY, Steering Adjuster
(Superseded to 7052562YP)

$43.99

$

Usually ships in 2-12 days

0

9

Snapper 7022368

GEAR, Steering Pinion
(Superseded to 7022368YP)

$20.99

$

Usually ships in 2-12 days

0

10

Snapper 7091573

BOLT, 1/4-20 x 5/8" Short Neck Carriage, Grade 5
(Superseded to 7091573YP)

$4.49

$

In Stock, only 1 left!

0

11

Snapper 7028630

CLIP, Wire

$

$

Currently unavailable

12

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

13

Snapper 7033488

BRACKET, Hood Pivot
(Superseded to 7033488YP)

Note: (Models: LT145H38CBV & LT160H42CBV Only)

$17.99

$

Usually ships in 2-12 days

0

14

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tap.
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

15

Snapper 7028620

SPACER, 11/32 x 5/8 x 5/16
(Superseded to 7028620SM)

$4.49

$

In Stock, only 1 left!

0

16

Snapper 7090209

CAPSCREW, 5/16 - 18 x 1" Hex Head Grade 2
(Superseded to 7090209YP)

$2.99

$

Usually ships in 2-12 days

0

17

Snapper 7024616

BUSHING, Flange
(Superseded to 7024616YP)

$

$

Not available

18

Snapper 7052920

ASSEMBLY, Shift Lever (Lower)
(Superseded to 7052920YP)

$23.99

$

Usually ships in 2-12 days

0

19

Snapper 7091524

SCREW, 5/16-18 x 1-1/4" Self-Tap.
(Superseded to 703167)

Note: Was 91151

$3.99

$

In Stock, only 3 left!

0

20

Snapper 7033554

CLIP 1/2" Dia.

$

$

Not available

21

Snapper 7024286

LINK, Shift Lever (Upper)
(Superseded to 7024286YP)

$22.99

$

Usually ships in 2-12 days

0

22

Snapper 7024180

SPACER
(Superseded to 7024180YP)

$7.49

$

Usually ships in 2-12 days

0

23

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, Grade 5 or B
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

24

Snapper 7028203

PAD, Foot, Rubber Deluxe
(Superseded to 7028203YP)

$22.99

$

Usually ships in 2-12 days

0

25

Snapper 7053900

ASSEMBLY, Anti-spin/Belt Guide

Note: (Not Available)

$

$

Currently unavailable

25A

Snapper 7073119

BRACKET, Anti Spin Guide
(Superseded to 7073119YP)

Note: Was 34846

$20.99

$

Usually ships in 2-12 days

0

25B

Snapper 7091575

HCLN, 5/16-18 YZ
(Superseded to 703164)

$3.49

$

In Stock, Qty 17

0

25C

Snapper 7028971

PIN, .31" O.D. x 2"
(Superseded to 7028971YP)

$8.99

$

Usually ships in 2-12 days

0

25D

Snapper 7028953

PIN, .31" O.D. x 1"
(Superseded to 7028953YP)

$5.49

$

Usually ships in 2-12 days

0

26

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

27

Snapper 7091516

PIN, 5/32 x 1" Cotter
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

28

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 6

0

29

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7033556

GUIDE, Pulley Belt
(Superseded to 7033556YP)

$9.99

$

Usually ships in 2-12 days

0

31

Snapper 7034332

SUPPORT, PTO Lever
(Superseded to 7034332YP)

$23.99

$

Usually ships in 2-12 days

0

32

Snapper 7024344

PULLEY, Idler
(Superseded to 7024344YP)

$39.99

$

Usually ships in 2-12 days

0

33

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Hd. Cap, Grade 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

34

Snapper 7023957

LEVER, Shift (Upper)
(Superseded to 7023957YP)

$38.99

$

Usually ships in 2-12 days

0

35

Snapper 7023656

KNOB, Deck Lift Lever
(Superseded to 7023656YP)

$5.99

$

In Stock, Qty 6

0

36

Snapper 7024069

SPRING, Shift Lever

$

$

Not available

37

Snapper 7033541

BRACKET, Shift Lever (Upper)
(Superseded to 7033541YP)

$12.99

$

Usually ships in 2-12 days

0

38

Snapper 7076978

NUT, 1/4-20 Hex Nylok
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

39

Snapper 7046557

DECAL, Instruction
(Superseded to 7046557YP)

Note: Was 28586

$18.99

$

Usually ships in 2-12 days

0
