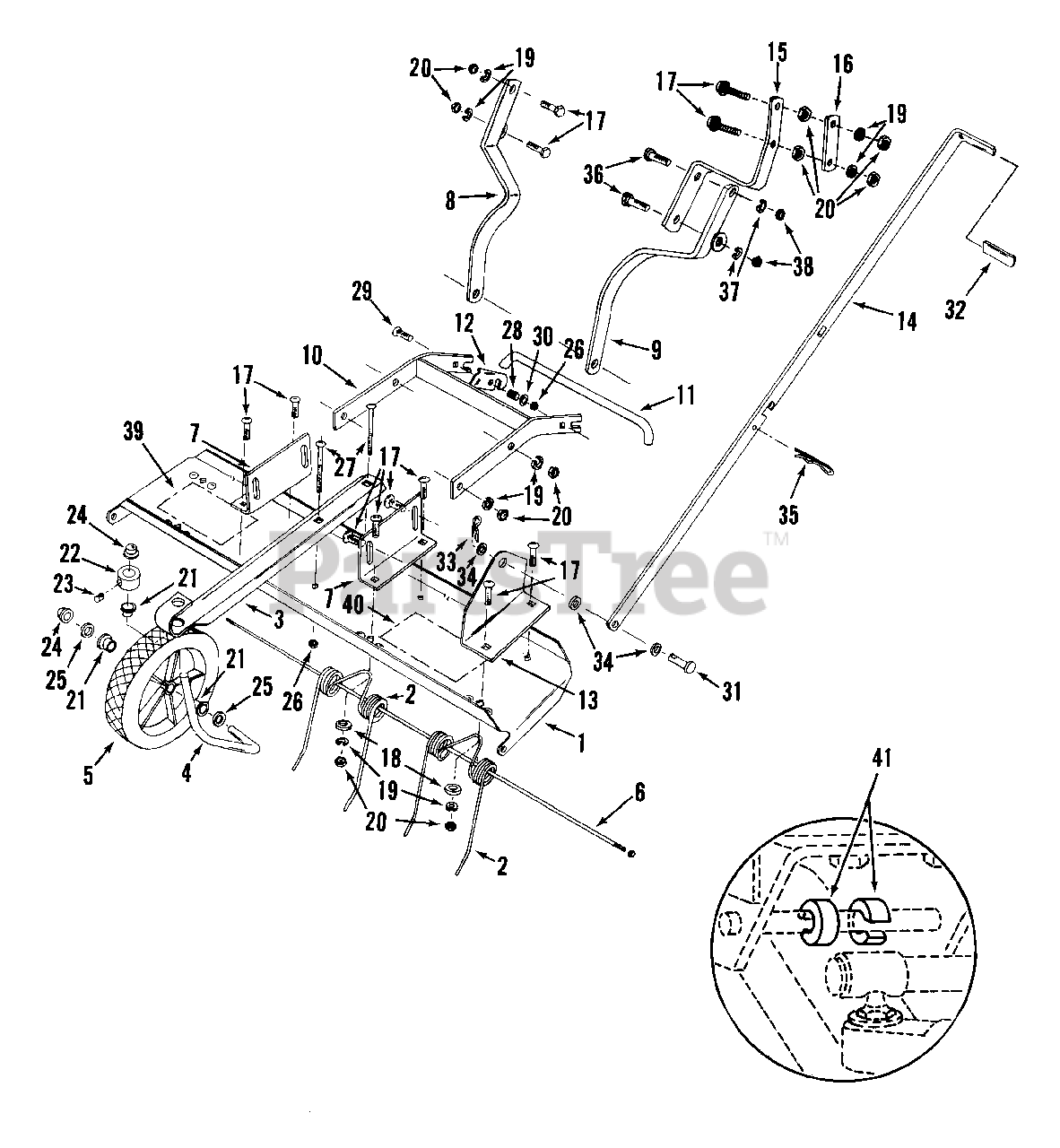

LT 16001 (89050) - Snapper Lawn Tractor, 16hp Thatcherizer (00803) Parts Diagram

Lawn Tractor, 16hp

Thatcherizer (00803) Parts Diagram

  • Title

1

Snapper 19947

TRAY, Tine

$

$

Currently unavailable

2

Snapper 7018491

TINE, Thatching
(Superseded to 7018491YP)

$17.99

$

In Stock, only 1 left!

0

3

Snapper 7018700

SUPPORT, Wheel

$

$

Not available

4

Snapper 7018493

AXLE
(Superseded to 7018493YP)

$43.99

$

Usually ships in 2-12 days

0

5

Snapper 7018189

WHEEL, Gauge

$

$

Not available

6

Snapper 7014110

ROD, Tine
(Superseded to 7014110YP)

$5.49

$

Usually ships in 2-12 days

0

7

Snapper 7014778

BRACKET, Frame Mounting
(Superseded to 7014778YP)

$11.99

$

Usually ships in 2-12 days

0

8

Snapper 7019750

BAR, Tractor Mounting, RH
(Superseded to 7019750YP)

$41.99

$

Usually ships in 2-12 days

0

9

Snapper 7019749

BAR, Tractor Mounting, LH
(Superseded to 7019749YP)

$41.99

$

Usually ships in 2-12 days

0

10

Snapper 7014781

ASSEMBLY, Main Frame Weldment
(Superseded to 7014781YP)

$56.99

$

Usually ships in 2-12 days

0

11

Snapper 7014783

ROD, Mounting
(Superseded to 7014783YP)

$12.99

$

Usually ships in 2-12 days

0

12

Snapper 7014113

LATCH, Frame Mount

$

$

Not available

13

Snapper 18666

BRACKET, Lift

$

$

Currently unavailable

14

Snapper 7018664

HANDLE, Lift
(Superseded to 7018664YP)

$43.99

$

Usually ships in 2-12 days

0

15

Snapper 7018665

BRACKET, Lift Handle Support
(Superseded to 7018665YP)

$31.99

$

Usually ships in 2-12 days

0

16

Snapper 7014780

STRAP, Handle Retaining
(Superseded to 7014780YP)

$11.99

$

Usually ships in 2-12 days

0

17

Snapper 7091303

BOLT, 5/16-18 x 1" Square Neck Carriage, Grade 5
(Superseded to 703800)

Note: Was 90383

$3.99

$

In Stock, Qty 8

0

18

Snapper 7014098

WASHER, Reinforcing
(Superseded to 7014098SM)

$16.99

$

In Stock, only 2 left!

0

19

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7014342

BEARING, Nyliner
(Superseded to 7014342YP)

$6.49

$

In Stock, only 1 left!

0

22

Snapper 7014100

BUSHING, Wheel Adjustment
(Superseded to 7014100YP)

$18.99

$

In Stock, only 1 left!

0

23

Snapper 7014103

SCREW, 5/16-18 x 1/4" Set
(Superseded to 7014103YP)

$3.49

$

In Stock, only 1 left!

0

24

Snapper 7014101

NUT, 1/2" Push
(Superseded to 7014101YP)

$4.49

$

In Stock, only 2 left!

0

25

Snapper 7090250

WASHER, 1/2 SAE
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

26

Snapper 7091705

NUT, 1/4-20 Hex Top Lock
(Superseded to 704319)

Note: Was 90761

$3.49

$

Usually ships in 2-12 days

0

27

Snapper 7090015

BOLT, 1/4-20 x 1-3/4" Square Neck Carriage
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 7014114

SPRING, Compression
(Superseded to 7014114YP)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper 7090078

BOLT, 1/4-20 x1-1/4" Square Neck Carriage, Grade 2
(Superseded to 7090947YP)

$5.99

$

In Stock, Qty 5

0

30

Snapper 7091098

WASHER, 1/4 SAE
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7014779

PIN, 5/16 Clevis
(Superseded to 7014779YP)

$6.49

$

Usually ships in 2-12 days

0

32

Snapper 7014784

GRIP, Handle

$

$

Currently unavailable

33

Snapper 13113

COTTER, Hairpin

$

$

Currently unavailable

34

Snapper 7090692

WASHER, 5/16 SAE
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

35

Snapper 7012867

COTTER, Hairpin
(Superseded to 7012867YP)

$2.99

$

Usually ships in 2-12 days

0

36

Snapper 7091328

BOLT, 3/8-16 x 1-1/4" Hex Head Cap, Grade 5
(Superseded to 703871)

Note: Was 90143

$4.99

$

Usually ships in 2-12 days

0

37

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

38

Snapper 7091302

NUT, 3/8-16 Hex, Grade 5
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

39

Snapper 7014062

DECAL, Logo

$

$

Not available

40

Snapper 14785

DECAL, Adjustment

$

$

Currently unavailable

41

Snapper 7011780

RING, Spacer
(Superseded to 7011780YP)

$3.49

$

Usually ships in 2-12 days

0

Snapper 60648

BAG, Hardware for 60600

Note: (Incl items 17, 18, 19, 20, 25, 26, 27, 29, 30, 34, 36, 37, and 38)

$

$

Currently unavailable

Snapper 60656

BAG, Hardware for 60656

Note: (Incl items 12, 16, 21, 22, 23, 24, 28, 31, 32, 33, 35, and 41)

$

$

Currently unavailable

Snapper 7060600

N/A 1998 Thatcherizer

$

$

Currently unavailable
