LT 16001 (89050) - Snapper Lawn Tractor, 16hp Implement Lift Parts Parts Diagram

Lawn Tractor, 16hp

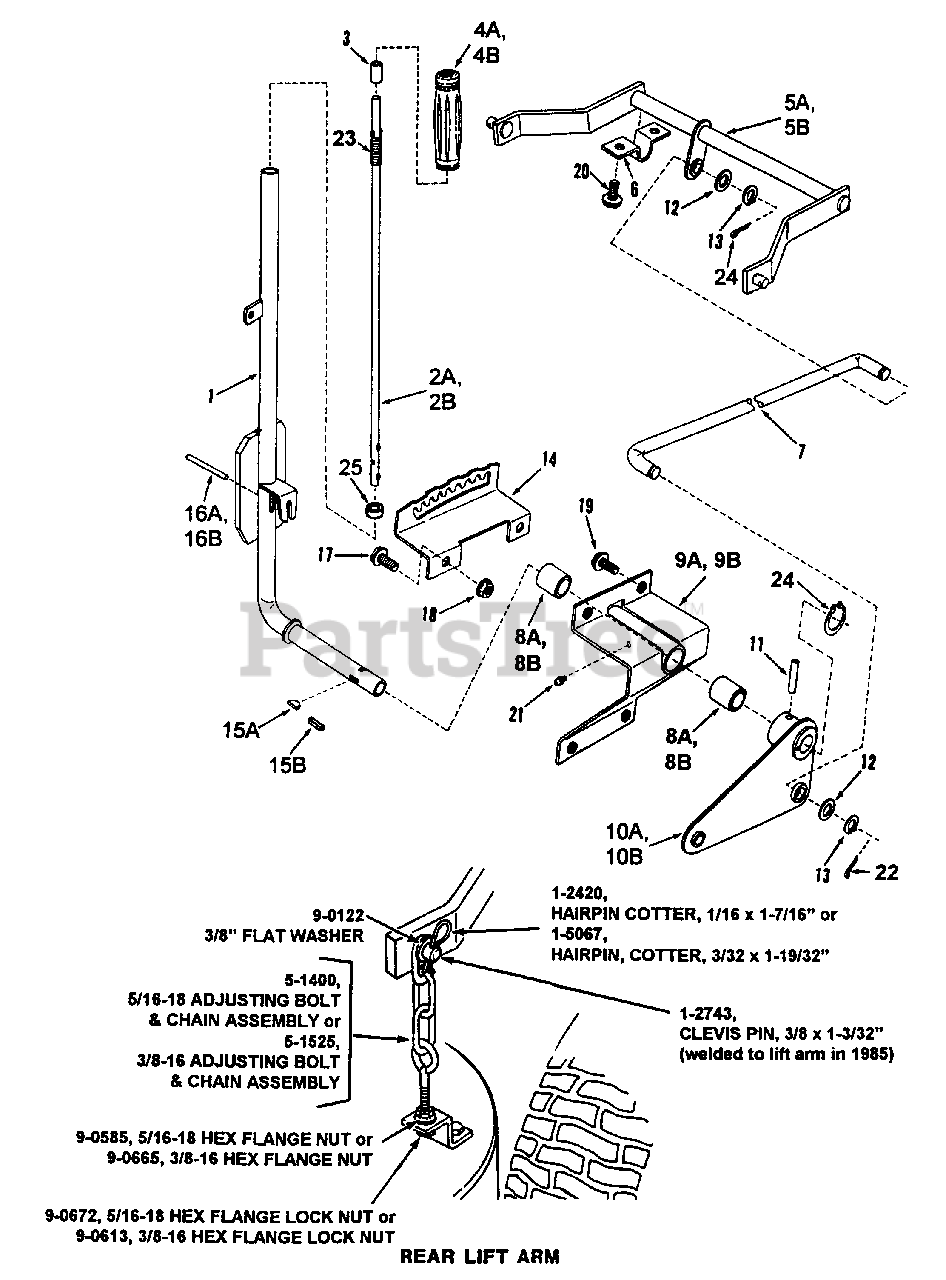

Implement Lift Parts Parts Diagram

  • Title

1

Snapper 7047868

ARM, Implement Lift Lever
(Superseded to 7047868YP)

$176.99

$

Usually ships in 2-12 days

0

2A

Snapper 7057324

ASSEMBLY, Plunger

$

$

Not available

2B

Snapper 7032435

ROD, Lift Lever (1985)

$

$

Not available

3

Snapper 7014361

CAP, Lift Release
(Superseded to 7014361YP)

$4.49

$

Usually ships in 2-12 days

0

4A

Snapper 7019541

GRIP, Handle

$

$

Not available

4B

Snapper 7013948

GRIP, Handle

$

$

Not available

5A

Snapper 7049703

ARM, Rear Lift (16-3/4" Wide)

$

$

Currently unavailable

5B

Snapper 7049725

ARM, Rear Lift (1985) (22" Wide)
(Superseded to 7049725YP)

$176.99

$

Usually ships in 2-12 days

0

6

Snapper 7032239

BRACKET, Hanger

$

$

Not available

7

Snapper 7032266

LIFT-ROD

$

$

Not available

8A

Snapper 7014628

BEARING, Sleeve
(Superseded to 7014628YP)

$3.49

$

Usually ships in 2-12 days

0

8B

Snapper 7018289

BEARING, Sleeve
(Superseded to 7018289YP)

$38.99

$

Usually ships in 2-12 days

0

9A

Snapper 51417

PIVOT ASSY, Lift Lever

$

$

Currently unavailable

9B

Snapper 7051523

PIVOT ASSY, Lift Lever
(Superseded to 7051523YP)

$119.99

$

Usually ships in 2-12 days

0

10A

Snapper 7047806

LEVER-ARM
(Superseded to 7047806YP)

$112.99

$

Usually ships in 2-12 days

0

10B

Snapper 7047874

LEVER-ARM
(Superseded to 7047874YP)

$74.99

$

Usually ships in 2-12 days

0

11

Snapper 7090845

ROLL-PIN, 5/16 x 1-1/2
(Superseded to 7090845YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7090250

WASHER, 1/2 SAE
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

13

Snapper 7014341

RING, Retaining
(Superseded to 703976)

Note: (Early Production)

$4.49

$

In Stock, Qty 10

0

14

Snapper 7038063

QUADRANT, Lift Lever

$

$

Not available

15A

Snapper 7013857

KEY, 1/4 x 7/8" Woodruff
(Superseded to 7013857YP)

$2.99

$

Usually ships in 2-12 days

0

15B

Snapper 7013250

KEY, 1/4 x 1/4 Square
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

16A

Snapper 7090881

PIN, 3/16 x 1-3/4"
(Superseded to 7090881YP)

Note: Was 90843

$12.99

$

Usually ships in 2-12 days

0

16B

Snapper 7090881

PIN,3/16 x 2" Groove
(Superseded to 7090881YP)

$12.99

$

Usually ships in 2-12 days

0

17

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

18

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

19

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Face Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

20

Snapper 7090815

SCREW, 3/8-16 x 1/2" Hex Washer Face Self-Tap
(Superseded to 703950)

Note: Was 90506

$5.49

$

In Stock, only 1 left!

0

21

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

22

Snapper 7091598

PIN, 1/8 x 1" Cotter (Late Production)
(Superseded to 703958)

Note: Was 90041

$4.49

$

In Stock, only 4 left!

0

23

Snapper 7014432

SPRING
(Superseded to 7014432YP)

$7.99

$

Usually ships in 2-12 days

0

24

Snapper 7015020

RING, 7/8 Ext. Retaining
(Superseded to 7015020YP)

$

$

Not available

25

Snapper 7015019

PLUG
(Superseded to 7015019YP)

$

$

Not available

?26

Snapper 7060720

KIT, Lift Handle Replacement

Note: (Includes items 1, 2B, & 25)

$

$

Currently unavailable

?27

Snapper 7060721

BAG, Hardware (60720)

Note: (Includes items 3, 4B, 15B, 16B, 23, 24, & 27)

$

$

Currently unavailable

12420

Snapper 7091503

Hairpin Cotter, 1/16 x 1-7/16"
(Superseded to 7091503SM)

Note: Was 12420

$3.99

$

In Stock, Qty 20+

0

15067

Snapper 7091503

Hairpin Cotter, 3/32 x 1-19/32"
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0

12743

Snapper 7012743

Clevis Pin, 3/8 x 1-3/32"

$

$

Currently unavailable

90122

Snapper 7090122

3/8" Flat Washer
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

51400

Snapper 7051400

5/16-18 Adjusting Bolt & Chain Assembly

$

$

Not available

51525

Snapper 7051749

3/8-16 Adjusting Bolt & Chain Assembly
(Superseded to 7053739YP)

Note: Was 51525

$14.99

$

Usually ships in 2-12 days

0

90585

Snapper 7091601

5/16-18 Hex Flange Nut
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

90665

Snapper 7090665

3/8-16 Hex Flange Nut
(Superseded to 703996)

$4.99

$

In Stock, Qty 11

0

90672

Snapper 7090672

5/16-18 Hex Flange Lock Nut
(Superseded to 7090672YP)

$2.99

$

Usually ships in 2-12 days

0

90613

Snapper 7091619

3/8-16 Hex Flange Lock Nut
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0
