LT 16001 (89050) - Snapper Lawn Tractor, 16hp Frame, Engine & Drive Parts Parts Diagram

Lawn Tractor, 16hp

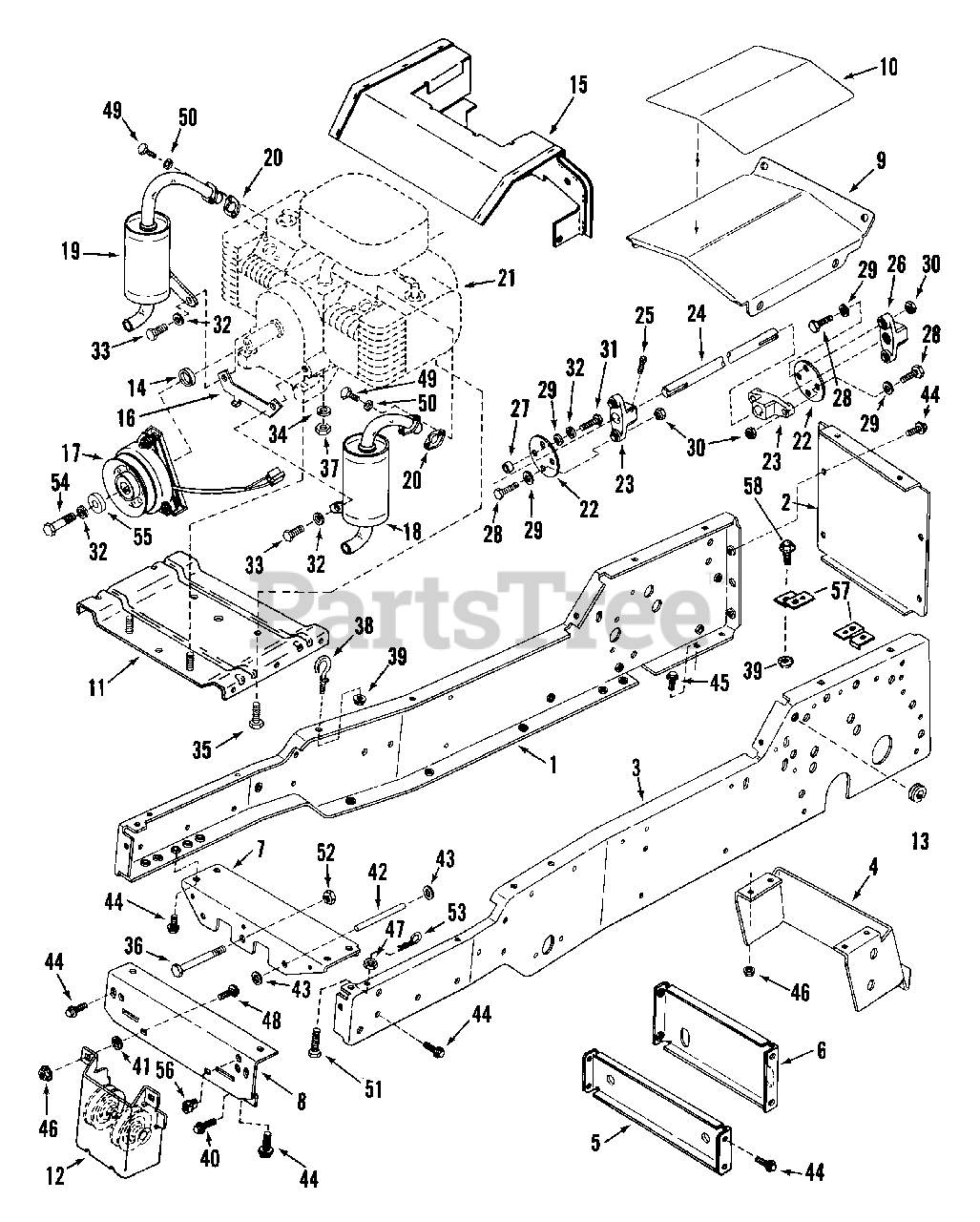

Frame, Engine & Drive Parts Parts Diagram

  • Title

1

Snapper 7035052

CHANNEL, R.H. Frame (NLA)

$

$

Currently unavailable

1

Snapper 7057374

CHANNEL, R.H. Frame '85 (NLA)

$

$

Currently unavailable

2

Snapper 7036070

PLATE, Rear Cover

$

$

Not available

2

Snapper 7038185

PLATE, Rear Cover '85
(Superseded to 7038185YP)

$41.99

$

Usually ships in 2-12 days

0

3

Snapper 7035051

CHANNEL, L.H. Frame (NLA)

$

$

Currently unavailable

3

Snapper 7057373

CHANNEL, L.H. Frame '85 (NLA)

$

$

Currently unavailable

4

Snapper 7035029

DRAWBAR

$

$

Currently unavailable

5

Snapper 7038528

BRACE, Forward

Note: Was 36078

$

$

Not available

6

Snapper 7036079

BRACE, Rear Cross (NLA)

$

$

Currently unavailable

7

Snapper 7057325

CHANNEL, Front Axle Support

Note: Was 38051

$

$

Not available

8

Snapper 7059726

A'SSY, Front Plate
(Superseded to 7059726YP)

Note: Was 59868

$54.99

$

Usually ships in 2-12 days

0

9

Snapper 7036067

COVER, Console
(Superseded to 7036067YP)

$67.99

$

Usually ships in 2-12 days

0

10

Snapper 7019744

DECAL, Console Cover

$

$

Not available

11

Snapper 7057342

BASE, Engine (NLA)

$

$

Currently unavailable

12

Snapper 7057362

ASSEMBLY, Mule Drive

Note: (See "Mule Drive Assembly" illustration and parts list for breakdown)

$

$

Currently unavailable

13

Snapper 7014856

GROMMET, Split

$

$

Not available

14

Snapper 7028641

SPACER, 1" x 1 3/8 x .30" (PM)
(Superseded to 7028641YP)

Note: Was 21960

$

$

Not available

15

Snapper 7059637

ASS'Y, Heat Shield
(Superseded to 7059637YP)

$222.99

$

Usually ships in 2-12 days

0

16

Snapper 7040528

BRACKET, Clutch Retainer

Note: Was 32447

$

$

Not available

17

Snapper 7053679

KIT, Electric Clutch
(Superseded to 7053679YP)

Note: (See "Electric Clutch Assembly" illustration and parts list for breakdown)

$396.99

$

Usually ships in 2-12 days

0

18

Snapper 7019741

MUFFLER, B&S 16HP Engine LH

$

$

Currently unavailable

19

Snapper 7019742

MUFFLER, B&S 12HP Engine RH

$

$

Currently unavailable

20

Snapper 7014802

GASKET, Exhaust
(Superseded to 7014802YP)

$2.99

$

Usually ships in 2-12 days

0

21

* ENGINE, Briggs 16 HP Mod 402417-0609-01

$

$

Not available

22

Snapper 7014338

DISC, Flex Coupling
(Superseded to 7014338YP)

$74.99

$

In Stock, Qty 9

0

23

Snapper 7018626

HUB, Flex Coupling
(Superseded to 7018626YP)

$317.99

$

Usually ships in 2-12 days

0

24

Snapper 7022041

SHAFT, Drive (22.62 x.75)
(Superseded to 7022041YP)

Note: Was 21944

$42.99

$

Usually ships in 2-12 days

0

25

Snapper 7090848

SET-SCREW, 5/16-18 x 1/2"
(Superseded to 7090848SM)

$10.99

$

In Stock, only 1 left!

0

26

Snapper 7018584

HUB, Flexible Coupling (Threaded center)
(Superseded to 7018584YP)

$68.99

$

Usually ships in 2-12 days

0

27

Snapper 7014803

SPACER, Flexible Coupling
(Superseded to 7014803YP)

$45.99

$

In Stock, only 1 left!

0

28

Snapper 7090138

SCREW, 3/8-16 x 1" H HC
(Superseded to 7090138YP)

$3.99

$

Usually ships in 2-12 days

0

29

Snapper 7032070

WASHER, 3/8" Flat
(Superseded to 7032070YP)

$4.99

$

In Stock, only 1 left!

0

30

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

31

Snapper 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap, Grade 5
(Superseded to 703871)

Note: Was 90143

$4.99

$

Usually ships in 2-12 days

0

32

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

33

Snapper 7090603

SCREW, 3/8-16 x 7/8" Hex Head Cap

$2.99

$

In Stock, only 1 left!

0

34

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

35

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Head Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

36

Snapper 7090826

SCREW, 1/2-20 x 4" Hex Head Cap, Grade 5

$4.49

$

In Stock, only 1 left!

0

37

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

38

Snapper 7014438

HOOK, Hood Latch
(Superseded to 7014438YP)

$8.49

$

Usually ships in 2-12 days

0

39

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

40

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

41

Snapper 7013847

RETAINER, 3/8 Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

42

Snapper 7032298

STOP, Axle

$

$

Not available

43

Snapper 7013946

RETAINER, 3/8 Shaft
(Superseded to 7013946YP)

$3.99

$

Usually ships in 2-12 days

0

44

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

45

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

46

Snapper 7091619

NUT, 3/8-16 Hex FL Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

47

Snapper 7090578

NUT, 1/4-20 Hex Top Lock Jam

$

$

Not available

48

Snapper 7091547

BOLT, 3/8-16 x 3/4" Square Neck Carriage
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

49

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Hex Head Cap
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 10

0

50

Snapper 7090052

WASHER, 1/4 Split Lock
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

51

Snapper 7021784

BOLT, 1/4-20 Hex Head Drilled

$

$

Not available

52

Snapper 7090393

NUT, 1/2-20 Hex Nyloc
(Superseded to 7090393YP)

$3.49

$

Usually ships in 2-12 days

0

53

Snapper 7012431

PIN, 1/4 Hair
(Superseded to 7012431SM)

$2.99

$

Usually ships in 2-12 days

0

54

Snapper 7090523

SCREW, 3/8-24 x 1-5/8" Hex Cap, Grade 5

$

$

Not available

55

Snapper 7032011

WASHER, Pull Bar

$

$

Currently unavailable

56

Snapper 7014804

RELIEF, Strain
(Superseded to 7014804YP)

$3.99

$

Usually ships in 2-12 days

0

57

Snapper 7032433

BRACKET, Rear Fender Mounting (NLA)

$

$

Currently unavailable

58

Snapper 7091303

BOLT, 5/16-18 x 1" Hex Flange Lock Bolt
(Superseded to 703800)

Note: Was 90208

$3.99

$

In Stock, Qty 7

0
