LT 16001 (89050) - Snapper Lawn Tractor, 16hp 42" Dozer (00802) (P/N 60629) Parts Diagram

Lawn Tractor, 16hp

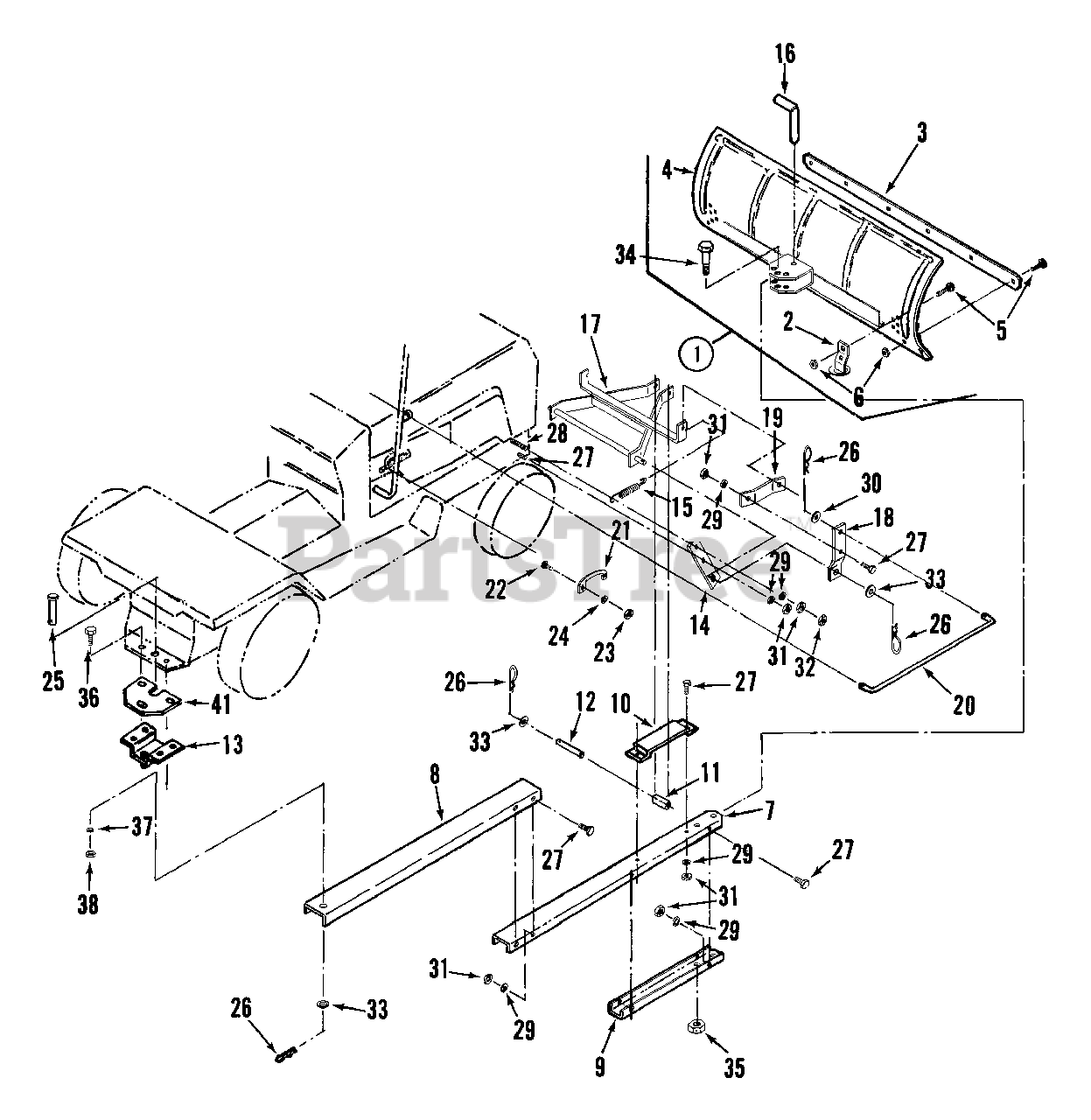

42" Dozer (00802) (P/N 60629) Parts Diagram

  • Title

1

Snapper 7057361

ASSEMBLY, 42" Blade

Note: (Includes items 2 thru 6)

$

$

Currently unavailable

2

Snapper 7040445

STRUCTURE, Slide
(Superseded to 7040445YP)

$84.99

$

In Stock, only 2 left!

0

3

Snapper 7038145

SCRAPER
(Superseded to 7038145YP)

$74.99

$

Usually ships in 2-12 days

0

4

Snapper 7047859

BLADE

$

$

Currently unavailable

5

Snapper 7091923

BOLT, 3/8-16 x 3/4" Square Neck Carriage, Gr. 2
(Superseded to 7091923SM)

Note: Was 90136

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, Grade B or 5
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 4 left!

0

7

Snapper 7036113

BEAM, Front

$

$

Not available

8

Snapper 7036114

BEAM, Rear

$

$

Currently unavailable

9

Snapper 7038147

PLATE, Front Hitch

$

$

Not available

10

Snapper 7038148

BRACKET, Lift

$

$

Not available

11

Snapper 7021940

ROLLER, Lift
(Superseded to 7021940YP)

$12.99

$

Usually ships in 2-12 days

0

12

Snapper 7021941

PIN, Lift Roller
(Superseded to 7021941YP)

$42.99

$

Usually ships in 2-12 days

0

13

Snapper 7040521

HITCH WELDMENT, Rear Yoke
(Superseded to 7040521YP)

$77.99

$

Usually ships in 2-12 days

0

14

Snapper 7032390

PLATE, Side Support

$

$

Not available

15

Snapper 7014405

SPRING, Lift Assist

$

$

Not available

16

Snapper 7032391

PIN, Latch

$

$

Not available

17

Snapper 7049718

STRUCTURE, Lift Yoke
(Superseded to 7049718YP)

$364.99

$

Usually ships in 2-12 days

0

18

Snapper 7038152

ARM, Lift

$

$

Not available

19

Snapper 7038150

LINK

$

$

Not available

20

Snapper 7021938

ROD, Operating
(Superseded to 7021938YP)

$68.99

$

Usually ships in 2-12 days

0

21

Snapper 7032397

PLATE, Quadrant Lockout
(Superseded to 7032397YP)

Note: (Includes Items 22 thru 24)

$42.99

$

Usually ships in 2-12 days

0

22

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Head Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

24

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

25

Snapper 7011768

PIN, 1/2 x 2" Clevis
(Superseded to 7011768YP)

$5.49

$

Usually ships in 2-12 days

0

26

Snapper 7091596

PIN, Hair Cotter
(Superseded to 7091596YP)

Note: Was 13844

$4.49

$

Usually ships in 2-12 days

0

27

Snapper 7091304

SCREW, 3/8-3/8-16 x 1" Hex Head Cap, Grade 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

28

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex head Cap, Grade 5
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, only 1 left!

0

29

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

30

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

31

Snapper 7091302

NUT, 3/8-16 Hex, Grade 5
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

32

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, Grade B or 5
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 4 left!

0

33

Snapper 7090250

WASHER, 1/2 Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

34

Snapper 7090017

SCREW, 1/2-20 x 2-3/4" Hex Head Cap
(Superseded to 7090017YP)

$3.49

$

Usually ships in 2-12 days

0

35

Snapper 7090393

NUT, 1/2-20 Nyloc
(Superseded to 7090393YP)

$3.49

$

Usually ships in 2-12 days

0

36

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 2
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 9

0

37

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

38

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

?39

Snapper 7091640

BOLT, 3/8-16 x1" Square Neck Carriage, Grade 2
(Superseded to 703814)

Note: Was 90747

$4.49

$

In Stock, only 4 left!

0

?40

Snapper 60634

BAG, Hardware

Note: (Includes items 22 thru 24, 27 thru 31, 33 thru 35, 37, 38 and 44)

$

$

Currently unavailable

41

Snapper 7032452

DRAWBAR, Short, Auxilliary
(Superseded to 7032452YP)

$49.99

$

Usually ships in 2-12 days

0

?42

Snapper 60722

KIT, Dozer Adapter, Long Frame

Note: (Includes items 6, 13, 32, 39, 41, 43, and 44)

$

$

Currently unavailable

?43

Snapper 7032456

CLIP, Dozer Blade
(Superseded to 7032456YP)

$45.99

$

Usually ships in 2-12 days

0

?44

Snapper 7090209

SCREW,5/16-18 x 3/4" Hex Head Cap, Grade 2
(Superseded to 7090209YP)

$2.99

$

Usually ships in 2-12 days

0

?45

Snapper 7060881

PARTS BOX for 60629

Note: Was 60629 (Includes 1, 7, 8, & 20)

$

$

Currently unavailable
