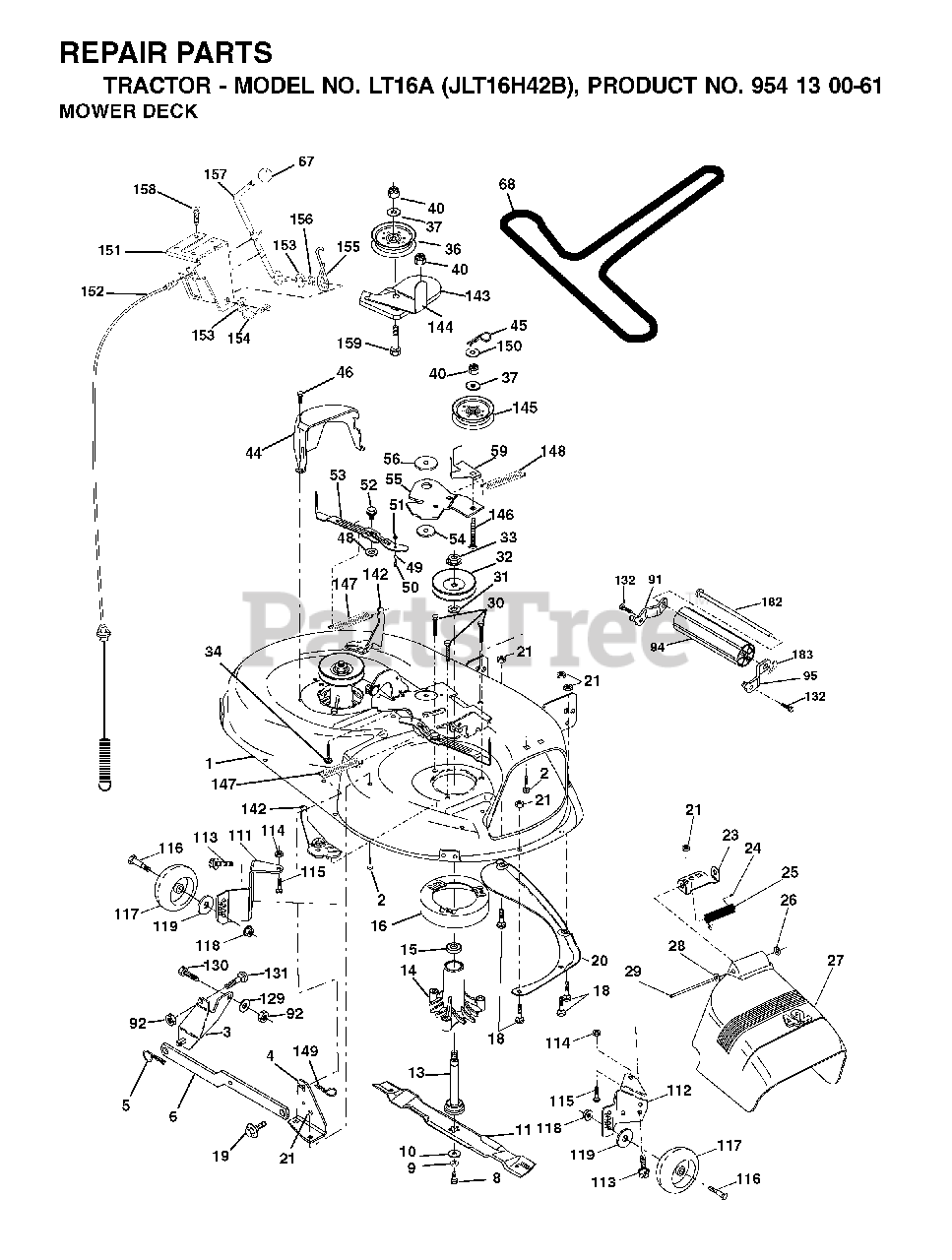

LT 16 A (954130061) - Jonsered Lawn Tractor (2002-03) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Jonsered 532165892

42" DECK KIT
(Superseded to 532176027)

$399.99

$

Usually ships in 3-10 days

0

2

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Jonsered 532138017

BRKT ASM SWAY BAR

$12.99

$

Usually ships in 3-10 days

0

4

Jonsered 532165460

BRACKET SWAY BAR 42" DECK

$13.99

$

In Stock, only 1 left!

0

5

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

6

Jonsered 532178024

BAR SWAY DECK

$8.99

$

In Stock, only 4 left!

0

8

Jonsered 532850857

BLADE BOLT

$4.99

$

In Stock, only 1 left!

0

9

Jonsered 810030600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

10

Jonsered 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

11

Jonsered 532138498

BLADE 42"
(Superseded to 532138971)

$20.99

$

In Stock, Qty 20+

0

13

Jonsered 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

14

Jonsered 532128774

HSG MANDREL

$34.99

$

Usually ships in 3-10 days

0

15

$13.99

$

In Stock, Qty 11

0

16

Jonsered 532174493

STRIPPER, MWR ROUND

$7.49

$

Usually ships in 3-10 days

0

18

Jonsered 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Jonsered 532132827

BOLT SHD 5/16-18

$

$

Not available

20

Jonsered 532159770

BAFFLE.VORTEX

$

$

Not available

21

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Jonsered 532177563

BRKT, DEFL. MOWER

$

$

Not available

24

Jonsered 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Jonsered 532123713

SPRING TORSION

$7.99

$

In Stock, only 1 left!

0

26

Jonsered 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Jonsered 532171859

SHIELD DEFLECTOR
(Superseded to 532130968)

$39.99

$

In Stock, Qty 9

0

28

Jonsered 819111016

WASHER
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

29

Jonsered 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Jonsered 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Jonsered 532129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

32

Jonsered 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Jonsered 532178342

NUT, FLG TOPLOCK 9/16"
(Superseded to 532400234)

$4.99

$

In Stock, Qty 12

0

34

Jonsered 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

36

Jonsered 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 5

0

37

$4.99

$

In Stock, Qty 5

0

40

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

44

Jonsered 532140088

GUARD MANDREL LH BLACK

$34.99

$

In Stock, Qty 10

0

45

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

46

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

48

$6.49

$

Usually ships in 3-10 days

0

49

Jonsered 532174284

ROLLER ASM CAM FOLLOWER

$10.99

$

In Stock, only 4 left!

0

50

Jonsered 532131340

BOLT
(Superseded to 131340)

$

$

Not available

51

$6.49

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 1 left!

0

53

Jonsered 532131845

ARM
(Superseded to 532184907)

$14.99

$

Usually ships in 3-10 days

0

54

Jonsered 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Jonsered 532155046

ARM IDLER 42" MOWER LT/YT

$15.99

$

Usually ships in 3-10 days

0

56

Jonsered 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 1 left!

0

59

Jonsered 532141043

GUARD, BELT

$

$

Not available

67

Jonsered 532106932

KNOB T (3/8 HOLE)

$7.99

$

In Stock, Qty 5

0

68

Jonsered 532180215

No Description Available

$

$

Not available

91

Jonsered 532180532

BRACKET ASM NOSEROLLER LH

$4.99

$

Usually ships in 3-10 days

0

92

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

94

Jonsered 532132264

NOSE ROLLER

$44.99

$

In Stock, Qty 20+

0

95

Jonsered 532180533

BRACKET ASM NOSEROLLER RH

$6.49

$

Usually ships in 3-10 days

0

111

Jonsered 532179292

BRACKET, WHEEL
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

112

Jonsered 532179293

BRACKET, WHEEL
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

113

Jonsered 817060510

SCREW.3/8-16X.625

$

$

Not available

114

Jonsered 873510500

NUT
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

115

Jonsered 872110505

BOLT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

116

Jonsered 532124842

No Description Available
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

117

Jonsered 532165746

WHEEL.GAUGE.STANDARD

$

$

Not available

118

Jonsered 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Jonsered 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

129

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

$6.49

$

Usually ships in 3-10 days

0

131

Jonsered 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

132

Jonsered 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

142

Jonsered 532165890

ARM SPRING BRAKE MOWER

$

$

Not available

143

Jonsered 532157109

BRACKET, ARM IDLER

$6.49

$

Usually ships in 3-10 days

0

144

Jonsered 532158634

KEEPER.BELT.42".CLUTCH.CABLE
(Superseded to 532173441)

$9.99

$

In Stock, only 1 left!

0

145

Jonsered 532165888

PULLEY
(Superseded to 532173437)

$28.99

$

In Stock, only 3 left!

0

146

Jonsered 532171977

BOLT, CARRIAGE IDLER BLACK
(Superseded to 532173443)

$7.49

$

In Stock, Qty 6

0

147

$5.99

$

In Stock, Qty 6

0

148

Jonsered 532169022

IDLER RETURN SPRING

$5.99

$

In Stock, Qty 5

0

149

Jonsered 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

Usually ships in 3-10 days

0

150

Jonsered 819091216

WASHER PM
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

151

Jonsered 532169670

BRACKET, CLUTCH CABLE

$

$

Not available

152

Jonsered 532181555

42" CLUTCH CABLE

$72.99

$

Usually ships in 3-10 days

0

153

Jonsered 532169674

WASHER FLAT 3/8"
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

154

Jonsered 532169675

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

155

Jonsered 532169671

SPRING RETENTION LEVER

$6.49

$

Usually ships in 3-10 days

0

156

Jonsered 532169672

SPACER CLUTCH CABLE

$6.49

$

Usually ships in 3-10 days

0

157

Jonsered 532169669

ROD CLUTCH CABLE 3/8"

$

$

Not available

158

Jonsered 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

159

Jonsered 872140614

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, only 3 left!

0

182

Jonsered 532179126

ROD ROLLER NOSE STANDARD

$

$

Not available

183

Jonsered 532163552

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

--

Jonsered 532181385

No Description Available

$

$

Not available

--

Jonsered 532130794

MANDREL ASM, LH 5PT STAR

$56.99

$

In Stock, only 2 left!

0
