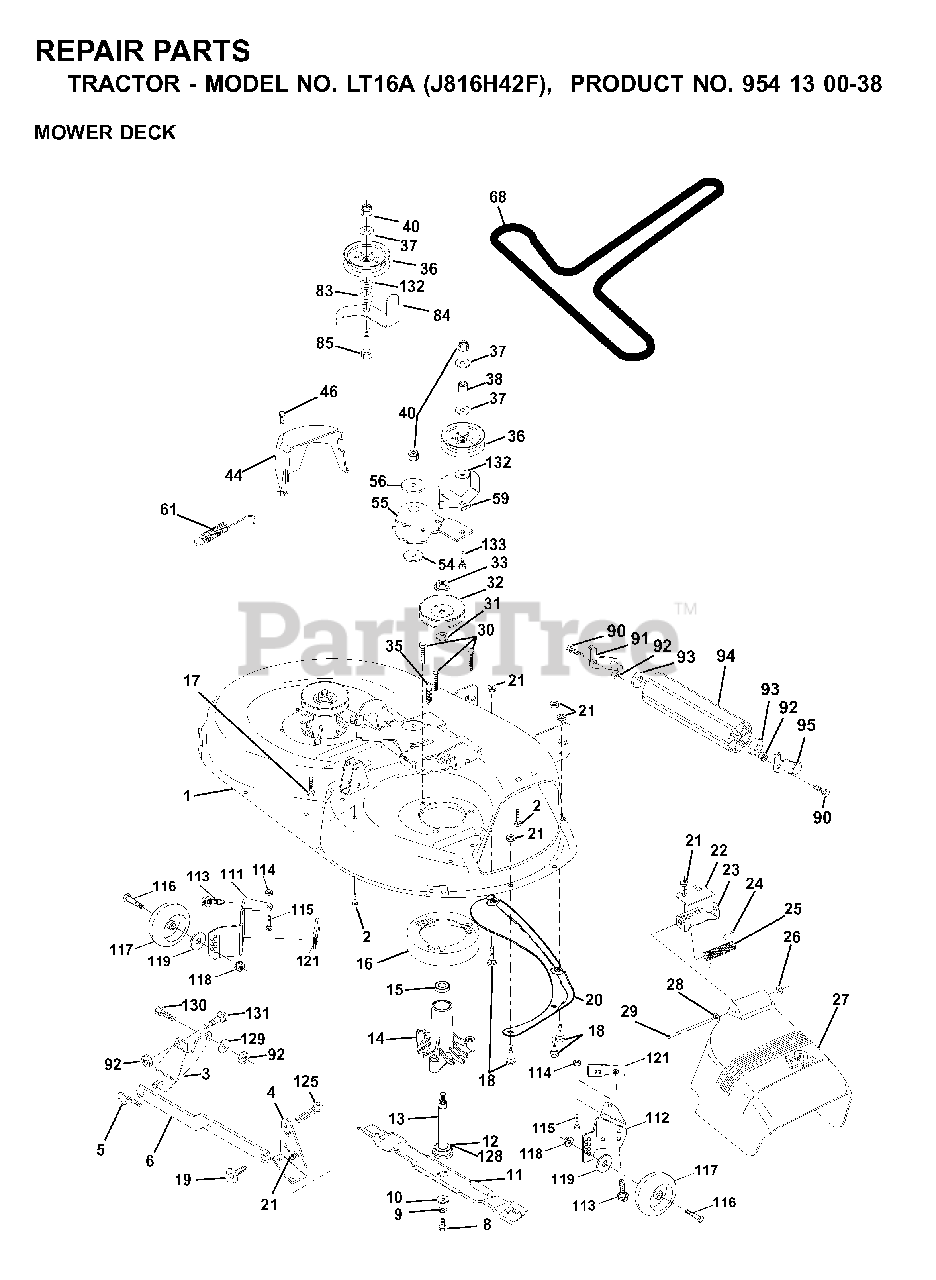

LT 16 A (954130038) - Jonsered Lawn Tractor (2000-03) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Jonsered 532164961

DECK 42"
(Superseded to 532176031)

$319.99

$

Usually ships in 3-10 days

0

2

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Jonsered 532138017

BRKT ASM SWAY BAR

$12.99

$

Usually ships in 3-10 days

0

4

Jonsered 532138440

BRKT DECK SW BAR

$6.49

$

Usually ships in 3-10 days

0

5

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

6

Jonsered 532130832

REAR SUSP ARM
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

8

Jonsered 532850857

BLADE BOLT

$4.99

$

In Stock, only 1 left!

0

9

Jonsered 810030600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

10

Jonsered 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

11

Jonsered 531013134

No Description Available

$

$

Not available

12

Jonsered 532129895

BEARING
(Superseded to 738220419)

$17.99

$

In Stock, only 2 left!

0

13

Jonsered 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

14

Jonsered 532128774

HSG MANDREL

$34.99

$

Usually ships in 3-10 days

0

15

$13.99

$

In Stock, Qty 11

0

16

Jonsered 532140329

STRIPPER
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

17

Jonsered 872110618

BOLT CARRIAGE

$6.49

$

In Stock, only 2 left!

0

18

Jonsered 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Jonsered 532132827

BOLT SHD 5/16-18

$

$

Not available

20

Jonsered 532159770

BAFFLE.VORTEX

$

$

Not available

21

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Jonsered 532134753

STIFFENER BRACKET
(Superseded to 532177563)

$

$

Not available

23

Jonsered 532131267

DEFLECTOR BRACKET
(Superseded to 532177563)

$

$

Not available

24

Jonsered 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Jonsered 532123713

SPRING TORSION

$7.99

$

In Stock, only 1 left!

0

26

Jonsered 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Jonsered 532171859

SHIELD DEFLECTOR
(Superseded to 532130968)

$39.99

$

In Stock, Qty 9

0

28

Jonsered 819111016

WASHER
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

29

Jonsered 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Jonsered 532157722

SCREW THDROL ROLLING WASHER HD
(Superseded to 532173984)

$4.99

$

In Stock, Qty 20+

0

31

Jonsered 532129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

32

Jonsered 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Jonsered 532137266

NUT
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

35

Jonsered 532133835

FASTENER.XMAS.TREE

$7.49

$

Usually ships in 3-10 days

0

36

Jonsered 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

37

$4.99

$

In Stock, Qty 5

0

38

Jonsered 532132823

IDLER SPRING SPACER

$7.49

$

Usually ships in 3-10 days

0

40

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

44

Jonsered 532140088

GUARD MANDREL LH BLACK

$34.99

$

In Stock, Qty 10

0

46

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

54

Jonsered 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Jonsered 532140084

IDLER ARM
(Superseded to 532151785)

$40.99

$

In Stock, only 1 left!

0

56

Jonsered 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 1 left!

0

59

Jonsered 532141043

GUARD, BELT

$

$

Not available

61

Jonsered 532131950

SPRING EXTENSION

$9.49

$

In Stock, Qty 5

0

$

$

Not available

83

$

$

Not available

84

Jonsered 532156084

KEEPER.BELT.IDLER

$6.49

$

Usually ships in 3-10 days

0

85

Jonsered 872140620

BOLT
(Superseded to 596337801)

$5.99

$

In Stock, Qty 11

0

90

Jonsered 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

91

Jonsered 532132274

BRACKET LH (A)
(Superseded to 532175746)

$9.49

$

In Stock, Qty 6

0

92

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

93

$4.99

$

In Stock, Qty 8

0

94

Jonsered 532132264

NOSE ROLLER

$44.99

$

In Stock, Qty 20+

0

95

Jonsered 532132273

BRACKET RH (B)
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

111

Jonsered 532155197

BRACKET WHEEL GAUGE LH 42" DK
(Superseded to 532179292)

$37.99

$

In Stock, only 1 left!

0

112

Jonsered 532155198

BRACKET WHEEL GAUGE RH 42" DK
(Superseded to 532179293)

$37.99

$

In Stock, only 1 left!

0

113

Jonsered 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

114

Jonsered 873510500

NUT
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

115

Jonsered 872110504

BOLT
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

116

Jonsered 532124842

No Description Available
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

117

Jonsered 532165746

WHEEL.GAUGE.STANDARD

$

$

Not available

118

Jonsered 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Jonsered 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

121

Jonsered 532143723

BRACKET.EXTRD.GWL

$

$

Not available

125

Jonsered 876020816

COTTER PIN

$6.49

$

Usually ships in 3-10 days

0

128

Jonsered 532153390

WASHER FELT

$6.49

$

In Stock, only 3 left!

0

129

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

$6.49

$

Usually ships in 3-10 days

0

131

Jonsered 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

132

Jonsered 819132203

WASHER GT

$6.49

$

In Stock, only 3 left!

0

$4.99

$

In Stock, Qty 10

0

--

Jonsered 532164964

No Description Available

$

$

Not available

--

Jonsered 532130794

MANDREL ASM, LH 5PT STAR

$56.99

$

In Stock, Qty 5

0
