LT-16 (13AD686G190) - White Outdoor 42" Lawn Tractor (1998) Lower Frame Assembly Parts Diagram

42" Lawn Tractor

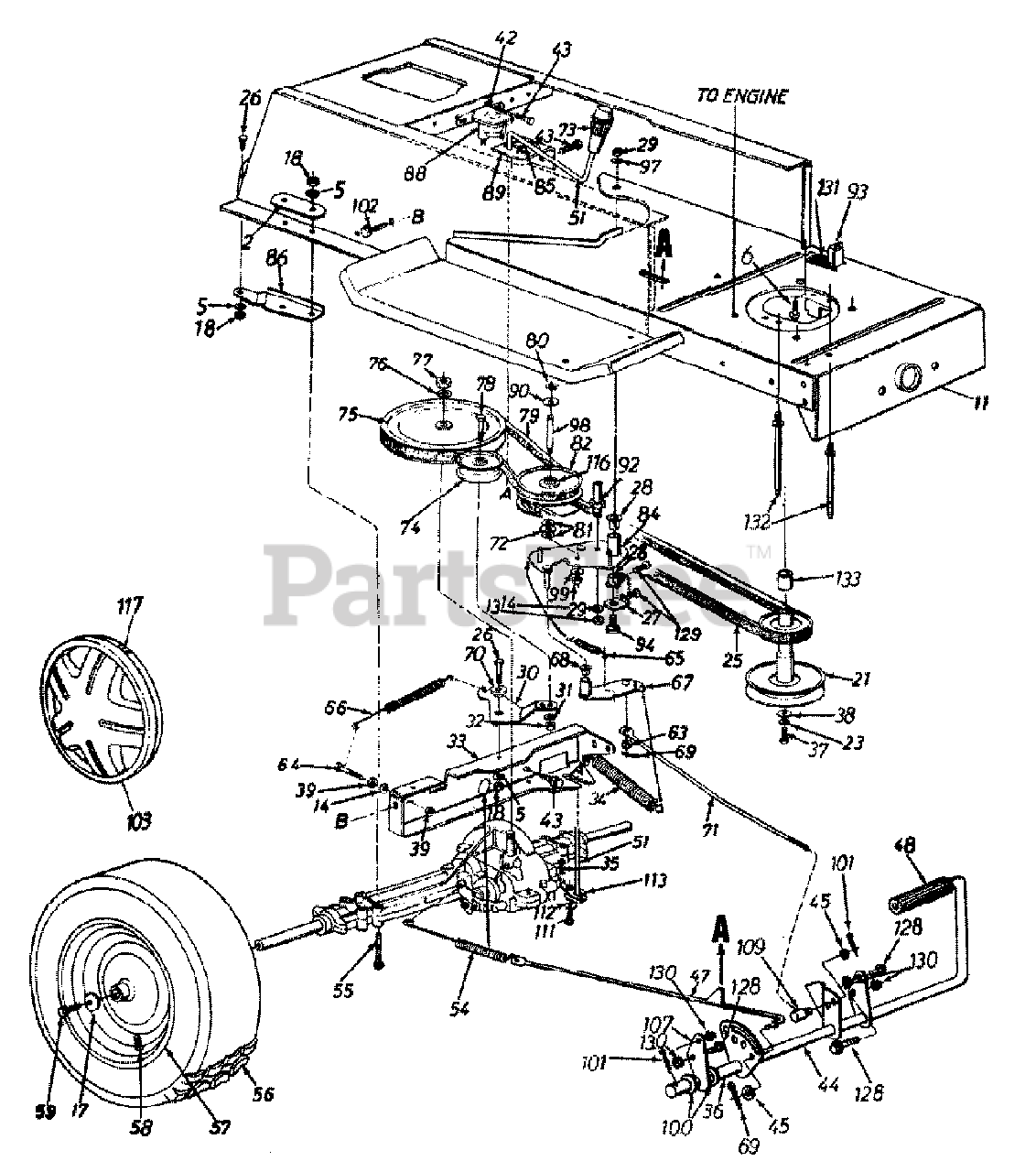

Lower Frame Assembly Parts Diagram

  • Title

2

White Outdoor 17840

Transaxle Mtg. Brkt.
(Superseded to 17840-0637)

Variations

White Outdoor 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

5

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

UNKNOWN

$

$

Not available

11

White Outdoor 783-0310E

Lower Frame Ass'y.
(Superseded to 783-0310F)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 783-0310E-0637

FRAME-LOWER 600 - POWDER BLACK (0637)

$159.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0310E-0665

FRAME-LOWER 600 - YARDMAN GREEN (0665)

$148.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0310E-0483

FRAME-LOWER 600 - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0310E-0638

FRAME-LOWER 600 - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0310E-0648

FRAME-LOWER 600 - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0310E-0650

FRAME-LOWER 600 - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0310E-0667

FRAME-LOWER 600 - MIDNIGHT BLUE (0667)

$

$

Not available

$138.99

$

Usually ships in 3-6 days

0

13

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

14

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

17

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

21

White Outdoor 756-0982

Engine Pulley
(Superseded to 756-0982B)

$72.99

$

In Stock, only 1 left!

0

23

White Outdoor 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

25

White Outdoor 754-0280

Variable-Speed Belt
(Superseded to 954-0280A)

$45.99

$

In Stock, only 1 left!

0

26

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 17963

Bearing Shaft Bracket Ass'y.

$

$

Not available

28

White Outdoor 741-0591

Flanged Nyliner Brg. 5/8" I.D. x .88" Lg.

$4.49

$

In Stock, Qty 9

0

29

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

30

White Outdoor 17694

Idler Bracket
(Superseded to 17694-0637)

Variations

White Outdoor 17694-0637

Idler Bracket - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

31

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

33

White Outdoor 17629A

Transaxle Support Brkt.
(Superseded to 17629A-0637)

Variations

White Outdoor 17629A-0637

Trans Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

34

White Outdoor 732-0556

Ext. Spring .94" O.D. x 7.58"
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0

35

White Outdoor 714-0149B

Inter. Cotter Pin

$4.49

$

In Stock, Qty 18

0

36

White Outdoor 750-0802

Spacer .63" I.D.

$6.99

$

Usually ships in 3-6 days

0

37

White Outdoor 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$9.99

$

In Stock, only 1 left!

0

38

White Outdoor 738-0785

Shld. Spacer .445" I.D.
(Superseded to 938-0785)

$25.99

$

In Stock, only 1 left!

0

39

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

?40

White Outdoor 710-0776

Hex AB-Tap Scr. 1/4" x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

?41

White Outdoor 711-0747

Belt Guard Pin

$10.99

$

Usually ships in 3-6 days

0

42

White Outdoor 736-0222

Ext. L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

43

White Outdoor 710-0599

Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 683-0123

Clutch/Brake Pedal Ass'y.

Variations

White Outdoor 683-0123-0483

PEDAL-ASSY BRAKE - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 683-0123-0637

PEDAL-ASSY BRAKE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0123-0638

PEDAL-ASSY BRAKE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 683-0123-0650

PEDAL-ASSY BRAKE - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0123-0662

PEDAL-ASSY BRAKE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 683-0123-0665

PEDAL-ASSY BRAKE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 683-0123-0691

PEDAL-ASSY BRAKE - BLACK JACK (0691)

$

$

Not available

$

$

45

White Outdoor 736-0140

Fl-Wash. .344" I.D. x .62"

$7.49

$

In Stock, Qty 7

0

47

White Outdoor 747-0755A

Brake Rod Ass'y.

$

$

Not available

48

White Outdoor 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

51

White Outdoor 17705

Shift Lever Ass'y.

$

$

Not available

?53

White Outdoor 732-0264

Ext. Spring .38" O.D. x 2.5"
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

54

White Outdoor 732-0642

Ext. Spring 7.33" Lg.
(Superseded to 932-0642)

$

$

Not available

55

White Outdoor 710-1266

Hex Bolt 5/16-18 x 3.5" Lg.

$9.99

$

Usually ships in 3-6 days

0

56

White Outdoor 734-1675

Wheel Ass'y. Comp.

Variations

White Outdoor 734-1675-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1675-0911

WHL ASSY 20 X 8 - Carlisle Gray (0911)

$447.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1675-0945

WHL ASSY 20 X 8 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1675-0912

WHL ASSY 20 X 8 - Dico Gray (0912)

$

$

Not available

White Outdoor 734-1675-0914

WHL ASSY 20 X 8 - Cheng Gray (0914)

$

$

Not available

White Outdoor 734-1675-0931

WHL ASSY 20 X 8 - Carlisle Beige (0931)

$

$

Not available

White Outdoor 734-1675-0941

WHEEL ASSY W/TIRE - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 734-1675-0944

No Longer Available WHEEL ASSY W/TIRE - Cheng Yellow (0944)

$

$

Not available

White Outdoor 734-1675-0981

WHEEL ASSY W/TIRE - Carlisle Green (0981)

$

$

Not available

White Outdoor 734-1675-0985

WHEEL ASSY 20X8X8 - Duro Green (0985)

$

$

Not available

$420.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1596

Tire Only

Variations

White Outdoor 734-1596-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

White Outdoor 734-1596-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1596-0906

TIRE 20X8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

White Outdoor 734-1596-0901

TIRE 20 X 8 - Carlisle (0901)

$

$

Not available

White Outdoor 734-1596-0904

TIRE 20 X 8 CHENG - Cheng (0904)

$

$

Not available

$200.99

$

Usually ships in 3-6 days

0

57

White Outdoor 634-0070

Wheel Rim Only
(Superseded to 634-04369)

Variations

White Outdoor 634-0070-4009

WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0499

WHEEL RIM - CUB BEIGE (0499)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0629

WHEEL RIM - SILVER FLAKE (0629)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0662

WHEEL RIM - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0688

WHEEL RIM - SPRING GREEN (0688)

$165.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

58

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

Note: (Service Only)

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 710-0627

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

?61

White Outdoor 732-0722

Brake Return Spring Anchor
(Superseded to 932-0722A)

$12.99

$

In Stock, only 4 left!

0

63

White Outdoor 736-0275

Fl-Wash. .34" I.D. x .68" O.D.

$6.99

$

Usually ships in 3-6 days

0

64

White Outdoor 710-0428

Hex Bolt 1/4-28 x 1.25" Lg.

$2.49

$

In Stock, only 1 left!

0

65

White Outdoor 732-0568

Ext. Spring
(Superseded to 932-0568)

$

$

Not available

66

White Outdoor 732-0384

Ext. Spring .62" O.D. x 6.12"
(Superseded to 932-0384)

$14.99

$

In Stock, only 4 left!

0

67

White Outdoor 16554A

Variable Speed Torque Brkt. Ass'y.
(Superseded to 16554A-0637)

Variations

White Outdoor 16554A-0637

Torque Bracket Assembly - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

68

White Outdoor 741-0419

Flanged Bearing

$

$

Not available

69

White Outdoor 714-0111

Cotter Pin 3/32" Dia.

$4.99

$

In Stock, Qty 13

0

70

White Outdoor 748-0234

Shoulder Spacer .27" Lg.

$4.49

$

Usually ships in 3-6 days

0

71

White Outdoor 747-0530A

Speed Control Link

$14.99

$

Usually ships in 3-6 days

0

72

White Outdoor 741-0405

Truss Bearing .56 Dia. x 1.25"
(Superseded to 941-0405)

$

$

Not available

73

White Outdoor 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

74

White Outdoor 756-0437

Fl-Idler Pulley 3.25" x .75"
(Superseded to 756-0643A)

$40.99

$

In Stock, Qty 15

0

75

White Outdoor 656-0005

"V" Pulley

$

$

Not available

76

White Outdoor 736-0427

Bell-Wash. .56" I.D. x 1.125"
(Superseded to 936-0427)

$

$

Not available

77

White Outdoor 712-3035

Hex Jam Nut 5/16-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

78

White Outdoor 710-0539

Hex Bolt 3/8-24 x 1.75" Lg.

$4.99

$

In Stock, Qty 11

0

79

White Outdoor 754-0370

Variable Speed Belt
(Superseded to 954-0370)

$41.99

$

Usually ships in 3-6 days

0

80

White Outdoor 716-0114

Snap Ring .56" Dia.
(Superseded to 916-0114)

$6.99

$

In Stock, only 3 left!

0

81

White Outdoor 736-0355

Fl-Wash.

$4.49

$

In Stock, Qty 12

0

82

White Outdoor 717-0800A

Variable Speed Pulley Ass'y. 5" O.D.
(Superseded to 917-0800A)

$245.99

$

In Stock, only 3 left!

0

84

White Outdoor 16354B

Variable Speed Brkt. Ass'y.

Variations

White Outdoor 16354B-0637

BRACKET ASSY-VAR S - POWDER BLACK (0637)

$

$

Not available

$

$

85

White Outdoor 732-0525

Comp. Spring-Clip

$10.99

$

In Stock, only 1 left!

0

86

White Outdoor 17668

Axle Support Brkt.-R.H.
(Superseded to 17668A-0637)

Variations

White Outdoor 17668-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 17669

Axle Support Brkt.-L.H.
(Superseded to 17669A-0637)

Note: (Not shown)

Variations

White Outdoor 17669-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

88

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

89

White Outdoor 17630

Shift Lever Bracket
(Superseded to 17630A-0637)

Variations

White Outdoor 17630-0637

Shift Lever Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

90

White Outdoor 736-0414

Teflon Washer .565" I.D.

$4.49

$

In Stock, only 4 left!

0

92

White Outdoor 711-1000

Belt Keeper 3" Lg.
(Superseded to 911-1000)

$10.99

$

In Stock, only 2 left!

0

93

White Outdoor 725-1657A

Safety Switch (Clutch)
(Superseded to 925-1657A)

$24.99

$

In Stock, Qty 5

0

94

White Outdoor 738-0755

Shld. Bolt 3/8-24 x 3.12" Lg.
(Superseded to 938-0755)

$14.99

$

Usually ships in 3-6 days

0

97

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

98

White Outdoor 738-0569

Shaft .56" Dia. x 3.875" Lg.
(Superseded to 938-0569)

$33.99

$

In Stock, only 1 left!

0

99

White Outdoor 736-0331

Bell-Wash. .39" I.D. x 1.12"

$3.99

$

In Stock, Qty 16

0

100

White Outdoor 736-0256

Fl-Wash. .64" I.D. x .94"
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

101

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25"

$4.49

$

In Stock, Qty 20+

0

102

White Outdoor 710-0604

Hex Wash. Hd. Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

103

White Outdoor 734-1784A

Hub Cap

$

$

Not available

107

White Outdoor 17860

Pedal Bracket
(Superseded to 17860-0637)

Variations

White Outdoor 17860-0637

Pedal Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

109

White Outdoor 711-0198

Ferrule
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

111

White Outdoor 710-0195

Hex Bolt 1/4-28 x .50" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

112

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

113

White Outdoor 17707

Shift Lever Link Ass'y.

$

$

Not available

?115

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62"

$7.49

$

In Stock, Qty 7

0

116

White Outdoor 741-0404

Needle Brgs.

$40.99

$

In Stock, only 2 left!

0

117

White Outdoor 727-0425A

Spring Clip
(Superseded to 927-0425A)

Note: (Used w/Ref. No. 103)

$

$

Not available

?119

White Outdoor 710-0427

Hex Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 7

0

?120

White Outdoor 756-0217

Fl-Idler w/Flanges 2.75" O.D.
(Superseded to 956-0217)

$22.99

$

In Stock, only 1 left!

0

?121

White Outdoor 736-0280

Fl-Wash. .39" I.D. x 1.12" O.D.
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

?122

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

128

White Outdoor 710-0650

Hex Wash. TT-Tap Scr. 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

?129

White Outdoor 710-0726

Hex Wash. AB-Tap Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

130

White Outdoor 712-0265

Hex Sems Nut 5/16-18 Thd.

$3.99

$

Usually ships in 3-6 days

0

131

White Outdoor 732-0750A

Spring Switch
(Superseded to 932-0750A)

$21.99

$

Usually ships in 3-6 days

0

132

White Outdoor 711-1044

Belt Guard Pin
(Superseded to 711-1044A)

$8.99

$

In Stock, Qty 10

0

133

White Outdoor 750-0956

Spacer

$19.99

$

In Stock, only 2 left!

0
