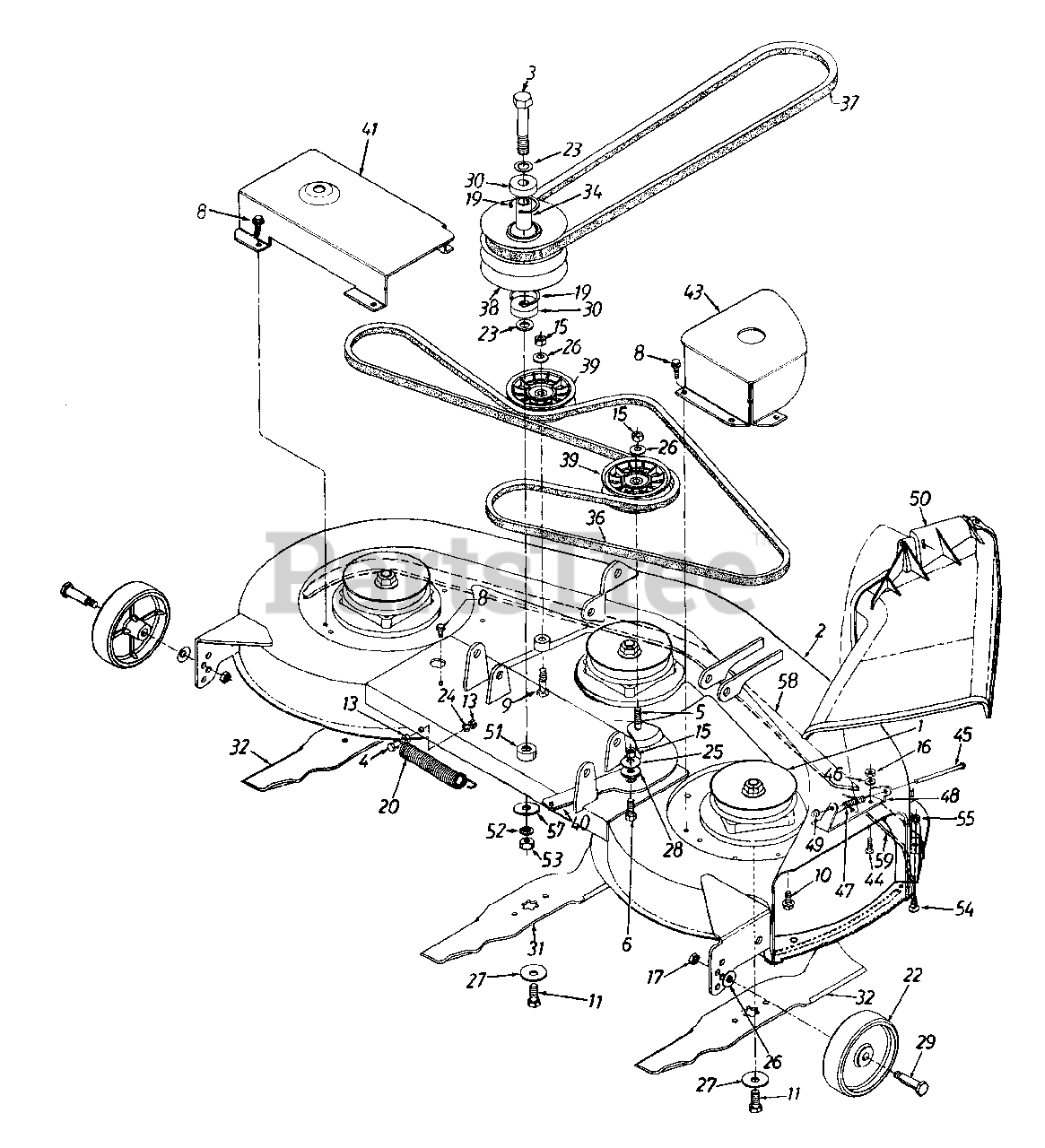

LT-16 (136T686H190) - White Outdoor 46" Lawn Tractor (1996) Pulley, Blade And Deck Assembly Parts Diagram

46" Lawn Tractor

Pulley, Blade And Deck Assembly Parts Diagram

  • Title

1

White Outdoor 618-0116

Blade Spindle Ass'y.
(Superseded to 918-0116C)

$149.99

$

Usually ships in 3-6 days

0

2

White Outdoor 683-0067

46" Deck Ass'y.

Variations

White Outdoor 683-0067-0483

No Longer Available DECK ASSY-4 - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 683-0067-0629

No Longer Available DECK ASSY-4 - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 683-0067-0637

No Longer Available DECK ASSY-4 - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0067-0638

No Longer Available DECK ASSY-4 - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 683-0067-0648

No Longer Available DECK ASSY-4 - TECH GRAY (0648)

$

$

Not available

White Outdoor 683-0067-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 683-0067-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

White Outdoor 813-06922

46" Deck Ass'y. Comp. (For Service)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 813-06922-0648

No Longer Available DECK ASSY- - TECH GRAY (0648)

$

$

Not available

White Outdoor 813-06922-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

$

$

3

White Outdoor 710-0298

Hex Bolt 5/8-18 x 3.5" Lg.

$9.99

$

In Stock, only 2 left!

0

?4

White Outdoor 710-0428

Hex Bolt 1/4-28 x 1.25" Lg.

$2.49

$

In Stock, only 1 left!

0

5

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

6

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0151

Hex Bolt 3/8-24 x 2" Lg.

$7.49

$

In Stock, only 3 left!

0

10

White Outdoor 710-1260

Hex Flange Bolt 5/16-24 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-0314

Hex Bolt 7/16-20 x 1" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 13

0

13

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

15

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

16

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

17

White Outdoor 712-0181

Hex Top Jam Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

?18

White Outdoor 712-3068

Hex Patch L-Nut 5/16-18 Thd.
(Superseded to 912-3009)

$

$

Not available

19

White Outdoor 716-3020

Int. Snap Ring
(Superseded to 916-3020)

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 732-0594A

Ext. Spring .88" O.D. x 6.17"
(Superseded to 932-0594A)

$14.99

$

In Stock, Qty 20+

0

22

White Outdoor 734-0973

Deck Wheel

$12.99

$

In Stock, Qty 20+

0

23

White Outdoor 736-0290

Fl-Wash. .635" I.D. x 1" O.D. x .06"

$6.99

$

In Stock, Qty 20+

0

24

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

25

White Outdoor 736-0331

Bell-Wash. 3/8" x 1.125" x .062"

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 736-0105

Bell-Wash. 3/8" x .87" x .064"

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 736-0510

Bell-Washer

$4.99

$

In Stock, only 2 left!

0

28

White Outdoor 738-0347

Shoulder Spacer .625" I.D. x .169"
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

29

White Outdoor 738-0373

Shld. Bolt .498" x 1.525"
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

30

White Outdoor 741-0524

Ball Brg. .625" I.D. x 1.574" O.D. x .47"
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

31

White Outdoor 742-0543

High Lift Blade 14.88" Lg.
(Superseded to 942-0543)

$25.99

$

In Stock, only 1 left!

0

32

White Outdoor 742-0542

High Lift Blade 16.28" Lg.
(Superseded to 942-0542)

$27.99

$

In Stock, only 2 left!

0

34

White Outdoor 750-0932

Spacer .635" I.D. x .088" O.D.
(Superseded to 950-0932A)

$20.99

$

In Stock, Qty 11

0

36

White Outdoor 754-0440

V-Belt
(Superseded to 954-0440)

$54.99

$

In Stock, only 2 left!

0

37

White Outdoor 754-0439

V-Belt
(Superseded to 954-0439)

$54.99

$

In Stock, only 1 left!

0

38

White Outdoor 756-0638

Pulley Double Deck 5" O.D.

$127.99

$

In Stock, only 3 left!

0

39

White Outdoor 756-0627

Flat Idler Pulley 3.5 O.D.
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

40

White Outdoor 783-0046

Idler Deck Bracket
(Superseded to 783-0046-0637)

Variations

White Outdoor 783-0046-0637

BRACKET-IDLER DECK - POWDER BLACK (0637)

$

$

Not available

$

$

41

White Outdoor 783-0063A

Belt Cover L.H.

Variations

White Outdoor 783-0063A-0483

COVER-BELT LH - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0063A-0498

COVER-BELT LH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0063A-0629

COVER-BELT LH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0063A-0637

COVER-BELT LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0063A-0648

COVER-BELT LH - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0063A-0638

COVER-BELT LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0063A-0662

COVER-BELT LH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0063A-0665

COVER-BELT LH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0063A-0687

COVER-BELT LH - PINE GREEN (0687)

$

$

Not available

$

$

43

White Outdoor 17258A

Belt Cover Brkt. R.H.
(Superseded to 17258E)

Variations

White Outdoor 17258A-0637

Deck Belt Cover, 46" Black - POWDER BLACK (0637)

$54.99

$

In Stock, only 2 left!

0

White Outdoor 17258A-0648

Deck Belt Cover, 46" Black - TECH GRAY (0648)

$54.99

$

In Stock, only 2 left!

0

White Outdoor 17258A-0665

COVER:BELT:DECK 46 - YARDMAN GREEN (0665)

$54.99

$

In Stock, only 2 left!

0

$48.99

$

Usually ships in 3-6 days

0

44

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

45

White Outdoor 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

46

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

47

White Outdoor 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

48

White Outdoor 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

49

White Outdoor 726-0106

Push Nut

$3.99

$

Usually ships in 3-6 days

0

50

White Outdoor 731-1032

Chute Ass'y. Comp.
(Superseded to 631-05229)

Note: Incl. Ref. 45, 47, 48, 49 & 50

$81.99

$

In Stock, Qty 6

0

51

White Outdoor 750-0960

Spacer .635" I.D. x 1" O.D.
(Superseded to 950-0960A)

$13.99

$

In Stock, only 3 left!

0

52

White Outdoor 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

53

White Outdoor 712-0337

Hex Nut 5/8-18 Thd.

$4.49

$

In Stock, only 4 left!

0

54

White Outdoor 710-0167

Carriage Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

55

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

57

White Outdoor 736-3088

Fl-Wash. .635" I.D.

$4.49

$

In Stock, Qty 8

0

58

White Outdoor 783-0141

Center Deck Skirt

Variations

White Outdoor 783-0141-0637

Center Deck Skirt, Powder Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0141-4008

Center Skirt for Deck, Red - WINE RED (4008)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

Usually ships in 3-6 days

0

59

White Outdoor 783-0142

R.H. Deck Skirt
(Superseded to 783-0142-0637)

Variations

White Outdoor 783-0142-0637

Deck Skirt, RH Powder Black - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0142-4008

Deck Skirt, RH Powder Black - WINE RED (4008)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0
