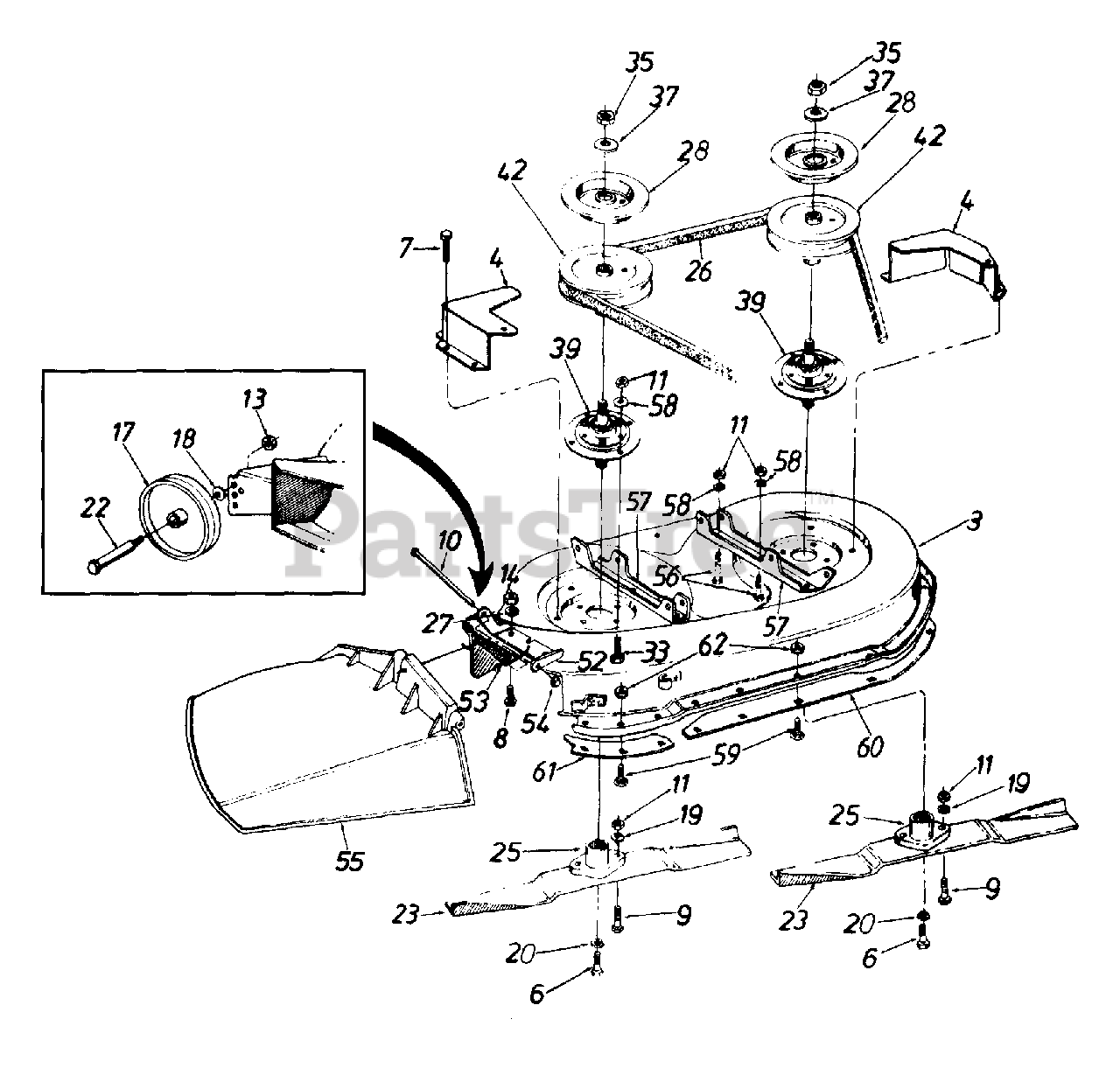

LT-16 (134T676G190) - White Outdoor 42" Lawn Tractor (1994) Mower Deck Parts Diagram

42" Lawn Tractor

Mower Deck Parts Diagram

  • Title
3

White Outdoor 17600A

42" Deck Ass'y.
(Superseded to 753-0698)

Variations

White Outdoor 17600A-0637

KIT-DECK 42" NEW S - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17600A-0662

KIT-DECK 42" NEW S - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17600A-0665

KIT-DECK 42" NEW S - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17600A-0667

KIT-DECK 42" NEW S - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

White Outdoor 813-06119

42" Deck Ass'y. Comp.
(Superseded to 753-0698)

Note: For Service Only

Variations

White Outdoor 813-06119-0483

KIT-DECK 42" NEW S - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 813-06119-0629

KIT-DECK 42" NEW S - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 813-06119-0637

KIT-DECK 42" NEW S - POWDER BLACK (0637)

$

$

Not available

White Outdoor 813-06119-0638

KIT-DECK 42" NEW S - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 813-06119-0648

KIT-DECK 42" NEW S - TECH GRAY (0648)

$

$

Not available

White Outdoor 813-06119-0650

KIT-DECK 42" NEW S - RED METALLIC (0650)

$

$

Not available

White Outdoor 813-06119-0662

KIT-DECK 42" NEW S - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 813-06119-0665

KIT-DECK 42" NEW S - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 813-06119-0667

KIT-DECK 42" NEW S - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

4

White Outdoor 17664

Belt Guard Deck
(Superseded to 17664-0637)

Variations

White Outdoor 17664-0480

Belt Guard, LH Black - BRILLIANT GREEN (0480)

$32.99

$

In Stock, only 4 left!

0

White Outdoor 17664-0483

Belt Guard, LH Black - CHARCOAL GRAY (0483)

$32.99

$

In Stock, only 4 left!

0

White Outdoor 17664-0629

Belt Guard, LH Black - SILVER FLAKE (0629)

$32.99

$

In Stock, only 4 left!

0

White Outdoor 17664-0637

Belt Guard, LH Black - POWDER BLACK (0637)

$32.99

$

In Stock, only 4 left!

0

White Outdoor 17664-0638

Belt Guard, LH Black - MTD/TROY-BILT RED (0638)

$32.99

$

In Stock, only 4 left!

0

White Outdoor 17664-0648

Belt Guard, LH Black - TECH GRAY (0648)

$32.99

$

In Stock, only 4 left!

0

White Outdoor 17664-0650

Belt Guard, LH Black - RED METALLIC (0650)

$32.99

$

In Stock, only 4 left!

0

White Outdoor 17664-0662

Belt Guard, LH Black - OYSTER GRAY (0662)

$32.99

$

In Stock, only 4 left!

0

White Outdoor 17664-0665

Belt Guard, LH Black - YARDMAN GREEN (0665)

$32.99

$

In Stock, only 4 left!

0

White Outdoor 17664-0667

Belt Guard, LH Black - MIDNIGHT BLUE (0667)

$32.99

$

In Stock, only 4 left!

0

White Outdoor 17664-0668

Belt Guard, LH Black - MOSS GREEN (0668)

$32.99

$

In Stock, only 4 left!

0

$32.99

$

In Stock, only 4 left!

0

6

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 5

0

7

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62"
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 710-0888

Hex Bolt Special 5/16-24 x 1.0"

$4.49

$

In Stock, Qty 5

0

10

White Outdoor 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

Usually ships in 3-6 days

0

11

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

13

White Outdoor 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

14

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

17

White Outdoor 734-0973

Deck Wheel - 5"

$12.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-0105

Bell-Wash..40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 736-0217

L-Wash. 3/8" I.D.- H.D.

$4.49

$

In Stock, Qty 9

0

22

White Outdoor 738-0373

Shld. Bolt .498" Dia. x 1.53"
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

23

White Outdoor 742-0499A

High-Lift Blade
(Superseded to 942-0499A)

$34.99

$

In Stock, only 3 left!

0

25

White Outdoor 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

26

White Outdoor 754-0371A

V-Belt
(Superseded to 954-0371A)

$103.99

$

In Stock, only 2 left!

0

27

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 09322

Brake Disc

$

$

Not available

33

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 8

0

35

White Outdoor 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 13

0

37

White Outdoor 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, only 1 left!

0

39

White Outdoor 717-0906

Blade Spindle Ass'y. Comp.
(Superseded to 753-05319)

$128.99

$

In Stock, Qty 10

0

42

White Outdoor 756-0556

5.5" Dia. Pulley

$56.99

$

In Stock, only 3 left!

0

52

White Outdoor 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

53

White Outdoor 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

$3.99

$

Usually ships in 3-6 days

0

55

White Outdoor 731-1032

Chute Ass'y. Comp.
(Superseded to 631-05229)

Note: Incl. Ref. 10,52,53,54,55

$81.99

$

In Stock, Qty 6

0

56

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 8

0

57

White Outdoor 17493A

Deck Hanger Channel
(Superseded to 17493B-0637)

Variations

White Outdoor 17493A-0637

DECK HANGER BRACKET BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

58

White Outdoor 736-0242

Bell-Wash..345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 710-0167

Carr. Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

60

White Outdoor 17861A

Deck Skirt Ext.- Long
(Superseded to 17861A-0637)

Variations

White Outdoor 17861A-0637

DECK SKIRT-POWDER BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

61

White Outdoor 17961

Deck Skirt Ext.- Short
(Superseded to 17961-0637)

Variations

White Outdoor 17961-0637

Skirt Deck Ext.Sho - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 1 left!

0

62

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0
