LT-16 (134T676G190) - White Outdoor 42" Lawn Tractor (1994) Electrical System Parts Diagram

42" Lawn Tractor

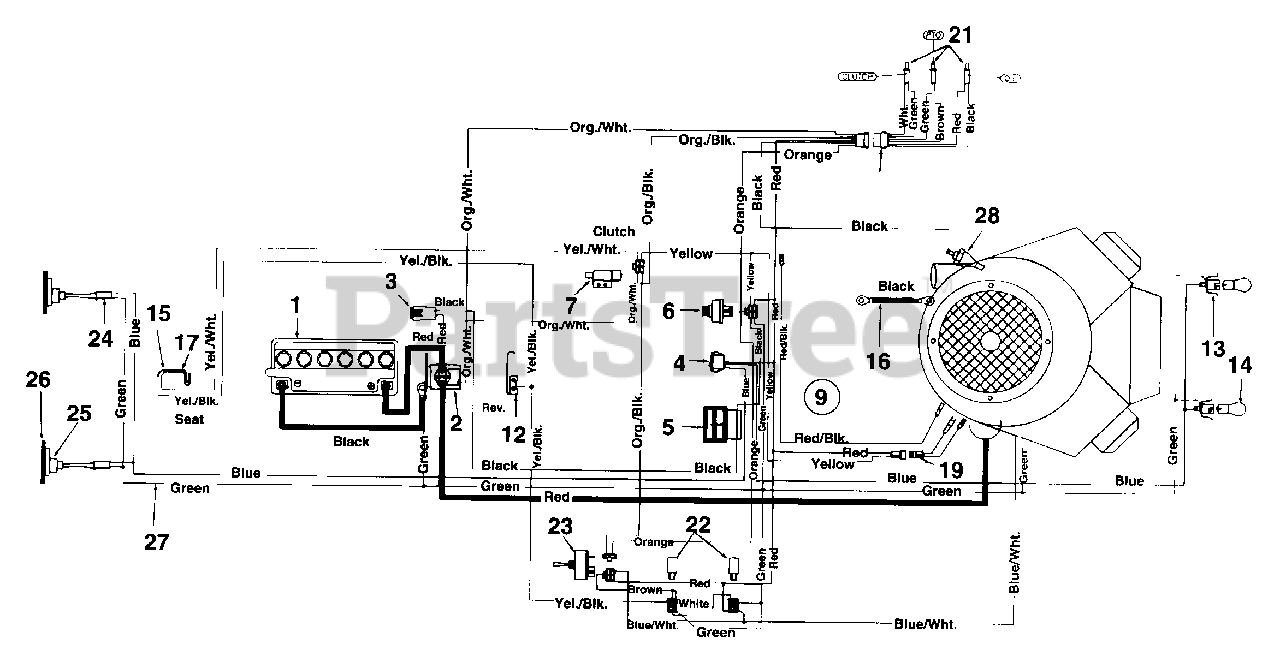

Electrical System Parts Diagram

  • Title
1

White Outdoor 725-1635

Battery
(Superseded to 753-0608)

$

$

Not available

2

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

3

White Outdoor 725-1381

Fuse 20 Amps
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0

4

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

5

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

6

White Outdoor 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

7

White Outdoor 725-1657

Safety Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

9

White Outdoor 629-0206

Wire Harness

$

$

Not available

12

White Outdoor 725-1643

Safety Switch (Reverse)

$10.99

$

In Stock, only 1 left!

0

13

White Outdoor 725-1649

Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

14

White Outdoor 725-0963

Bulb (Headlight)
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

15

White Outdoor 725-1303

Safety Switch (Seat)
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

16

White Outdoor 725-0980

Ground Wire 7.5" Lg.

$

$

Not available

17

White Outdoor 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 10

0

19

White Outdoor 629-0130

Harness Adapter

Note: Code: N notates a new part (not previously existing).

$

$

Not available

?20

White Outdoor 629-0133

Monitor Harness

Note: Code: N notates a new part (not previously existing).

$

$

Not available

21

White Outdoor 725-1365

Monitor Bulb
(Superseded to 925-1365)

$10.99

$

In Stock, only 1 left!

0

22

White Outdoor 725-1648

Relay
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 7

0

23

White Outdoor 725-0893

Safety Switch (PTO)
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0

24

White Outdoor 725-1380

Taillight Harness

$

$

Not available

25

725-3018

Taillight

$

$

Not available

26

White Outdoor 725-3020

Taillight Bulb
(Superseded to 925-3020)

$

$

Not available

27

White Outdoor 629-0134

Taillight Adaptor Harness

$

$

Not available

28

White Outdoor 751-0537

Oil Pressure Switch

$

$

Not available
