LT 1597 (960410050-12) - Husqvarna Lawn Tractor (2012-11) SEAT Parts Diagram

Lawn Tractor

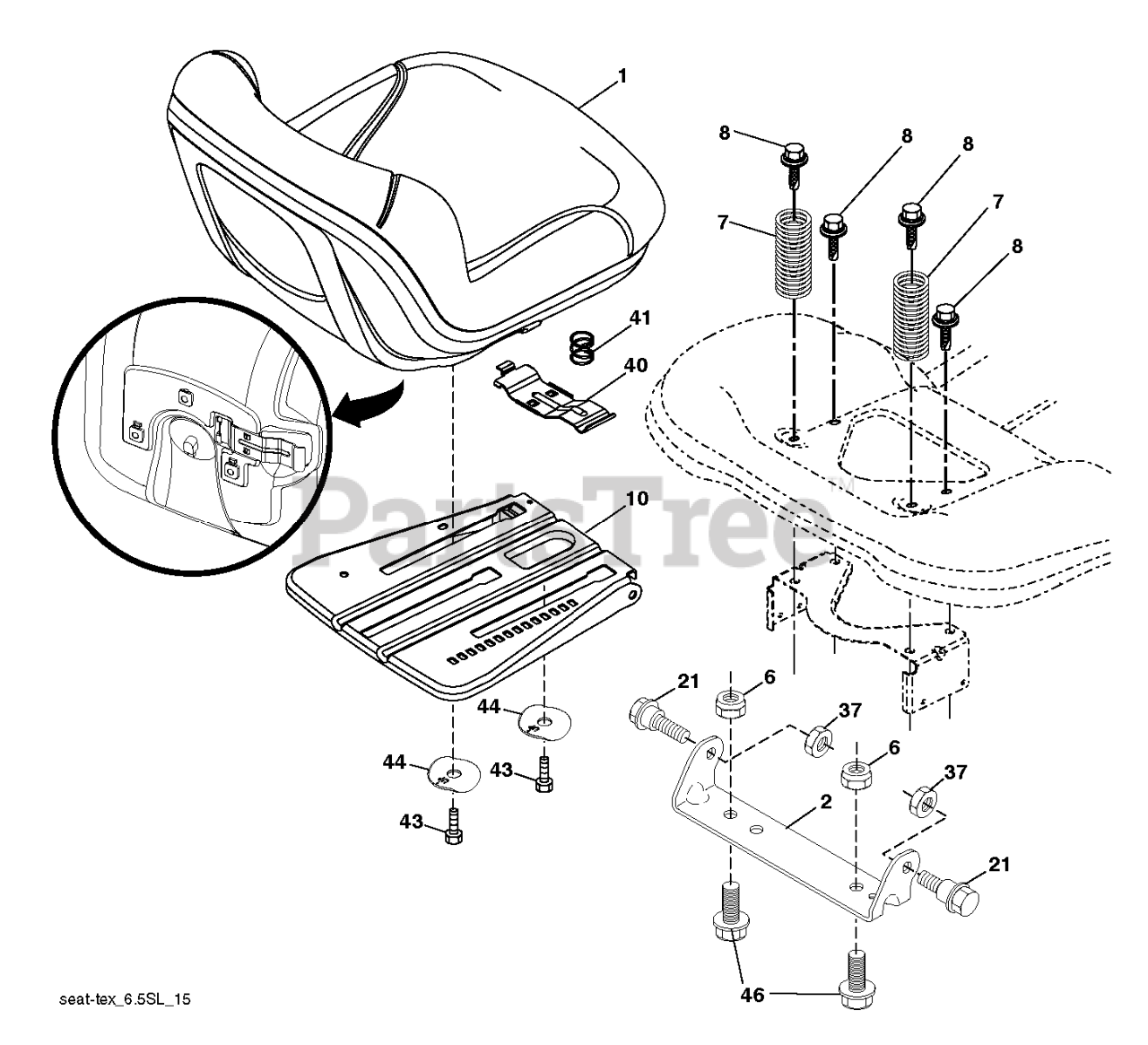

SEAT Parts Diagram

  • Title

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

6

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 874760612

BOLT

$4.99

$

In Stock, only 1 left!

0

40

Husqvarna 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK

$

$

Not available

7

Husqvarna 589483501

SPRING.COMPRESS.SEAT.TAPERED

$9.49

$

In Stock, only 2 left!

0

41

Husqvarna 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532180166

BRKT.PIVOT.FENDER

$13.99

$

In Stock, only 1 left!

0

21

Husqvarna 587907801

BOLT.5/16-18X5/8.SHOULDER

$4.99

$

In Stock, Qty 8

0

Husqvarna 596657402

PLATE SEAT; SLIDE; 3PT BLACK;

$18.99

$

Usually ships in 3-10 days

0

46

Husqvarna 588090401

BOLT.3/8-16X1;1.25OD.WSHR.SEMS

$6.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532439819

SEAT.TH130.GREY.HUSQ.TEX

$239.99

$

Usually ships in 3-10 days

0

10

Husqvarna 587232002

PLATE.PNT.SEAT.SLIDE.3PT.EDIP
(Superseded to 596768801)

$56.99

$

Usually ships in 3-10 days

0

44

Husqvarna 501051801

WASHER.WINGED.3/8ID.1.5OD

$4.99

$

In Stock, only 1 left!

0

37

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0
