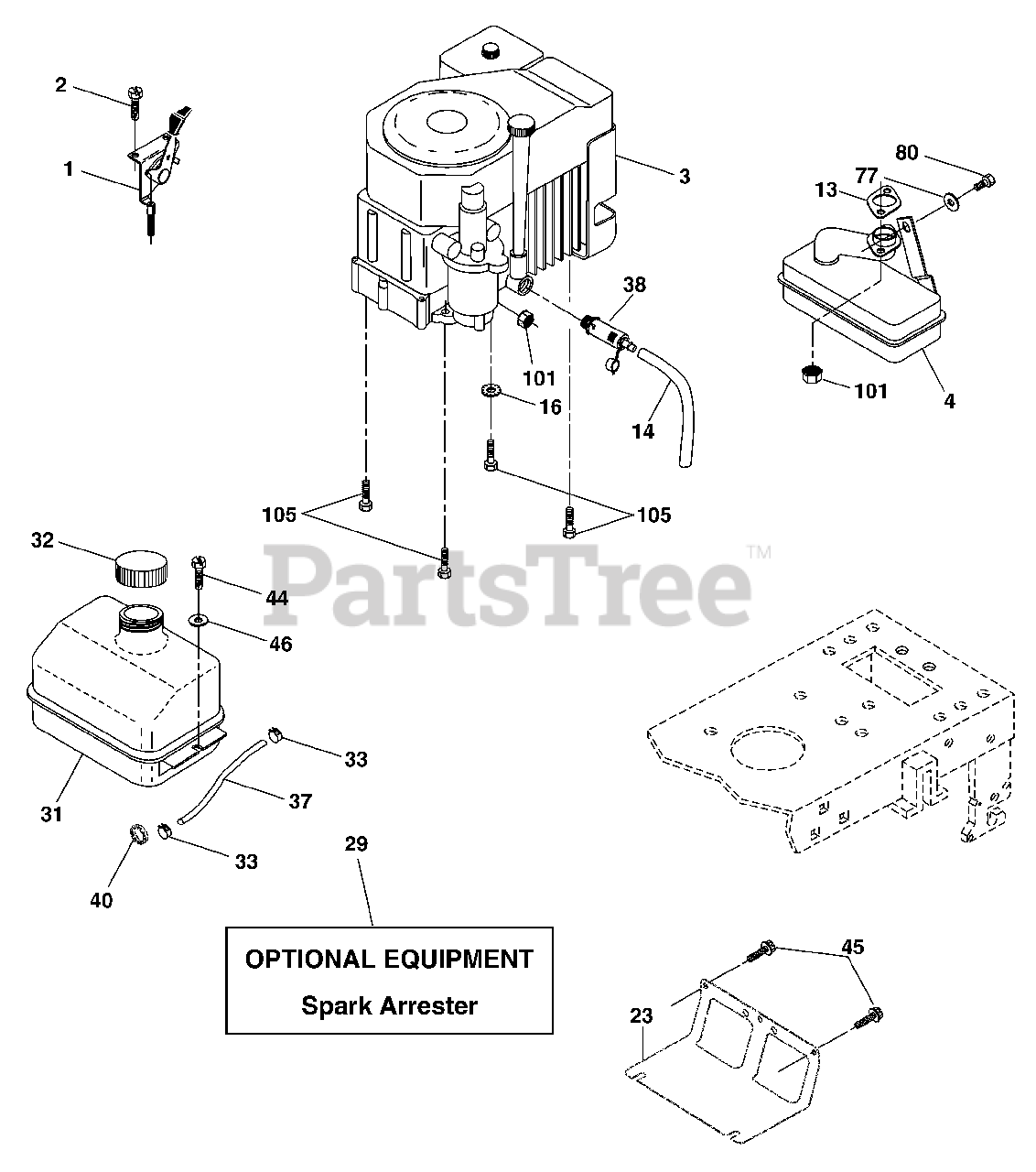

LT 1538 (954569776-D) - Husqvarna Lawn Tractor (2003-01) Engine Parts Diagram

Lawn Tractor

Engine Parts Diagram

  • Title
1

Husqvarna 532170805

Control Th/ch Flag

$

$

Not available

2

Husqvarna 817720408

Screw Hex Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

3

Engine, Kohl CV460

Note: (Order parts from engine manufacturer)

$

$

Not available

$

$

Not available

13

Husqvarna 532163831

Gasket Eng

$

$

Not available

14

Husqvarna 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, Qty 5

0

16

Husqvarna 811050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532169837

Shield Brn/Dbr Guard

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Kit Spark Arrestor (Flat Scrn)

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532184900

Tank Fuel Front

$45.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532140527

Cap Asm Fuel W/sym Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

Clamp Hose Black

$7.49

$

In Stock, only 4 left!

0

37

Husqvarna 532137040

Line Fuel 20"
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

38

Husqvarna 532181654

Plug Drain Oil Easy
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

40

Husqvarna 532124028

Bushing Snap Nyl Blk Fuel Line

$5.99

$

In Stock, only 3 left!

0

44

Husqvarna 817670412

Screw Hexwsh Thdrol 1/4-20 x 3/4

$6.49

$

In Stock, only 2 left!

0

45

Husqvarna 817000612

Screw Hexwsh Thdr 3/8-16 x 3/4

$4.99

$

In Stock, only 4 left!

0

46

Husqvarna 819091416

Washer 9/32 x 7/8 x 16 Ga

$6.49

$

Usually ships in 3-10 days

0

77

Husqvarna 819101216

Washer 5/16 x 3/4 x 16 Ga.
(Superseded to 734115441)

$4.99

$

Usually ships in 3-10 days

0

80

Husqvarna 874760508

Bolt Hex Hd 5/16-18unc x 1/2

$3.99

$

Usually ships in 3-10 days

0

101

Husqvarna 532163305

Nut Flange M8-1.25
(Superseded to 873030800)

$

$

Not available

105

Husqvarna 817120616

Screw 3/8-16 x 1

$5.99

$

In Stock, Qty 20+

0
