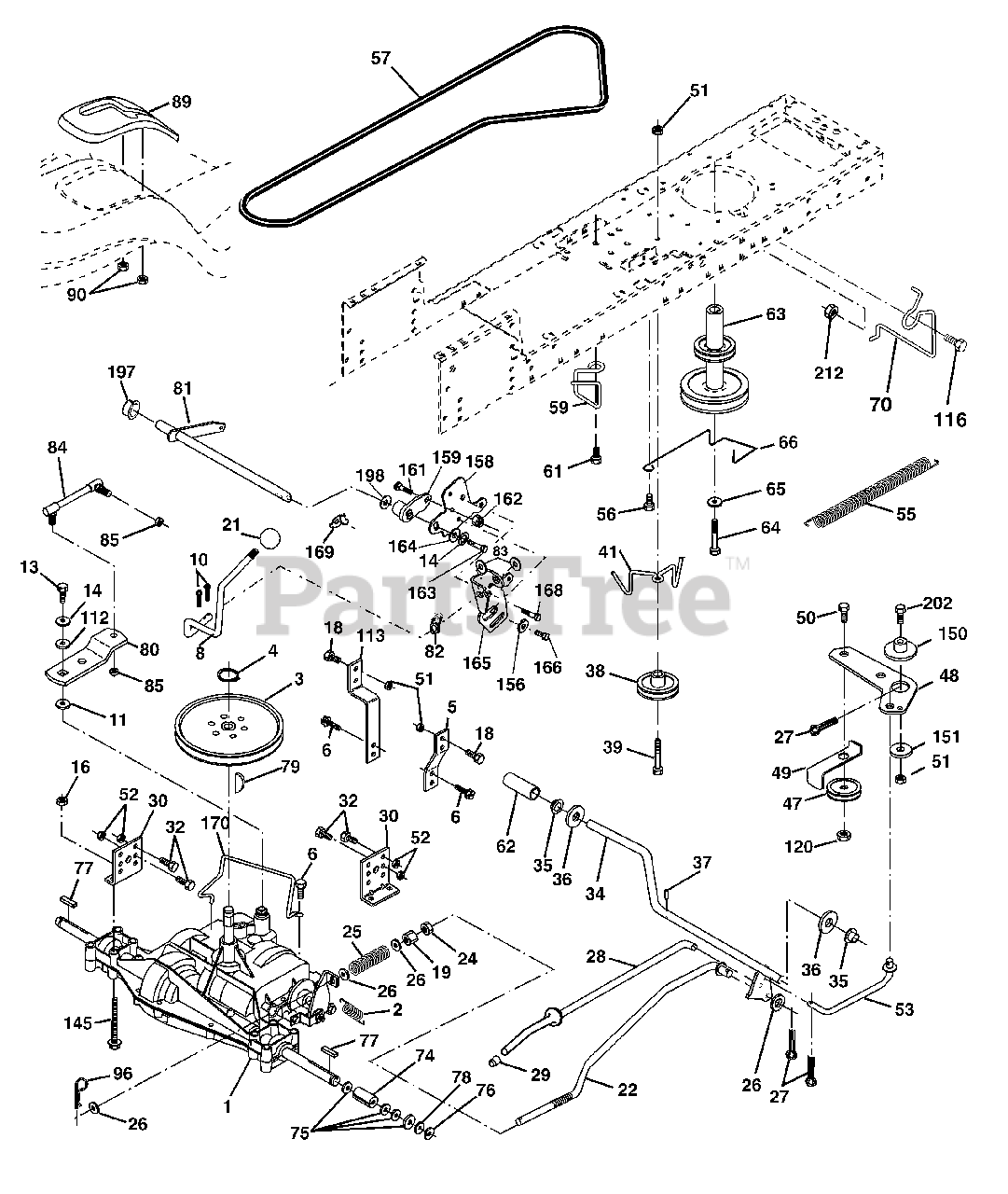

LT 1538 (954569776-C) - Husqvarna Lawn Tractor (2002-12) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title
1

Transaxle Peerless 206-545C

Note: Order parts from transaxle manufacturer

$

$

Not available

2

Husqvarna 532146682

Spring Return Brake T/a Zinc

$8.99

$

In Stock, only 2 left!

0

3

Husqvarna 532123666

Pulley Transaxle 18" tires

$45.99

$

In Stock, only 1 left!

0

4

Husqvarna 812000028

Ring Retainer # 5100-62

$7.49

$

In Stock, Qty 7

0

5

Husqvarna 532121520

Strap Torque 30 Degrees

$7.99

$

In Stock, only 3 left!

0

6

Husqvarna 817060512

Screw Thdrol 5/16-18
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532165866

Rod Shift Fender Adjust Lt

$

$

Not available

10

Husqvarna 876020416

Pin Cotter 1/8 X 1 Cad

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532105701

Washer Plate Shf 388 Sq Hole

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 874550412

Bolt 1/4-28 Unf Gr 8 W/Patch
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 810040400

Washer Lock Hvy Helical
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

16

Husqvarna 873800500

Nut Lock Hex w/Ins 5/16-18

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 874780616

Bolt, Fin Hex 3/8-16 UNC x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 873800600

Nut Lock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

$7.99

$

In Stock, only 1 left!

0

22

Husqvarna 532130804

Rod Brake Blk Zinc 26 840

$31.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873350600

Nut Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 532106888

Spring Rod Brake 2 00 Zinc
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Husqvarna 819131316

Washer 13/32 X 13/16 X 16 Ga
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 876020412

Pin Cotter 1/8 X 3/4 Cad
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 532175765

Rod Brake Parking LT/YT

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532071673

Cap Brake Parking Black

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532174973

Bracket Mtg Transaxle
(Superseded to 532130807)

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 874760512

Bolt Hex Hd 5/16-18unc X 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532175578

Shaft Asm Pedal Foot

$31.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532120183

Bearing Nylon Blk 629 Id

$6.99

$

In Stock, only 3 left!

0

36

Husqvarna 819211616

Washer 21/32 X 1 X 16 Ga

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532124963

Pin Roll 3/16 X 1"
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

38

Husqvarna 532179114

Pulley Idler Composite

$31.99

$

Usually ships in 3-10 days

0

39

Husqvarna 874760648

Bolt Fin Hex 3/8-16 Unc x 3
(Superseded to 874780648)

$

$

Not available

41

Husqvarna 532175556

Keeper Belt Idler Flat

$9.99

$

In Stock, only 1 left!

0

47

Husqvarna 532127783

Pulley Idler V Groove Plastic
(Superseded to 532139245)

$37.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532154407

Bellcrank Clutch Grnd Drive

$8.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532123205

Retainer Belt Style Spring

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 872110612

Bolt Carr. 3/8-16 x 1-1/2 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 873680600

Nut Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

Nut Crownlock 5/16-18 Unc
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532105710

Link Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

Spring Return Clutch 6 75

$11.99

$

Usually ships in 3-10 days

0

56

Husqvarna 817060620

Screw 3/8-16 x 1 1/4

$7.49

$

In Stock, Qty 11

0

57

Husqvarna 532130801

V-Belt Ground Drive 95 25
(Superseded to 532138255)

$39.99

$

In Stock, Qty 5

0

59

Husqvarna 532169691

Keeper Belt Span Ctr

$26.99

$

Usually ships in 3-10 days

0

61

Husqvarna 817120614

Screw 3/8-16 x .875
(Superseded to 817490614)

$

$

Not available

62

Husqvarna 532124872

Cover Pedal Round
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

63

Husqvarna 532175410

Engine Pulley LT/YT

$87.99

$

In Stock, only 1 left!

0

64

Husqvarna 871170764

Bolt Hex
(Superseded to 532173937)

$4.99

$

In Stock, only 1 left!

0

65

Husqvarna 810040700

Washer Lock Hvy Hlcl Spr 7/16
(Superseded to 539990247)

$

$

Not available

66

Husqvarna 532154778

Keeper Belt Engine Foolproof

$12.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532134683

Guide Belt Mower Drive RH

$

$

Not available

74

Husqvarna 532137057

Spacer Axle

$7.49

$

In Stock, only 3 left!

0

75

Husqvarna 532121749

Washer 25/32 X 1 1/4 X 16 Ga

$3.49

$

Usually ships in 3-10 days

0

76

Husqvarna 812000001

E-ring #5133-75

$4.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532123583

Key Square 2 0 X 1845/ 1865

$4.99

$

In Stock, only 4 left!

0

78

Husqvarna 532121748

Washer 25/32 X 1-5/8 X 16 Ga

$4.99

$

In Stock, Qty 20+

0

79

Husqvarna 532125096

Key Woodruff #9 3/16 x 3/4

$9.49

$

In Stock, only 1 left!

0

80

$7.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532165594

Shaft Asm Cross

$37.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532165711

Spring Torsion T/a

$7.49

$

In Stock, only 1 left!

0

83

Husqvarna 819171216

Washer 17/32 X 3/4 X 16 Ga
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

84

Husqvarna 532166228

Link Transaxle

$

$

Not available

85

Husqvarna 532150360

Nut Lock Center 1/4 - 28 FNTHD

$

$

Not available

89

Husqvarna 532166556

Console Shift STLT

$

$

Not available

90

Husqvarna 532124346

Nut Self-thd Wsh-hd 1/4 Zinc

$7.99

$

In Stock, only 1 left!

0

96

Husqvarna 532124788

Retainer Spring 1"
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

112

Husqvarna 819091210

Washer 9/32 x 3/4 x 10 Ga.

$6.99

$

Usually ships in 3-10 days

0

113

Husqvarna 532127285

Strap Torque LT

$

$

Not available

116

Husqvarna 872140608

Bolt Rdhd Sq Neck 3/8-16 x 1.0
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

120

Husqvarna 873900600

Nut Lock Flg. 3/8-16 Unc
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

145

Husqvarna 874490540

Bolt Hex 5/16-18 Gr. 5

$4.99

$

Usually ships in 3-10 days

0

150

$

$

Not available

151

Husqvarna 819133210

Washer 13/32 x 2 x 10 Ga.
(Superseded to 532413524)

$

$

Not available

156

Husqvarna 532166002

Washer Srrted 5/16ID x 1.125

$6.49

$

Usually ships in 3-10 days

0

158

Husqvarna 532165589

Bracket Shift Mount
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Husqvarna 532183900

Hub Tapered Flange Shift Lt
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Husqvarna 872140406

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

162

Husqvarna 873680400

Nut Crownlock 1/4-20 Unc
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

163

Husqvarna 874780416

Bolt Hex Fin 1/4-20 Unc x 1 Gr 5

$6.49

$

Usually ships in 3-10 days

0

164

Husqvarna 819091010

Washer 5/8 x .281 x 10 Ga

$

$

Not available

165

Husqvarna 532165623

Bracket Pivot Lever
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

Husqvarna 532166880

Screw 5/16-18 x 5/8

$6.49

$

Usually ships in 3-10 days

0

168

Husqvarna 532165492

Bolt Shoulder 5/16-18 x .561

$10.99

$

In Stock, only 3 left!

0

169

Husqvarna 532165580

Plate Fastening Lt

$6.99

$

Usually ships in 3-10 days

0

170

Husqvarna 532178394

Keeper, Belt T/A D/P

$9.99

$

Usually ships in 3-10 days

0

197

Husqvarna 532169613

Nyliner Snap-In

$7.49

$

In Stock, Qty 6

0

198

Husqvarna 532169593

Washer Nyl 7/8 ID x 105"

$11.99

$

Usually ships in 3-10 days

0

202

Husqvarna 872110614

Bolt RDHD 3/8-16 x 1-3/4 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

212

Husqvarna 532145212

Nut, Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0
