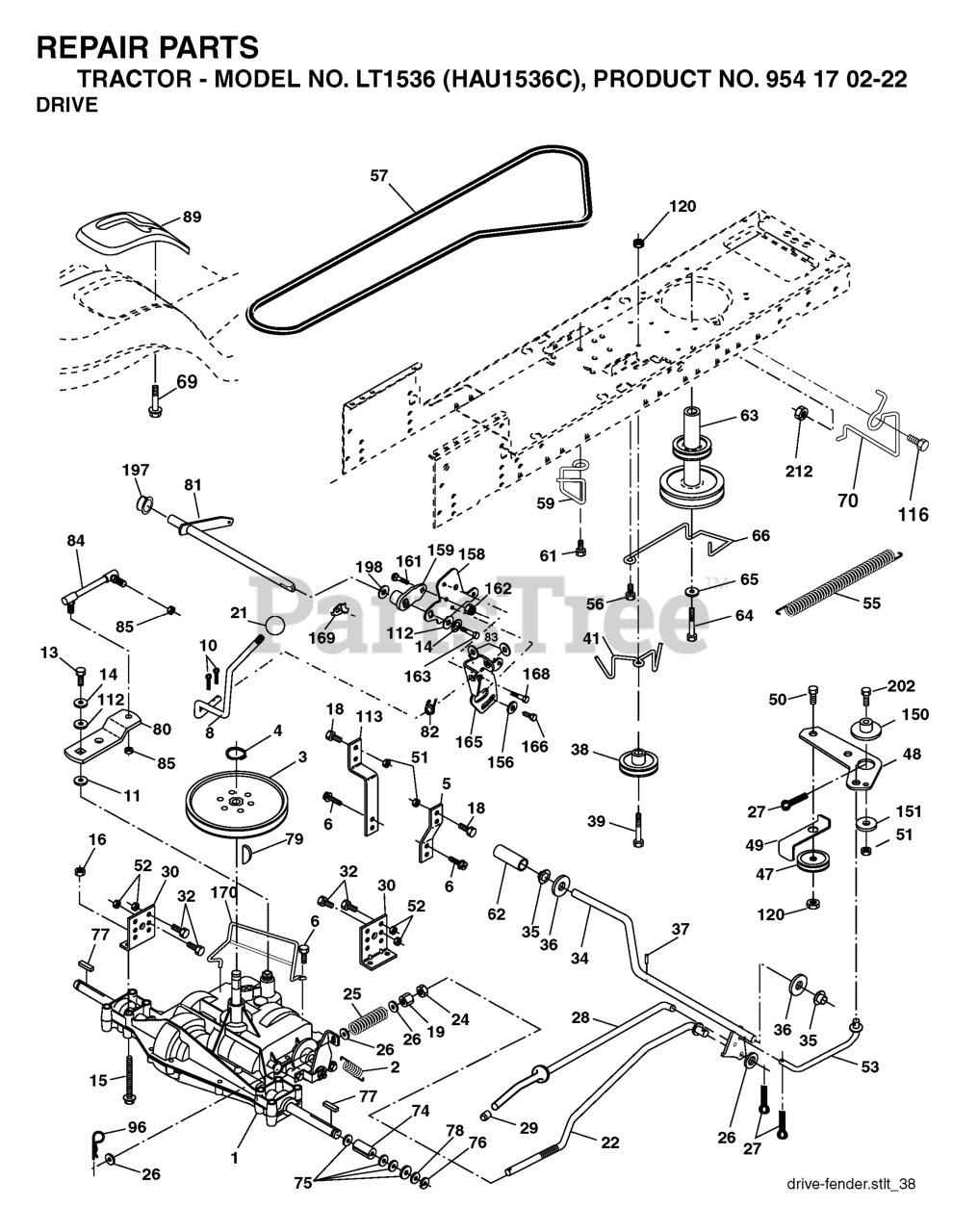

LT 1536 (954170222-C) - Husqvarna Lawn Tractor (2005-01) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title
50

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

158

Husqvarna 532165589

BRACKET
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 874550412

BOLT 1/4-28X3/4
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 14

0

120

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

56

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

8

Husqvarna 532192502

ROD.SHIFT.FENDER.ADJ.STLT

$

$

Not available

170

Husqvarna 532187414

KEEPER BELT T/A

$14.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

156

Husqvarna 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532169691

KEEPER, BELT CENTER

$26.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

19

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

159

Husqvarna 532183900

RB HUB.SHIFT
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

166

Husqvarna 817490510

CAPSCREW.HXHD.FLG.5/16-18X.625

$4.99

$

Usually ships in 3-10 days

0

198

Husqvarna 532169593

WASHER.NYL.7/8IDX.105"HYD CR

$11.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532154407

BELLCRANK, CLUTCH

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532105701

WASH-SHFT PLT LT

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 532165594

SHAFT ASM CROSS TAPERED

$37.99

$

Usually ships in 3-10 days

0

165

Husqvarna 532165623

RP BRACKET
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

80

$7.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

28

Husqvarna 532175765

ROD, PARKING BRAKE

$6.49

$

Usually ships in 3-10 days

0

96

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

85

Husqvarna 532150360

NUT LOCK CENTER 1/4 -28 FNTHD

$

$

Not available

2

Husqvarna 532146682

SPRING,BRAKE RETURN

$8.99

$

In Stock, only 2 left!

0

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 7

0

82

Husqvarna 532165711

SHIFT SPRING

$7.49

$

In Stock, only 1 left!

0

89

Husqvarna 532195720

CONSOLE.SHIFT.STLT.6SP
(Superseded to 583711301)

$18.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532174973

BRKT, MOUNT TRNSAXLE
(Superseded to 532130807)

$3.99

$

Usually ships in 3-10 days

0

161

Husqvarna 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532175556

KEEPER, BELT IDLER

$9.99

$

In Stock, only 1 left!

0

79

Husqvarna 532125096

KEY STD (1373) DANA

$9.49

$

In Stock, only 1 left!

0

83

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

57

Husqvarna 532130801

V-BELT
(Superseded to 532138255)

$39.99

$

In Stock, Qty 7

0

36

$6.49

$

Usually ships in 3-10 days

0

61

Husqvarna 817120614

SCREW 3/8-16X.875
(Superseded to 817490614)

$

$

Not available

49

Husqvarna 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532123666

PULLEY TRANS

$45.99

$

In Stock, only 1 left!

0

38

Husqvarna 532179114

PULLEY IDLER COMPOSITE

$31.99

$

Usually ships in 3-10 days

0

212

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

197

Husqvarna 532169613

NYLINER SNAP 5/8" ID

$7.49

$

In Stock, Qty 6

0

162

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

62

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$37.99

$

In Stock, only 2 left!

0

4

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 8

0

168

Husqvarna 532165492

BOLT.SHOULDER.5/16-18X

$10.99

$

In Stock, only 3 left!

0

116

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

6

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532175456

SPACER, RETAINER

$

$

Not available

76

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

27

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

51

$3.99

$

Usually ships in 3-10 days

0

169

Husqvarna 532165580

PLATE.FASTENING.CROSS.SHAFT

$6.99

$

Usually ships in 3-10 days

0

112

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532121520

STRAP TORQUE

$7.99

$

In Stock, only 3 left!

0

10

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532154778

KEEPER BELT ENGINE

$12.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532175410

ENGINE PULLEY

$87.99

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532175578

SHAFT, FOOT PEDAL

$31.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 9

0

84

Husqvarna 532166228

LINK.TRNSAXLE

$

$

Not available

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

70

Husqvarna 532134683

KEEPER BELT ENG

$

$

Not available

22

$31.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$10.99

$

Usually ships in 3-10 days

0

151

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

113

Husqvarna 532127285

STRAP TORQUE LH LT

$

$

Not available

69

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0
