LT 151 (960410017-03) - Husqvarna Lawn Tractor (2007-08) STEERING Parts Diagram

Lawn Tractor

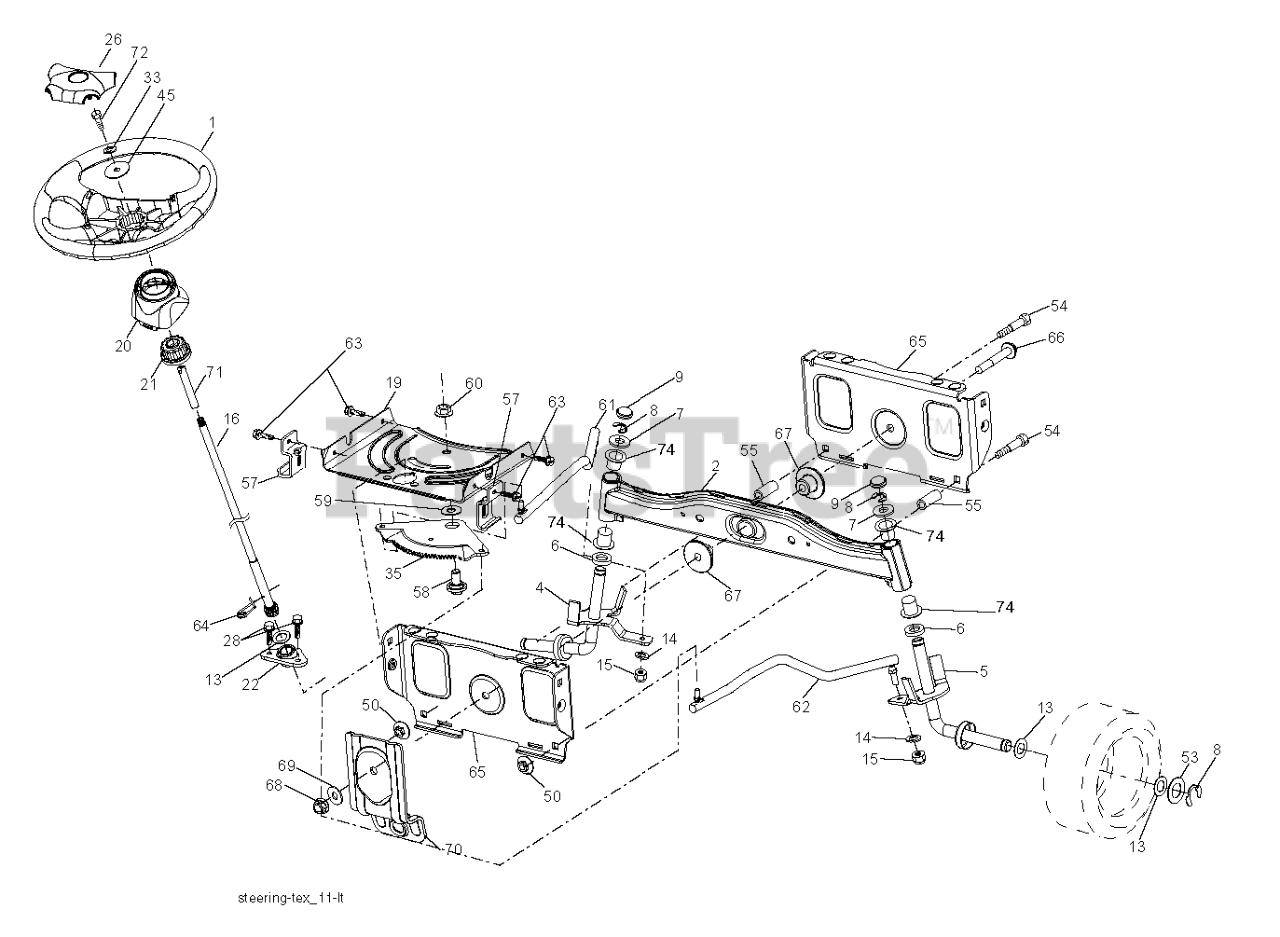

STEERING Parts Diagram

  • Title

14

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

67

Husqvarna 532194737

BUSHING.PM.FRONT AXLE

$

$

Not available

8

Husqvarna 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 8

0

2

Husqvarna 532195673

AXLE.HALF.ASM.WELDED
(Superseded to 532418168)

$68.99

$

In Stock, Qty 20+

0

61

Husqvarna 532194740

DRAGLINK.LH.BALLSTUD.D
(Superseded to 597047801)

$12.99

$

Usually ships in 3-10 days

0

50

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 532411139

BOOT, STEERING
(Superseded to 532441425)

$9.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532194732

GEAR.SECTOR.PLATE.DDL.

$31.99

$

In Stock, Qty 20+

0

45

Husqvarna 819113812

WASHER.11/32

$6.49

$

Usually ships in 3-10 days

0

69

Husqvarna 532199162

WASHER.1.5X.505X.118

$6.49

$

In Stock, only 1 left!

0

16

Husqvarna 532196074

SHAFT STEERING

$

$

Not available

22

Husqvarna 532194845

BUSHING.ASM.STEERING.A
(Superseded to 587738901)

$17.99

$

In Stock, only 4 left!

0

5

Husqvarna 532403088

SPINDLE.WELDED.RH.15"T
(Superseded to 538691201)

$22.99

$

In Stock, only 2 left!

0

6

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

7

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 532186737

ADAPTER, WHEEL STNG..
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

60

Husqvarna 873971000

NUT FLANGE LOCK 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, only 1 left!

0

59

Husqvarna 532194748

WASHER.THURST.SECTOR.S

$7.49

$

In Stock, only 3 left!

0

74

Husqvarna 532124937

BRNG T
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 532193652

INSERT.CAP.STRG.WH.GRAY

$13.99

$

In Stock, Qty 5

0

9

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 9

0

54

Husqvarna 874760636

BOLT

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532193943

WHEEL.STEERING.LEGEND2.GRY
(Superseded to 532186093)

$

$

Not available

72

Husqvarna 874780572

BOLT YT
(Superseded to 874780580)

$5.99

$

In Stock, only 1 left!

0

13

Husqvarna 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

70

Husqvarna 532196197

BRKT.DECK.SUSPENSION.F
(Superseded to 585338801)

$9.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532403087

SPINDLE.WELDED.LH.15"TEX
(Superseded to 596873601)

$17.99

$

In Stock, Qty 12

0

66

Husqvarna 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

$6.49

$

In Stock, only 4 left!

0

19

Husqvarna 532194729

PLATE.STEER.DDL.NLT/NG

$18.99

$

Usually ships in 3-10 days

0

28

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532194734

BRACE.AXLE.FRONT.NLT/N

$43.99

$

In Stock, only 1 left!

0

62

Husqvarna 532194741

DRAGLINK.RH.BALLSTUD.D

$13.99

$

In Stock, Qty 20+

0

53

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

68

Husqvarna 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 13

0

55

Husqvarna 532197636

SPACER.BRACE.AXLE (2 2)

$7.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532194747

BOLT.SHOULDER.SECTOR.P

$9.49

$

In Stock, only 3 left!

0

57

Husqvarna 532407465

BRACKET.UPSTOP.TEX

$6.99

$

In Stock, only 1 left!

0

63

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

71

Husqvarna 532196075

SHAFT EXTENSION STEERING

$18.99

$

In Stock, only 2 left!

0

15

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0
