LT 151 (960410017-01) - Husqvarna Lawn Tractor (2007-02) MOWER LIFT / DECK LIFT Parts Diagram

Lawn Tractor

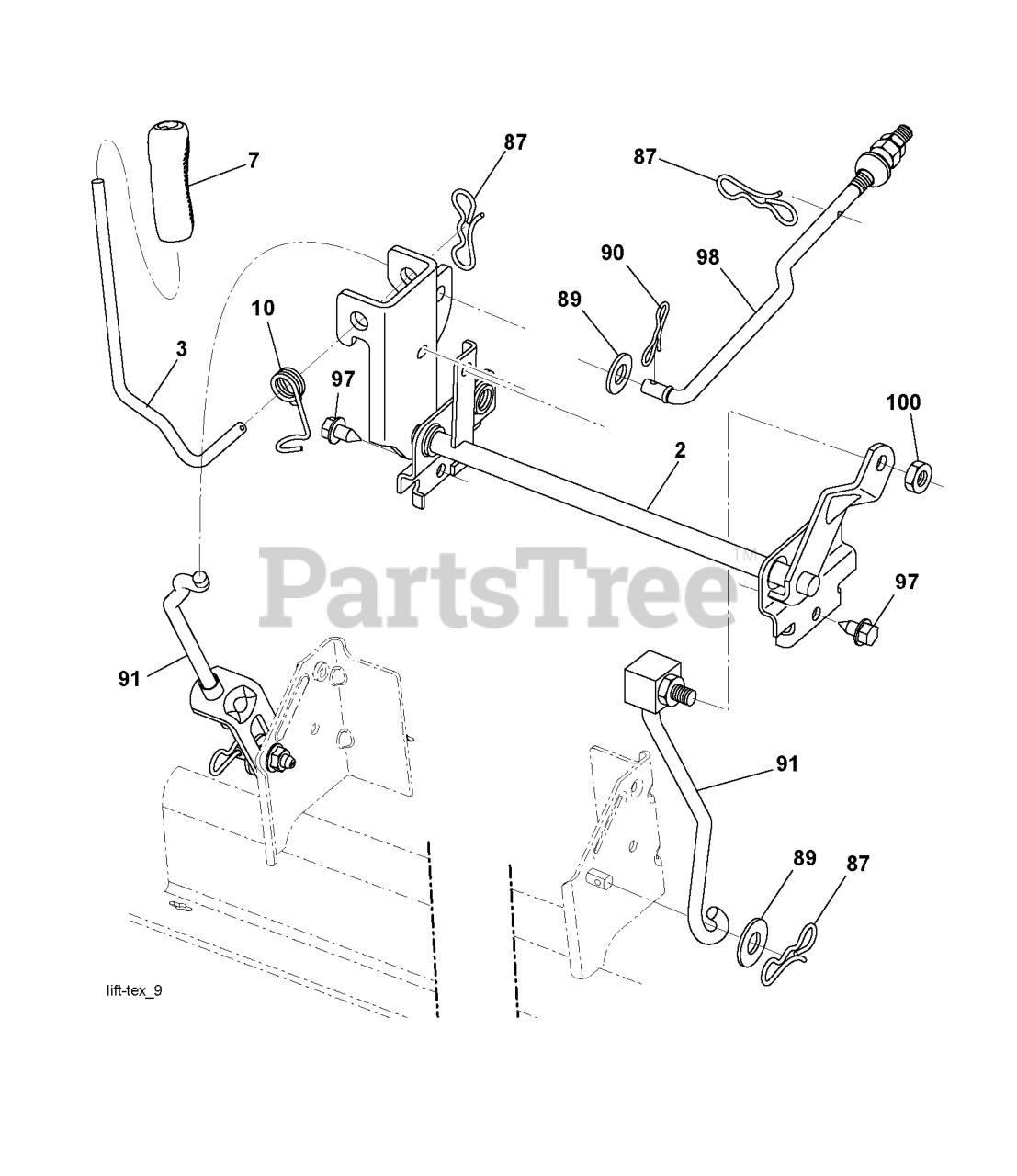

MOWER LIFT / DECK LIFT Parts Diagram

  • Title
7

Husqvarna 532196492

GRIP.LEVER.5625.ID
(Superseded to 532411555)

$9.49

$

In Stock, only 2 left!

0

2

Husqvarna 532195223

SHAFT.ASM.LIFT.CROSS.H
(Superseded to 532422027)

$80.99

$

In Stock, only 2 left!

0

89

Husqvarna 819191912

WASHER.CLEAR.ZINC

$6.49

$

In Stock, Qty 10

0

98

Husqvarna 532195270

LINK.ASM.SUSP.FRONT.MW
(Superseded to 581506903)

$11.99

$

In Stock, Qty 11

0

3

Husqvarna 532195231

LEVER.LIFT.HANDLE.LT

$

$

Not available

90

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

100

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

97

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

91

Husqvarna 532195179

LIFT LINK SUSP. MOWER REAR
(Superseded to 532195181)

$

$

Not available

10

Husqvarna 532196314

SPRING.TORSION.LIFT.HANDLE

$6.49

$

In Stock, only 2 left!

0

87

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, Qty 7

0
