LT 151 (960410017-00) - Husqvarna Lawn Tractor (2007-02) ENGINE Parts Diagram

Lawn Tractor

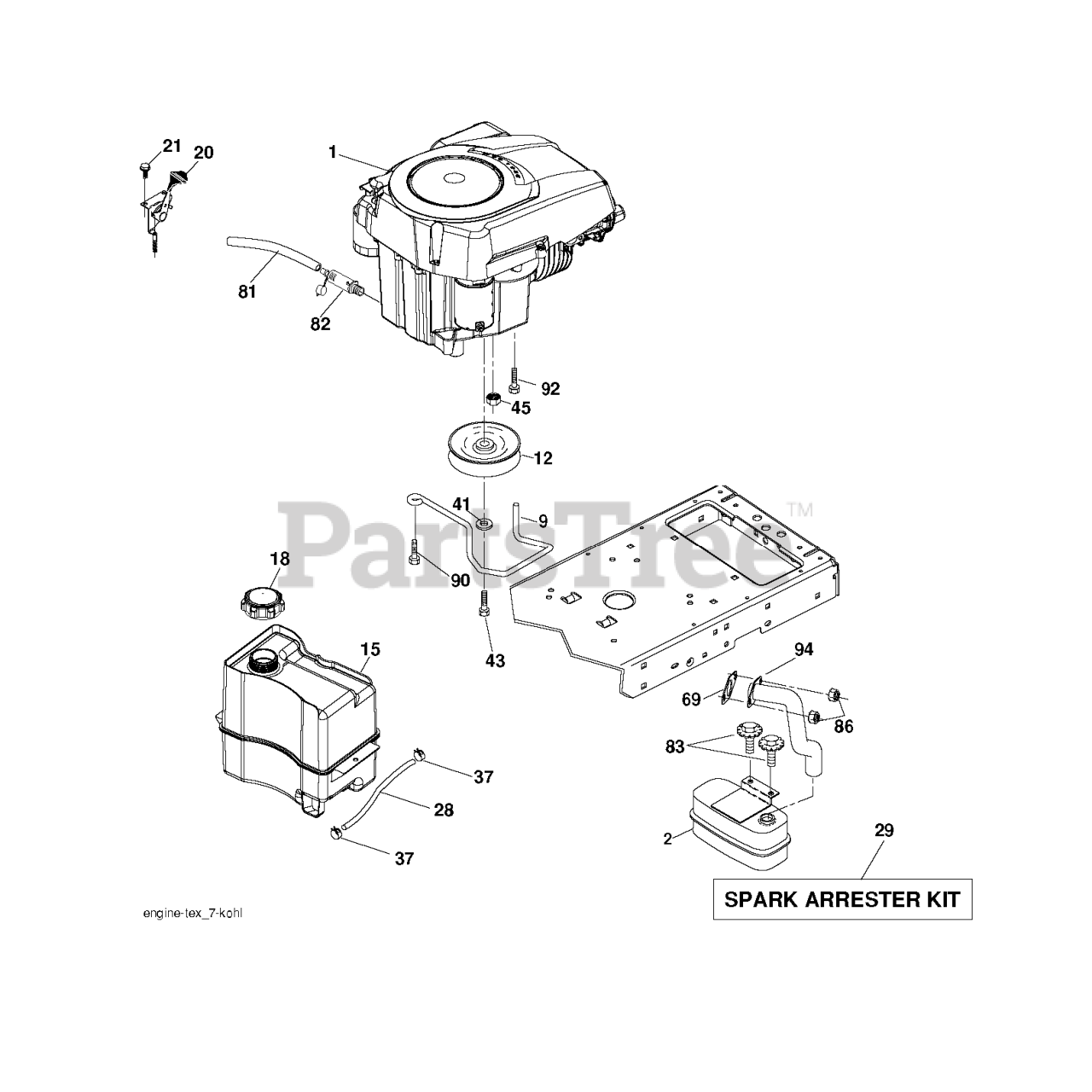

ENGINE Parts Diagram

  • Title
29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

18

Husqvarna 532197725

FUEL CAP
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

1

NEEDS DESCRIPTION

Note: Engine Kohler Model No. SV470

$

$

Not available

9

Husqvarna 532194319

KEEPER.BELT.ENGINE.3.25 (3 2)

$13.99

$

In Stock, only 1 left!

0

2

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$45.99

$

In Stock, only 2 left!

0

41

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

83

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 3 left!

0

82

Husqvarna 181654

Plug Drain Oil

$47.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$37.99

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 148456

Tube Drain Oil Easy
(Superseded to 532148456)

$6.99

$

In Stock, only 4 left!

0

15

Husqvarna 532407545

RP TANK FUEL FRT 1.5 GAL
(Superseded to 581289901)

$87.99

$

In Stock, only 1 left!

0

43

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 532401985

PULLEY ENGINE
(Superseded to 586729001)

$40.99

$

In Stock, only 1 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 19

0

21

Husqvarna 532191611

SCREW
(Superseded to 532416358)

$

$

Not available

94

Husqvarna 532188654

RP.TUBE.EXHAUST.KOHL.COURAGE
(Superseded to 583955301)

$34.99

$

In Stock, only 2 left!

0

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0
