LT 150H38HKV (84722) - Snapper 38" Lawn Tractor, 15hp ELECTRICAL SCHEMATIC (Series H) Parts Diagram

38" Lawn Tractor, 15hp

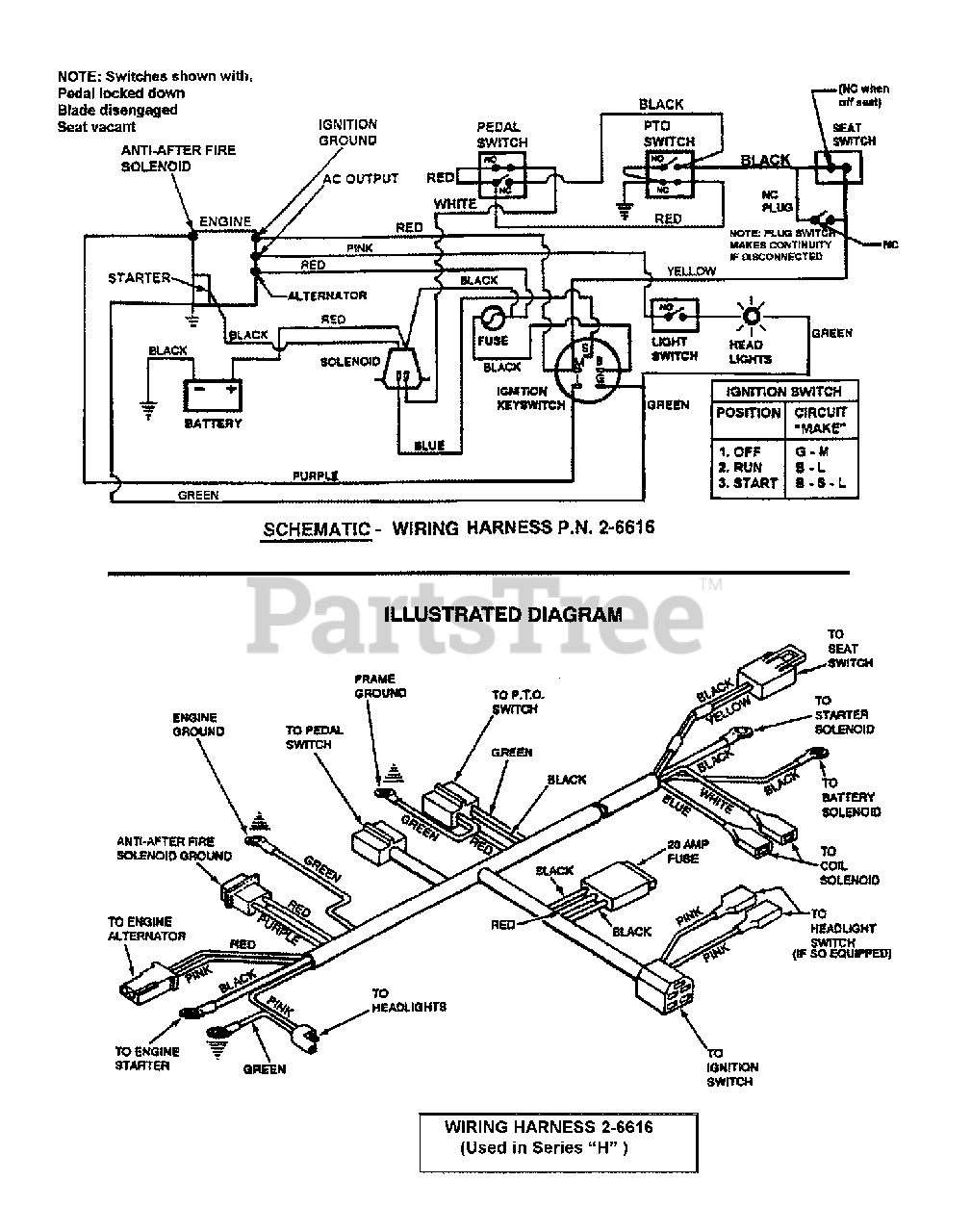

ELECTRICAL SCHEMATIC (Series H) Parts Diagram

  • Title

Snapper 7026616

HARNESS, Main B&S 14HP OHV

Note: used on Series "H" Models

$

$

Not available
