LT-1500 (13AP606G190) - White Outdoor 42" Lawn Tractor (2002) Engine Accessories Parts Diagram

42" Lawn Tractor

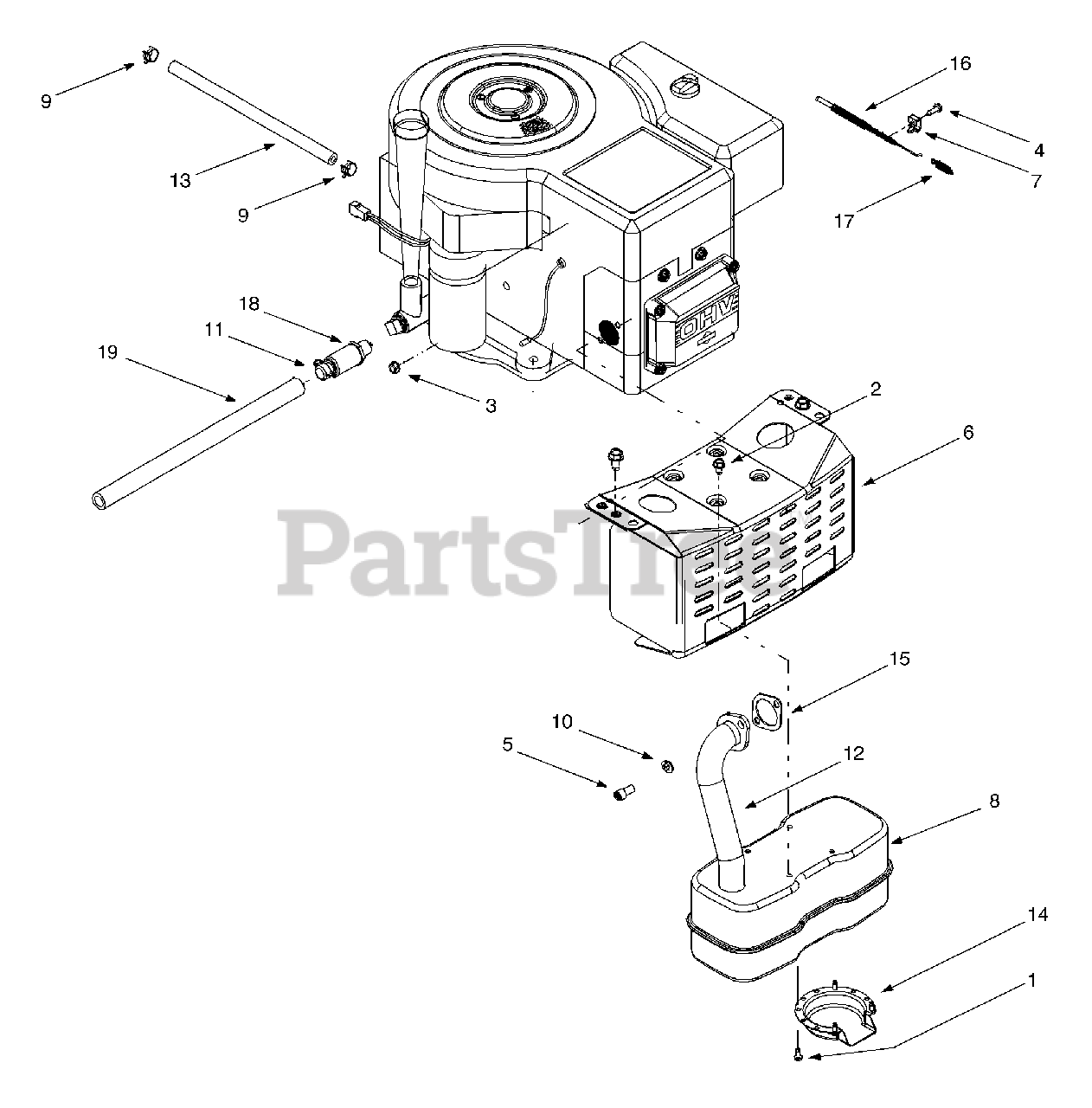

Engine Accessories Parts Diagram

  • Title

1

White Outdoor 710-0227

Self-tapping Screw, #8-18 x .50

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

4

White Outdoor 710-1237

Screw, #10-32 x .625

$4.49

$

Usually ships in 3-6 days

0

5

White Outdoor 710-1314A

Socket Cap Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 783-0615B

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

White Outdoor 783-0615B-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

7

White Outdoor 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

8

White Outdoor 751-0617

Muffler, Single Inlet
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

9

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

White Outdoor 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

12

White Outdoor 751-0619

Exhaust Pipe
(Superseded to 751-0619B)

$76.99

$

In Stock, only 2 left!

0

13

751-0535

Fuel Line Hose

$

$

Not available

14

White Outdoor 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 3 left!

0

15

White Outdoor 721-0208

Exhaust Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

16

White Outdoor 746-1084

Throttle Cable
(Superseded to 946-1084)

$32.99

$

Usually ships in 3-6 days

0

17

White Outdoor 732-0966

Extension Spring, .275 x 1.25

$

$

Not available

18

White Outdoor 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

19

White Outdoor 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0
