LT-1500 (13AP606G190) - White Outdoor 42" Lawn Tractor (2002) Drive & Rear Wheels Parts Diagram

42" Lawn Tractor

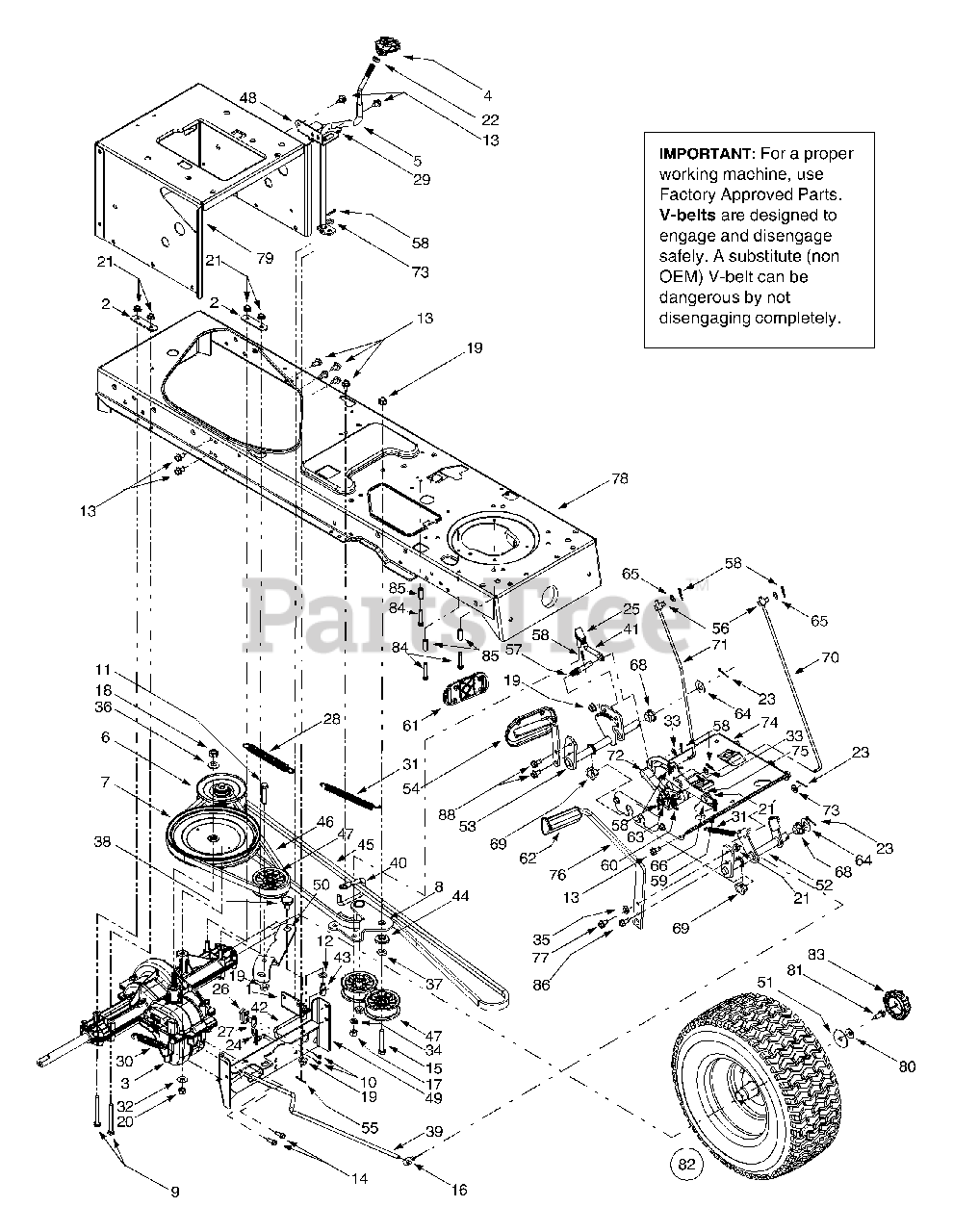

Drive & Rear Wheels Parts Diagram

  • Title

1

White Outdoor 783-1015

Shift Lever Support
(Superseded to 783-1015-0637)

Variations

White Outdoor 783-1015-0637

BRACKET-SHFT LVR S - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

2

White Outdoor 17840

Transaxle Mounting Bracket
(Superseded to 17840-0637)

Variations

White Outdoor 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

3

White Outdoor 618-0551

Single-speed Transmission Assembly
(Superseded to 918-0551A)

$

$

Not available

4

White Outdoor 631-0009A

Shifter Knob
(Superseded to 931-0009A)

$14.99

$

In Stock, only 4 left!

0

5

White Outdoor 647-0045

Shift Lever

$

$

Not available

6

White Outdoor 656-0048

Variable-speed Pulley Assembly
(Superseded to 956-0048)

$

$

Not available

7

White Outdoor 656-0051A

Transmission Pulley, 8.5 x .5-36

$

$

Not available

8

White Outdoor 683-0251

Double-idler Bracket

$

$

Not available

9

White Outdoor 710-0176

Hex Cap Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

10

White Outdoor 710-0227

Self-tapping Screw, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

12

White Outdoor 736-0272

Flat Washer, .51 x 1.0 x .060

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 710-3011

Hex Cap Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

16

White Outdoor 711-0677

Ferrule, 5/16-18
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

17

White Outdoor 712-0241

Hex Nut, 3/8-24

$4.49

$

In Stock, Qty 13

0

18

White Outdoor 712-0378

Hex Nut, 7/16-20

$6.99

$

Usually ships in 3-6 days

0

19

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 712-3017

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor 712-3008

Jam Nut, 3/8-16

$4.99

$

In Stock, Qty 16

0

23

White Outdoor 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

24

White Outdoor 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

25

White Outdoor 723-3018

Ball Joint
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

26

White Outdoor 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

27

White Outdoor 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

28

White Outdoor 732-0384

Extension Spring, .62 Dia. x 6.12
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 12

0

29

White Outdoor 732-0525

Compression Spring Clip

$10.99

$

In Stock, only 1 left!

0

30

White Outdoor 732-0716

Extension Spring, .59 OD x 4
(Superseded to 732-0716D)

$13.99

$

Usually ships in 3-6 days

0

31

White Outdoor 732-0963

Extension Spring, .50 Dia. x 6.37

Note: (Hooks to flange in frame)

$9.99

$

In Stock, only 4 left!

0

32

White Outdoor 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 736-0140

Flat Washer, .385 x .62 x .063

$7.49

$

In Stock, Qty 7

0

34

White Outdoor 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

35

White Outdoor 736-3008

Flat Washer, .344 x .750 x .120
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

36

White Outdoor 736-0407

Bell Washer, .45 x 1.0 x .602

$3.99

$

In Stock, Qty 12

0

37

White Outdoor 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, Qty 20+

0

38

White Outdoor 738-0322

Shoulder Screw, .625 x .217
(Superseded to 738-0322A)

$6.99

$

In Stock, only 3 left!

0

39

White Outdoor 747-1122

Brake Rod

$

$

Not available

40

White Outdoor 747-1123A

Belt Guard

$

$

Not available

41

White Outdoor 747-1127

Idler Adjustment Rod, 3/8

$42.99

$

Usually ships in 3-6 days

0

42

White Outdoor 647-0047A

Shift Rod

$

$

Not available

43

White Outdoor 711-0736

Adjustment Ferrule, 1/4-20 x 1.0

$13.99

$

In Stock, only 2 left!

0

44

White Outdoor 738-0372A

Shoulder Spacer, .38 ID
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

45

White Outdoor 754-0467

Lower Drive Belt
(Superseded to 954-0467A)

$50.99

$

In Stock, Qty 20+

0

46

White Outdoor 754-0468

Upper Drive Belt
(Superseded to 954-0468)

$30.99

$

In Stock, Qty 13

0

47

White Outdoor 756-0981A

Flat Idler, 2.75 OD
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

48

White Outdoor 783-1016B

Speed Control Rod Bracket

$

$

Not available

49

White Outdoor 783-0667B

Transmission Torque Bracket

Variations

White Outdoor 783-0667B-0637

Trans Torque Bracket - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0667B-4008

BRACKET-TRANS TORQUE - WINE RED (4008)

$

$

Not available

$40.99

$

Usually ships in 3-6 days

0

50

White Outdoor 783-0669

Idler Bracket
(Superseded to 783-0669-0637)

Variations

White Outdoor 783-0669-0637

Idler Bracket - POWDER BLACK (0637)

$20.99

$

In Stock, only 1 left!

0

$20.99

$

In Stock, only 1 left!

0

51

White Outdoor 736-0430

Flat Washer, .350 x 1.59 x .062

$4.49

$

In Stock, Qty 10

0

52

White Outdoor 647-0031

Brake Control Assembly
(Superseded to 753-05606)

$

$

Not available

53

White Outdoor 647-0032

Speed Control Assembly
(Superseded to 647-0032A-0637)

$

$

Not available

54

White Outdoor 683-0266

Drive Pedal Assembly

$

$

Not available

55

White Outdoor 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 711-0736

Ferrule, 1/4-20

$13.99

$

In Stock, only 2 left!

0

57

White Outdoor 711-1363

Pin, 3/8-16 x 2.43

$4.49

$

Usually ships in 3-6 days

0

58

White Outdoor 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 732-0437

Compression Spring, .34 OD x 1.0

$10.99

$

In Stock, only 1 left!

0

60

White Outdoor 732-0955

Extension Spring, .50 OD x 1.41

$9.99

$

In Stock, only 1 left!

0

61

White Outdoor 735-0662

Drive Pedal Pad

$11.99

$

Usually ships in 3-6 days

0

62

White Outdoor 735-3049

Brake Pedal Pad
(Superseded to 735-3049A)

$12.99

$

In Stock, only 1 left!

0

63

White Outdoor 736-0142

Flat Washer, .281 x .5 x .063

$4.99

$

In Stock, Qty 20+

0

64

White Outdoor 736-0187

Flat Washer, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

65

White Outdoor 736-0204

Flat Washer, .344 x .062 x .03

$4.49

$

In Stock, Qty 20+

0

66

White Outdoor 738-0155

Shoulder Screw, .437 x 1.62
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

67

White Outdoor 738-0507B

Shoulder Screw, .5 x .434

$4.49

$

In Stock, Qty 20+

0

68

White Outdoor 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

69

White Outdoor 741-3065A

Split Hex Flange Bearing
(Superseded to 741-3065B)

$8.49

$

In Stock, Qty 20+

0

70

White Outdoor 747-1137

Cruise Control Rod

$

$

Not available

71

White Outdoor 747-1138

Brake Lock Control Rod

$

$

Not available

72

White Outdoor 748-0413

Cruise Latch

$32.99

$

Usually ships in 3-6 days

0

73

White Outdoor 736-0275

Flat Washer, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

74

White Outdoor 783-0653E

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

White Outdoor 783-0653E-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

75

White Outdoor 783-0732

Drive Lockout Bracket
(Superseded to 783-0732A)

$34.99

$

Usually ships in 3-6 days

0

76

White Outdoor 783-0773

Brake Pedal

Variations

White Outdoor 783-0773-0498

Service Kit - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0773-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0773-0650

Service Kit - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0773-0665

Service Kit - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0773-0691

Service Kit - BLACK JACK (0691)

$

$

Not available

$

$

77

White Outdoor 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

78

White Outdoor 683-0304

Lower Frame Assembly

Variations

White Outdoor 683-0304-0637

LOWER FRAME ASSY POWDER BLACK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0304-0650

LOWER FRAME ASSY POWDER BLACK - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0304-0665

LOWER FRAME ASSY POWDER BLACK - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 683-0304-0691

LOWER FRAME ASSY POWDER BLACK - BLACK JACK (0691)

$

$

Not available

$

$

79

White Outdoor 783-1031A

Hitch Plate

Variations

White Outdoor 783-1031A-0691

HITCH PLATE-UPPER - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-1031A-0637

HITCH PLATE-UPPER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-1031A-0650

HITCH PLATE-UPPER - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-1031A-0665

HITCH PLATE-UPPER - YARDMAN GREEN (0665)

$

$

Not available

$

$

80

White Outdoor 736-0242

Bell Washer, .34 x .872

$4.49

$

In Stock, Qty 20+

0

81

White Outdoor 710-0627

Hex Cap Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

82

White Outdoor 634-0104

Wheel Assembly Complete 20 x 8 x 8 Square Shoulder

Variations

White Outdoor 634-0104-0911

WHEEL ASSY 20X8 - Carlisle Gray (0911)

$144.99

$

In Stock, only 1 left!

0

White Outdoor 634-0104-0912

WHL ASSY 20 X 8 - Dico Gray (0912)

$144.99

$

In Stock, only 1 left!

0

White Outdoor 634-0104-0914

WHL ASSY 20 X 8 - Cheng Gray (0914)

$144.99

$

In Stock, only 1 left!

0

White Outdoor 634-0104-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

In Stock, only 1 left!

0

White Outdoor 634-0104-0916

WHL ASSY 20 X 8 - Kenda Gray (0916)

$548.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0931

Wheel Assembly, 20 - Carlisle Beige (0931)

$144.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0941

WHL ASSY 20 X 8 - Carlisle Yellow (0941)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0942

WHEEL ASSY W/TIRE - Dico Yellow (0942)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0945

WHL ASSY 20 X 8 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0961

WHEEL ASM-20 X 8 - Carlisle Gray (0961)

$144.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0991

WHEEL ASM COMP-20 - Carlisle White (0991)

$155.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-4009

WHEEL ASM COMP-20 - TEE WHITE (4009)

$155.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-4028

WHEEL ASSY COMP-20 - SEARS YELLOW (4028)

$550.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0981

No Longer Available WHEEL ASM COMP-20 - Carlisle Green (0981)

$

$

Not available

$445.99

$

Usually ships in 3-6 days

0

82

White Outdoor 634-0070

Rim Assembly Only
(Superseded to 634-04369)

Variations

White Outdoor 634-0070-4009

WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0499

WHEEL RIM - CUB BEIGE (0499)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0629

WHEEL RIM - SILVER FLAKE (0629)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0662

WHEEL RIM - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0070-0688

WHEEL RIM - SPRING GREEN (0688)

$165.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

82

White Outdoor 734-0255

Air Valve (Not Shown)
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

82

White Outdoor 734-1730

Tire Only, 20 x 8 x 8, Square Shoulder

Variations

White Outdoor 734-1730-0901

Tire, 20 X 8 X 8 - Carlisle (0901)

$99.99

$

In Stock, only 1 left!

0

White Outdoor 734-1730-0904

Tire, 20 X 8 X 8 - Cheng (0904)

$99.99

$

In Stock, only 1 left!

0

White Outdoor 734-1730-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

White Outdoor 734-1730-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1730-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

$99.99

$

In Stock, only 1 left!

0

83

White Outdoor 731-2290A

Deluxe Hub Cap (Ref. 51 Required)
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

84

White Outdoor 710-0809

Self-tapping Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

85

White Outdoor 750-0566A

Spacer

$9.99

$

In Stock, only 1 left!

0

86

White Outdoor 710-0650

Self-tapping Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

88

White Outdoor 710-0604A

Hex Screw 5/16-18

$4.49

$

In Stock, Qty 20+

0
