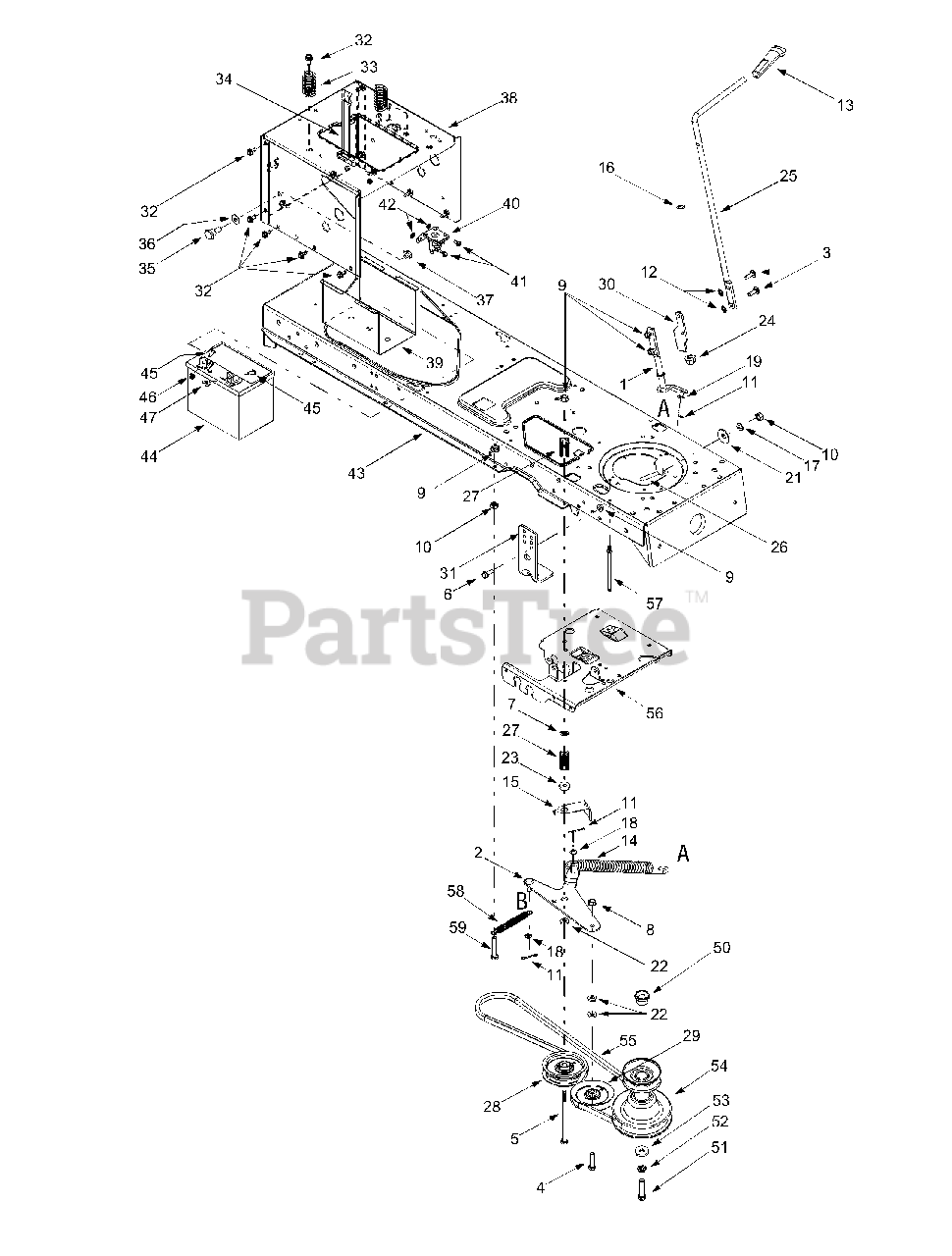

LT-1500 (13AP606G190) - White Outdoor 42" Lawn Tractor (2001) PTO Drive, Battery, Lower Frame Parts Diagram

42" Lawn Tractor

PTO Drive, Battery, Lower Frame Parts Diagram

  • Title

1

White Outdoor 647-0046A

PTO Engage Lever Assembly
(Superseded to 647-0064)

$

$

Not available

2

White Outdoor 683-0450

PTO Engage Plate Assembly

Variations

White Outdoor 683-0450-0637

PLATE ASSY-ENGAGE - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 710-0276

Carriage Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 12

0

4

White Outdoor 710-0520

Hex Cap Screw, 3/8-16 x 1.5

$4.49

$

In Stock, Qty 6

0

5

White Outdoor 710-0831

Hex Cap Screw, 3/8-16 x 5.5

$

$

Not available

6

White Outdoor 710-1238

Hex Head Washer Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 726-0201

Speed Nut, .3125

$6.99

$

Usually ships in 3-6 days

0

13

White Outdoor 731-2111A

PTO Knob
(Superseded to 731-2111B)

$

$

Not available

14

White Outdoor 732-0944

Extension Spring, .75 x 6.75

$10.99

$

In Stock, only 1 left!

0

15

White Outdoor 732-0991A

Belt Guard

$14.99

$

Usually ships in 3-6 days

0

16

White Outdoor 736-0108

Flat Washer, .510 x .750 x .033

$6.99

$

Usually ships in 3-6 days

0

17

White Outdoor 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-0140

Flat Washer, .385 x .62 x .063

$7.49

$

In Stock, Qty 7

0

19

White Outdoor 736-0275

Flat Washer, 5/16

$6.99

$

Usually ships in 3-6 days

0

?20

White Outdoor 736-3000

Flat Washer, .406 x .875 x .059
(Superseded to 936-0176)

$4.99

$

In Stock, Qty 6

0

21

White Outdoor 736-0331

Bell Washer, .39 x 1.13 x .062

$3.99

$

In Stock, Qty 16

0

22

White Outdoor 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, only 2 left!

0

23

White Outdoor 738-0372

Shoulder Spacer, .380
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

24

White Outdoor 741-0708

Hex Split Flange Bearing, .5

$4.49

$

In Stock, only 1 left!

0

25

White Outdoor 747-1112D

PTO Engage Handle
(Superseded to 747-1112D-0637)

Variations

White Outdoor 747-1112D-0637

PTO Engagement Handle - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

26

White Outdoor 747-1286

Belt Keeper Rod
(Superseded to 747-1286A)

$

$

Not available

27

White Outdoor 748-0415A

Spacer, 3/8 x 1.54
(Superseded to 748-0415B)

$7.49

$

In Stock, Qty 10

0

28

White Outdoor 756-0627B

Idler Pulley, 3.5
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

29

White Outdoor 756-1208

Idler Pulley, 4.0

$35.99

$

In Stock, Qty 5

0

30

White Outdoor 783-0744A

Engagement Stop

Variations

White Outdoor 783-0744A-0637

Stop Bracket - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0744A-4008

BRACKET-STOP - WINE RED (4008)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

31

White Outdoor 783-0891B

Deck Stop

Variations

White Outdoor 783-0891B-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0891B-0665

Deck Up-Stop Bracket - YARDMAN GREEN (0665)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0891B-0498

BRACKET-DECK UP STOP - OLD CUB YELLOW (0498)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0891B-0691

BRACKET-DECK STOP - BLACK JACK (0691)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0891B-0650

BRACKET-DECK STOP - RED METALLIC (0650)

$

$

Not available

$30.99

$

Usually ships in 3-6 days

0

32

White Outdoor 710-0604A

Self Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 732-3080

Compression Spring, 1.28 x 3.5
(Superseded to 732-3080A)

$13.99

$

In Stock, Qty 12

0

34

White Outdoor 723-0444

Battery Strap

$22.99

$

Usually ships in 3-6 days

0

35

White Outdoor 738-1020

Shoulder Screw, .625 x .5, 7/16-20

$7.49

$

Usually ships in 3-6 days

0

36

White Outdoor 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, only 2 left!

0

37

White Outdoor 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

38

White Outdoor 783-1031

Hitch Plate

Variations

White Outdoor 783-1031-0637

HITCH PLATE-UPPER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-1031-0650

HITCH PLATE-UPPER - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-1031-0665

HITCH PLATE-UPPER - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-1031-0691

HITCH PLATE-UPPER - BLACK JACK (0691)

$

$

Not available

$

$

39

White Outdoor 783-0349

Battery Tray

Variations

White Outdoor 783-0349-4008

TRAY-BATTERY 400 S - WINE RED (4008)

$

$

Not available

White Outdoor 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

40

White Outdoor 725-1426

Solenoid, 12-Volt, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

41

White Outdoor 710-0599

Self Tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 736-0222

Lock Washer, 1/4

$5.99

$

In Stock, only 3 left!

0

43

White Outdoor 683-0304

Lower Frame Assembly

Variations

White Outdoor 683-0304-0637

LOWER FRAME ASSY POWDER BLACK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0304-0650

LOWER FRAME ASSY POWDER BLACK - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0304-0665

LOWER FRAME ASSY POWDER BLACK - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 683-0304-0691

LOWER FRAME ASSY POWDER BLACK - BLACK JACK (0691)

$

$

Not available

$

$

44

White Outdoor 725-1706

12-volt Battery, 270 CCA
(Superseded to 925-1707D)

$

$

Not available

45

White Outdoor 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

46

White Outdoor 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 10

0

47

White Outdoor 712-3044

Wing Nut, 1/4-20

$

$

Not available

50

750-0596

Spacer Cup

$

$

Not available

51

White Outdoor 710-3029

Hex Head Cap Screw, 7/16-20 x 1.25

$4.49

$

In Stock, Qty 12

0

52

White Outdoor 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, only 4 left!

0

53

White Outdoor 736-0322

Flat Washer, .450 x 1.25

$9.49

$

In Stock, Qty 8

0

54

White Outdoor 756-0982A

Engine Pulley, 3.56 OD x 5.56
(Superseded to 756-0982B)

$72.99

$

In Stock, only 1 left!

0

55

White Outdoor 754-0497

PTO Belt
(Superseded to 954-0497)

$45.99

$

In Stock, Qty 19

0

56

White Outdoor 783-0653D

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

White Outdoor 783-0653D-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

57

White Outdoor 711-1044

Keeper Pin, 5/16 x 4.75
(Superseded to 711-1044A)

$8.99

$

In Stock, Qty 10

0

58

White Outdoor 732-1165

Extension Spring, .50 x 5.0
(Superseded to 732-04197)

$6.99

$

In Stock, Qty 12

0

59

White Outdoor 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 15

0
