LT-1500 (13A2606G190) - White Outdoor 42" Lawn Tractor (2003) Engine List 1 Parts Diagram

42" Lawn Tractor

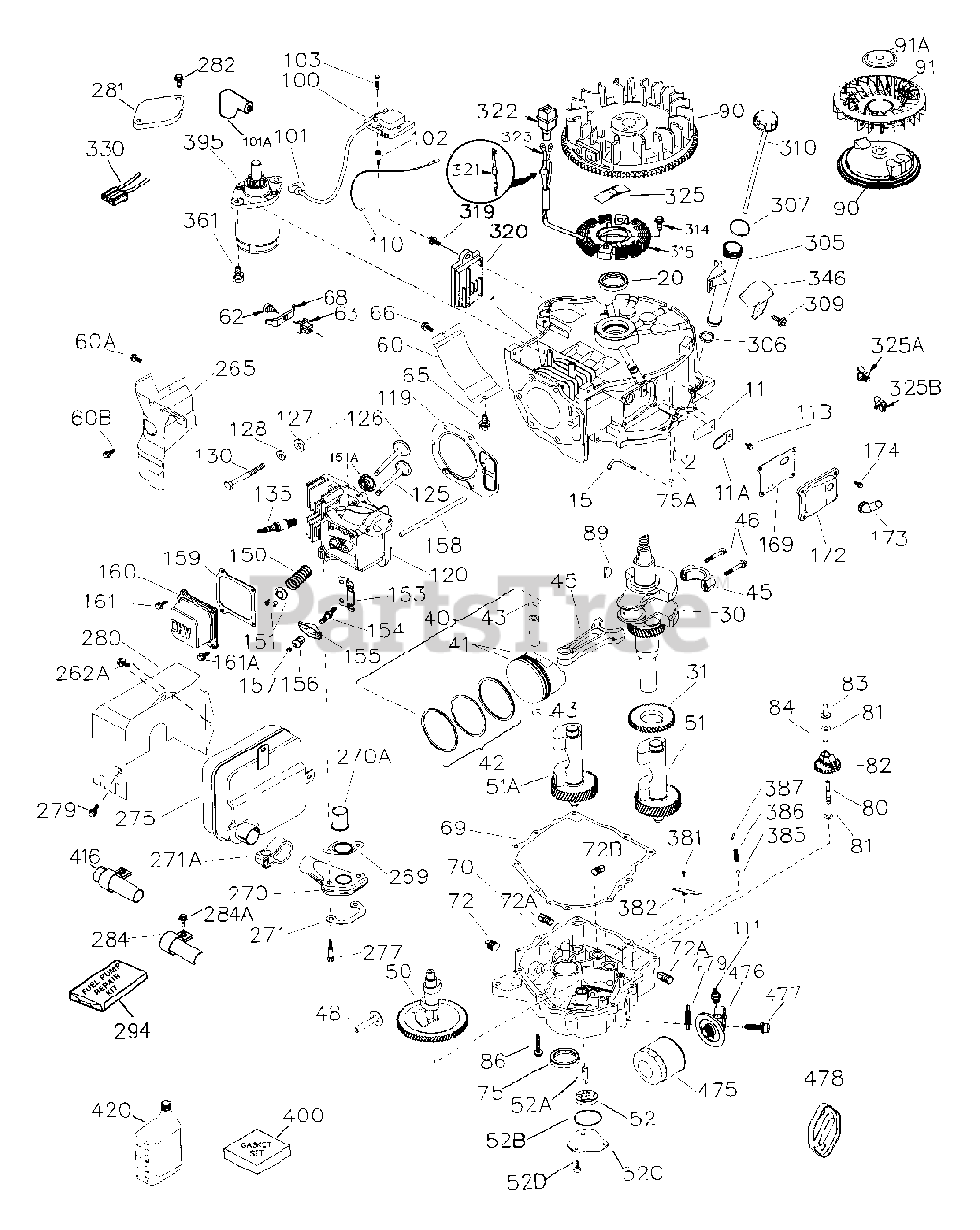

Engine List 1 Parts Diagram

  • Title

1

TC-37525A

Cylinder

Note: (Incl. 2, 11B, 20, 72B, & 314)

$

$

Not available

2

White Outdoor TC-27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

11

White Outdoor TC-36302

Check Valve

$1.99

$

In Stock, only 2 left!

0

11A

White Outdoor TC-36303

Breather Plate

$4.49

$

Usually ships in 3-12 days

0

11B

White Outdoor TC-650902

Screw, 10-32 x 7/16"

$1.99

$

Usually ships in 3-12 days

0

15

White Outdoor TC-37754

Governor Rod

$

$

Not available

20

White Outdoor TC-36301

Oil Seal

$9.49

$

In Stock, only 1 left!

0

30

White Outdoor TC-36308

Crankshaft

$

$

Not available

31

White Outdoor TC-36324

Counterbalance Gear
(Superseded to TC-36324A)

$

$

Not available

40

White Outdoor TC-36312

Piston, Pin & Ring Set (Std.)

$147.99

$

In Stock, only 1 left!

0

40

White Outdoor TC-36313

Piston, Pin & Ring Set (.010" OS)

$158.99

$

Usually ships in 3-12 days

0

40

White Outdoor TC-36314

Piston, Pin & Ring Set (.020" OS)

$

$

Not available

41

~N/A

Piston & Pin Ass'y (Std.) (.010" OS) (.020" OS)

Note: (Incl. 43)

$

$

Not available

42

White Outdoor TC-36315

Ring Set (Std.)

$

$

Not available

42

White Outdoor TC-36316

Ring Set (.010" OS)

$

$

Not available

42

White Outdoor TC-36317

Ring Set (.020" OS)

$

$

Not available

43

White Outdoor TC-35772

Piston Pin Retaining Ring

$1.99

$

In Stock, only 4 left!

0

45

White Outdoor TC-36318A

Connecting Rod

Note: (Incl. 46)

$152.99

$

Usually ships in 3-12 days

0

45

White Outdoor TC-36319A

Connecting Rod Ass'y. (.010" US)

Note: (Incl. 46)

$157.99

$

In Stock, only 1 left!

0

45

White Outdoor TC-36320A

Connecting Rod Ass'y. (.020" US)

Note: (Incl. 46)

$153.99

$

Usually ships in 3-12 days

0

46

White Outdoor TC-651063

Connecting Rod Bolt

$1.99

$

In Stock, only 3 left!

0

48

White Outdoor TC-36321

Valve Lifter

$10.99

$

In Stock, only 1 left!

0

51

White Outdoor TC-36323

Counterbalance Weight

$59.99

$

Usually ships in 3-12 days

0

51A

UNKNOWN

$

$

Not available

52

White Outdoor TC-37305

Oil Pump Ass'y.

$17.99

$

In Stock, only 1 left!

0

52A

White Outdoor TC-36331

Oil Pump Shaft

$5.49

$

Usually ships in 3-12 days

0

52B

White Outdoor TC-36333

"O" Ring

Note: Kit (P)

$3.99

$

Usually ships in 3-12 days

0

52C

White Outdoor TC-36334

Oil Pump Cover

Note: (Incl. 52B)

$3.99

$

Usually ships in 3-12 days

0

52D

White Outdoor TC-650888

Screw, T-30, 1/4-20 x 43/64"

$1.99

$

In Stock, only 1 left!

0

60

White Outdoor TC-36361

Air Baffle

$

$

Not available

60A

White Outdoor TC-650273

Screw, 5-16/18 x 17/32"

$1.99

$

In Stock, Qty 5

0

60B

TC-650867

Screw, 10-24 x 1/2"

$

$

Not available

62

UNKNOWN

$

$

Not available

63

UNKNOWN

$

$

Not available

65

White Outdoor TC-30063

Screw, T-30, 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 20+

0

66

White Outdoor TC-650737

Screw, 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 6

0

68

UNKNOWN

$

$

Not available

69

White Outdoor TC-36565

Mounting Flange Gasket

Note: Kit (P)

$3.99

$

Usually ships in 3-12 days

0

70

White Outdoor TC-37304A

Mounting Flange

Note: (Incl. 72B, 75, 80, 381-387)

$217.99

$

Usually ships in 3-12 days

0

72

UNKNOWN

$

$

Not available

72A

White Outdoor TC-28483

Oil Drain Plug

$1.99

$

Usually ships in 3-12 days

0

72B

White Outdoor TC-28534

Pipe Plug

$1.99

$

In Stock, only 4 left!

0

75

White Outdoor TC-36301

Oil Seal 75A TC-510337 Oil Seal

$9.49

$

In Stock, only 1 left!

0

75A

UNKNOWN

$

$

Not available

80

White Outdoor TC-35712

Governor Shaft

$3.99

$

Usually ships in 3-12 days

0

81

White Outdoor TC-35479A

Washer

$1.99

$

In Stock, Qty 8

0

82

White Outdoor TC-37756

Governor Gear Ass'y.

$15.99

$

Usually ships in 3-12 days

0

83

White Outdoor TC-35322

Governor Spool

$1.99

$

In Stock, Qty 5

0

84

White Outdoor TC-29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

86

White Outdoor TC-650970

Screw, 1/4-20 x 1-15/32"

$1.99

$

In Stock, Qty 9

0

89

White Outdoor TC-650592

Flywheel Key

$1.99

$

In Stock, Qty 5

0

90

White Outdoor TC-611243

Flywheel

$277.99

$

Usually ships in 3-12 days

0

91

White Outdoor TC-611241

Flywheel Fan
(Superseded to TC-611241A)

$15.99

$

Usually ships in 3-12 days

0

91A

White Outdoor TC-611242

Flywheel Fan Retainer

$5.49

$

Usually ships in 3-12 days

0

100

White Outdoor TC-36344A

Solid State Ignition

Note: (Incl. 101)

$81.99

$

In Stock, only 1 left!

0

101

White Outdoor TC-610118

Spark Plug Cover

$6.49

$

In Stock, only 3 left!

0

101A

UNKNOWN

$

$

Not available

102

White Outdoor TC-651024

Solid State Mounting Stud

$3.99

$

In Stock, only 2 left!

0

103

White Outdoor TC-651007

Screw, T-15, 10-24 x 15/16"

$1.99

$

In Stock, only 4 left!

0

110

White Outdoor TC-37494

Ground Wire

$

$

Not available

111

UNKNOWN

$

$

Not available

119

White Outdoor TC-37493

Cylinder Head Gasket

Note: Kit (P)

$9.49

$

Usually ships in 3-12 days

0

120

White Outdoor TC-37757

Cylinder Head

Note: (Incl. 119, 151A & 270A)

$

$

Not available

125

White Outdoor TC-35308

Exhaust Valve (Std.)

$70.99

$

Usually ships in 3-12 days

0

125

White Outdoor TC-35433

Exhaust Valve (1/32" OS)

$119.99

$

Usually ships in 3-12 days

0

126

White Outdoor TC-35309

Intake Valve (Std.)

$33.99

$

Usually ships in 3-12 days

0

127

White Outdoor TC-650691

Washer

$1.99

$

Usually ships in 3-12 days

0

128

White Outdoor TC-650690

Belleville Washer
(Superseded to TC-730324)

$9.99

$

In Stock, only 1 left!

0

130

White Outdoor TC-650946

Screw, 5/16-18 x 2-45/64"

$1.99

$

In Stock, Qty 10

0

135

White Outdoor TC-34645

Resistor Spark Plug (RN4C)
(Superseded to RN4C)

$4.49

$

In Stock, Qty 19

0

150

White Outdoor TC-33507

Valve Spring

$3.99

$

In Stock, only 1 left!

0

151

White Outdoor TC-33508

Valve Spring Keeper

$9.49

$

In Stock, only 2 left!

0

151A

White Outdoor TC-40046

Intake Valve Seal

$7.49

$

Usually ships in 3-12 days

0

153

White Outdoor TC-36339

Push Rod Guide

$3.99

$

Usually ships in 3-12 days

0

154

White Outdoor TC-651077

Rocker Arm Stud

$3.99

$

Usually ships in 3-12 days

0

155

White Outdoor TC-35950

Rocker Arm

$7.49

$

Usually ships in 3-12 days

0

156

White Outdoor TC-36341

Rocker Arm Bearing
(Superseded to TC-37843)

$5.49

$

Usually ships in 3-12 days

0

157

UNKNOWN

$

$

Not available

158

White Outdoor TC-36340

Push Rod

$11.99

$

Usually ships in 3-12 days

0

159

White Outdoor TC-35952

Rocker Arm Cover Gasket

Note: Kit (P)

$6.49

$

Usually ships in 3-12 days

0

160

White Outdoor TC-35953A

Rocker Arm Housing

$9.49

$

In Stock, only 1 left!

0

161

White Outdoor TC-30063

Screw, T-30, 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 20+

0

161A

UNKNOWN

$

$

Not available

169

White Outdoor TC-36304

Breather Gasket

Note: Kit (P)

$3.99

$

Usually ships in 3-12 days

0

172

White Outdoor TC-36305

Valve Cover

$5.49

$

Usually ships in 3-12 days

0

173

White Outdoor TC-36306

Breather Tube

$3.99

$

In Stock, only 3 left!

0

174

White Outdoor TC-30063

Screw, T-30, 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 20+

0

262A

UNKNOWN

$

$

Not available

265

White Outdoor TC-36615

Cylinder Head Cover

$

$

Not available

269

UNKNOWN

$

$

Not available

270

UNKNOWN

$

$

Not available

270A

White Outdoor TC-35829A

Exhaust Port Liner

$5.49

$

In Stock, only 2 left!

0

271

UNKNOWN

$

$

Not available

271A

UNKNOWN

$

$

Not available

275

UNKNOWN

$

$

Not available

277

UNKNOWN

$

$

Not available

279

UNKNOWN

$

$

Not available

280

UNKNOWN

$

$

Not available

281

UNKNOWN

$

$

Not available

282

UNKNOWN

$

$

Not available

284

UNKNOWN

$

$

Not available

284A

UNKNOWN

$

$

Not available

294

White Outdoor TC-35791

Pulse Pump Repair Kit

$71.99

$

In Stock, only 2 left!

0

305

White Outdoor TC-36349

Oil Fill Tube

$5.49

$

Usually ships in 3-12 days

0

306

White Outdoor TC-37401

"O" Ring

Note: Kit (P)

$3.99

$

Usually ships in 3-12 days

0

307

White Outdoor TC-35499

"O" Ring

$1.49

$

In Stock, only 3 left!

0

309

White Outdoor TC-650974

Screw, 1/4-20 x 57/64"

$1.99

$

Usually ships in 3-12 days

0

310

White Outdoor TC-36366

Dipstick

$5.49

$

Usually ships in 3-12 days

0

314

White Outdoor TC-651007

Screw, T-15, 10-24 x 15/16"

$1.99

$

In Stock, only 4 left!

0

315

White Outdoor TC-611280

Alternator Coil (3/5 Split)

Note: (Incl. 321, 322 & 323)

$100.99

$

Usually ships in 3-12 days

0

319

UNKNOWN

$

$

Not available

321

White Outdoor TC-611161

Diode

$17.99

$

Usually ships in 3-12 days

0

322

White Outdoor TC-611281

Connector Body

$

$

Not available

323

White Outdoor TC-611282

Terminal

$3.49

$

In Stock, only 1 left!

0

325

White Outdoor TC-36342

Wire Clip

$1.99

$

Usually ships in 3-12 days

0

325B

White Outdoor TC-37230

Wire Clip

$

$

Not available

320

UNKNOWN

$

$

Not available

325A

UNKNOWN

$

$

Not available

330

UNKNOWN

$

$

Not available

346

White Outdoor TC-36413

Fuel Pump Bracket

$9.99

$

Usually ships in 3-12 days

0

361

White Outdoor TC-650969

Screw, 15/16-18 x 29/32"

$1.99

$

Usually ships in 3-12 days

0

381

White Outdoor TC-650767

Screw, 8-32 x 27/64"

$1.49

$

In Stock, only 4 left!

0

382

White Outdoor TC-36328

Oil Strainer Screen

$1.99

$

In Stock, only 1 left!

0

385

White Outdoor TC-570673

Ball

$1.99

$

Usually ships in 3-12 days

0

386

White Outdoor TC-36329

Pressure Relief Spring

$1.99

$

In Stock, only 3 left!

0

387

White Outdoor TC-37652

Cotter Pin

$1.99

$

Usually ships in 3-12 days

0

395

White Outdoor TC-36795

Electric Starter Motor (12 Volt)

$249.99

$

Usually ships in 3-12 days

0

400

White Outdoor TC-37496

Gasket Set

Note: (Incl. Items Marked PK in Notes)

$18.99

$

Usually ships in 3-12 days

0

416

UNKNOWN

$

$

Not available

420

~N/A

SAE 30 4-Cycle Engine Oil (Quart)

$

$

Not available

475

White Outdoor TC-36563

Oil Filter

$14.99

$

In Stock, Qty 9

0

476

White Outdoor TC-37789

Oil Filter Adapter

Note: (Incl. 477 & 479)

$81.99

$

Usually ships in 3-12 days

0

477

White Outdoor TC-651087

Screw, T-30, 5/16-18 x 2"

$

$

Not available

478

UNKNOWN

$

$

Not available

479

White Outdoor TC-36335

Oil Filter Adapter Gasket

$1.99

$

In Stock, Qty 12

0
