LT 150 RD (2690916) - Murray 40" Lawn Tractor, Hydro Drive, 18hp, Seco (2010) Transmission SERVICE PARTS - Tuff Torq K46CW (1735476) Parts Diagram

40" Lawn Tractor, Hydro Drive, 18hp, Seco

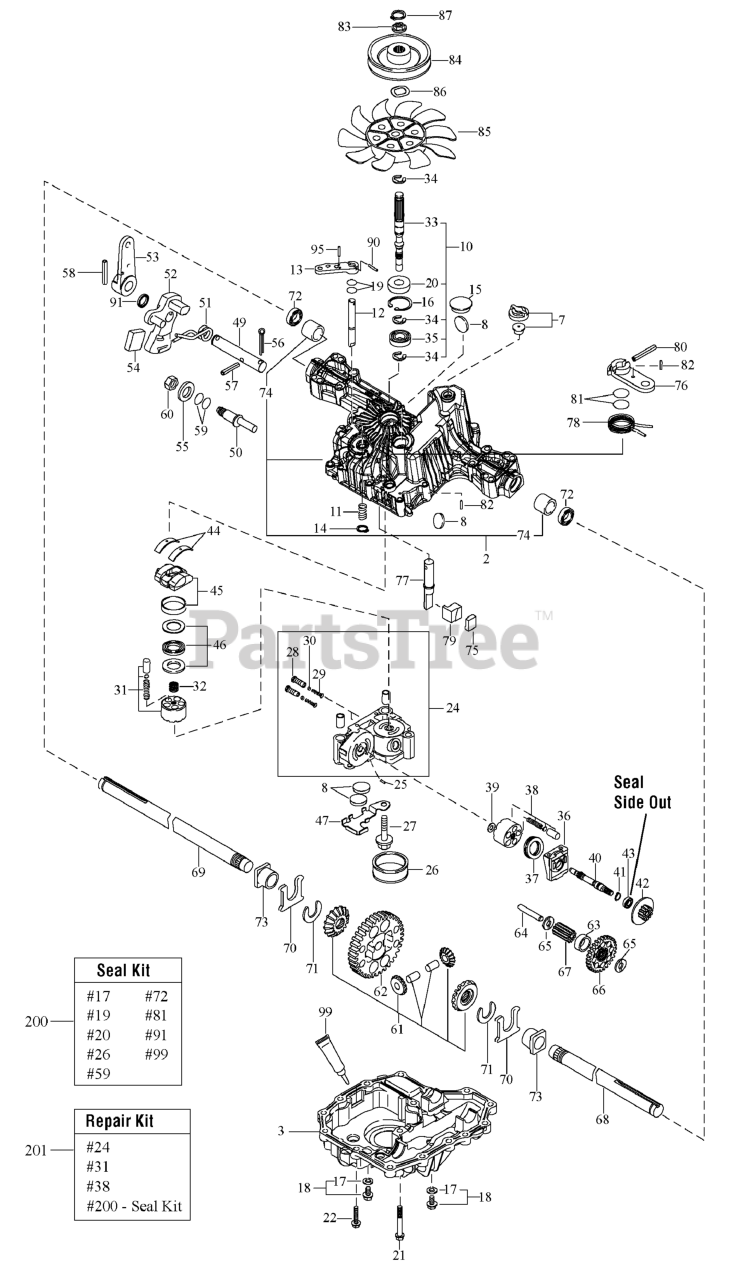

Transmission SERVICE PARTS - Tuff Torq K46CW (1735476) Parts Diagram

  • Title

2

*KIT, Upper Case

$

$

Not available

3

Murray 1724278SM

LOWER CASE

$114.99

$

In Stock, only 1 left!

0

7

Murray 1739891YP

VENT VALVE

$16.99

$

Usually ships in 2-12 days

0

8

Murray 1724279SM

MAGNET

$5.49

$

Usually ships in 2-12 days

0

10

SWITCH (see electrical group)

$

$

Not available

11

*SPRING 25

$

$

Not available

12

*BYPASS SHAFT

$

$

Not available

13

Murray 1720418SM

LEVER, Bypass

$14.99

$

Usually ships in 2-12 days

0

14

*RING, Snap, 10

$

$

Not available

15

Murray 1724282SM

SEALING CAP, 30
(Superseded to 1760090YP)

$15.99

$

In Stock, only 1 left!

0

16

Murray 1708650SM

RING, Snap, C 35

$4.99

$

Usually ships in 2-12 days

0

17

Murray 1724323YP

SEAL WASHER, 8

$9.99

$

Usually ships in 2-12 days

0

18

*KIT, Drain Bolt

$

$

Not available

19

*0-RING 1A P10A

$

$

Not available

20

Murray 1708651SM

SEAL TC 153507
(Superseded to 7073794YP)

$23.99

$

Usually ships in 2-12 days

0

21

*SCREW, Tapping, 8 * 55

$

$

Not available

22

Murray 1707789SM

SCREW, Tapping, 8 * 30

$6.99

$

Usually ships in 2-12 days

0

24

*KIT, Center Case

$

$

Not available

25

Murray 1718070SM

PIN, 3 * 9.8

$

$

Not available

26

*FILTER 105

$

$

Not available

27

*BOLT 10 * 75

$

$

Not available

28

*IDS VALVE 1.2

$

$

Not available

29

*IDS SPRING

$

$

Not available

30

*IDS FILTER 300

$

$

Not available

31

*KIT, Cylinder Block (Pump)

$

$

Not available

32

Murray 1724290SM

SPRING

$3.49

$

Usually ships in 2-12 days

0

33

Murray 1739892YP

PUMP SHAFT

$67.99

$

Usually ships in 2-12 days

0

34

Murray 1718076SM

E-RING, 15

$4.49

$

Usually ships in 2-12 days

0

35

Murray 1708673SM

BEARING, 6202C3

$24.99

$

Usually ships in 2-12 days

0

36

Murray 1718077SM

MOTOR HOUSING

$45.99

$

Usually ships in 2-12 days

0

37

*THRUST BEARING 51106

$

$

Not available

38

*KIT, Cylinder Block (Motor)

$

$

Not available

39

Murray 1718074SM

WASHER, 12 * 24 * 1

$103.99

$

Usually ships in 2-12 days

0

40

Murray 1724943SM

MOTOR SHAFT

$31.99

$

Usually ships in 2-12 days

0

41

Murray 1708672SM

RING, Snap, S15

$5.49

$

Usually ships in 2-12 days

0

42

Murray 1724944SM

BRAKE DISC/MOTOR GEAR (10T)

$30.99

$

Usually ships in 2-12 days

0

43

*BEARING, 6202

$

$

Not available

44

Murray 1718089SM

THRUST METAL

$16.99

$

Usually ships in 2-12 days

0

45

*SWASH PLATE CMP

$

$

Not available

46

*THRUST BEARING (PUMP) KIT

$

$

Not available

47

*MAGNET HOLDER

$

$

Not available

49

*CONTROL SHAFT

$

$

Not available

50

Murray 1721184SM

FULCRUM

$41.99

$

Usually ships in 2-12 days

0

51

*TORSION SPRING

$

$

Not available

52

*CONTROL ARM A

$

$

Not available

53

Murray 1724347SM

CONTROL LEVER C

$19.99

$

Usually ships in 2-12 days

0

54

*JERKY PLATE

$

$

Not available

55

*WASHER 12

$

$

Not available

56

*COTTER PIN 1/8 * 3/4

$

$

Not available

57

*SPRING PIN 6 * 36

$

$

Not available

58

Murray 1960588SM

ROLL PIN 6 * 40

$4.49

$

In Stock, only 1 left!

0

59

Murray 1707879SM

O-RING 1A P14

$4.49

$

Usually ships in 2-12 days

0

60

*NUT 12

$

$

Not available

61

SEE HOSE ASSEMBLY

$

$

Not available

62

SEE HOSE ASSEMBLY

$

$

Not available

63

*FINAL PINION COLLAR

$

$

Not available

64

*REDUCTION SHAFT

$

$

Not available

65

Murray 1724948SM

WASHER, 12 * 32 * 3.2

$5.49

$

Usually ships in 2-12 days

0

66

Murray 1724949SM

REDUCTION GEAR (38T)

$34.99

$

Usually ships in 2-12 days

0

67

*FINAL PINION GEAR (10T)

$

$

Not available

68

Murray 1724303SM

AXLE SHAFT, Left

$102.99

$

Usually ships in 2-12 days

0

69

Murray 1724304SM

AXLE SHAFT, Right

$102.99

$

In Stock, only 1 left!

0

70

Murray 1718112SM

THRUST WASHER

$18.99

$

Usually ships in 2-12 days

0

71

Murray 1718113SM

RING, 17

$

$

Not available

72

Murray 1718111SM

SEAL, 19 * 32 * 8
(Superseded to 84002383)

Note: ( For this part only contact B&S Tech support )

$15.99

$

In Stock, only 3 left!

0

73

Murray 1718110SM

BUSHING, 19 * 25

$

$

Not available

74

*BUSHING 19.05

$

$

Not available

75

Murray 1724305SM

BRAKE SHOE

$5.49

$

In Stock, only 1 left!

0

76

Murray 1724306SM

BRAKE LEVER

$

$

Not available

77

SEE HOSE ASSEMBLY

$

$

Not available

78

*BRAKE RETURN SPRING

$

$

Not available

79

Murray 1724309SM

BRAKE ACTUATOR

$4.99

$

Usually ships in 2-12 days

0

80

Murray 1724310SM

SPRING PIN, 5 * 32

$2.49

$

Usually ships in 2-12 days

0

81

*O-RING 1A P12

$

$

Not available

82

*SPRING PIN 4 * 16

$

$

Not available

83

Murray 1724312SM

SPLINE COLLAR

$7.99

$

Usually ships in 2-12 days

0

84

Murray 1739893YP

PULLEY C

$43.99

$

Usually ships in 2-12 days

0

85

Murray 1724314SM

FAN, White
(Superseded to 7073753YP)

$53.99

$

In Stock, Qty 11

0

86

Murray 1724315SM

WASHER, Wave

$4.49

$

In Stock, Qty 12

0

87

Murray 1724316SM

RING, Snap

$4.99

$

In Stock, Qty 6

0

90

Murray 1707839SM

SPRING PIN, 3.0A * 20

$3.49

$

Usually ships in 2-12 days

0

91

Murray 1724318SM

OIL SEAL 16 * 22 * .03

$

$

Not available

95

*SPRING PIN 3.0A * 16

$

$

Not available

99

SEE HOSE ASSEMBLY

$

$

Not available

200

Murray 1739894YP

SEAL KIT (K46 & T40)
(Superseded to 1727541YP)

$152.99

$

Usually ships in 2-12 days

0

201

*KIT, Repair, K46 (CE,CR)

$

$

Not available

--

Murray 1735476YP

TRANSMISSION, Tuff Torq, K46CW

$1766.99

$

Usually ships in 2-12 days

0
