LT 150 RD (2690916) - Murray 40" Lawn Tractor, Hydro Drive, 18hp, Seco (2010) Seat Deck & Fuel Tank Group Parts Diagram

40" Lawn Tractor, Hydro Drive, 18hp, Seco

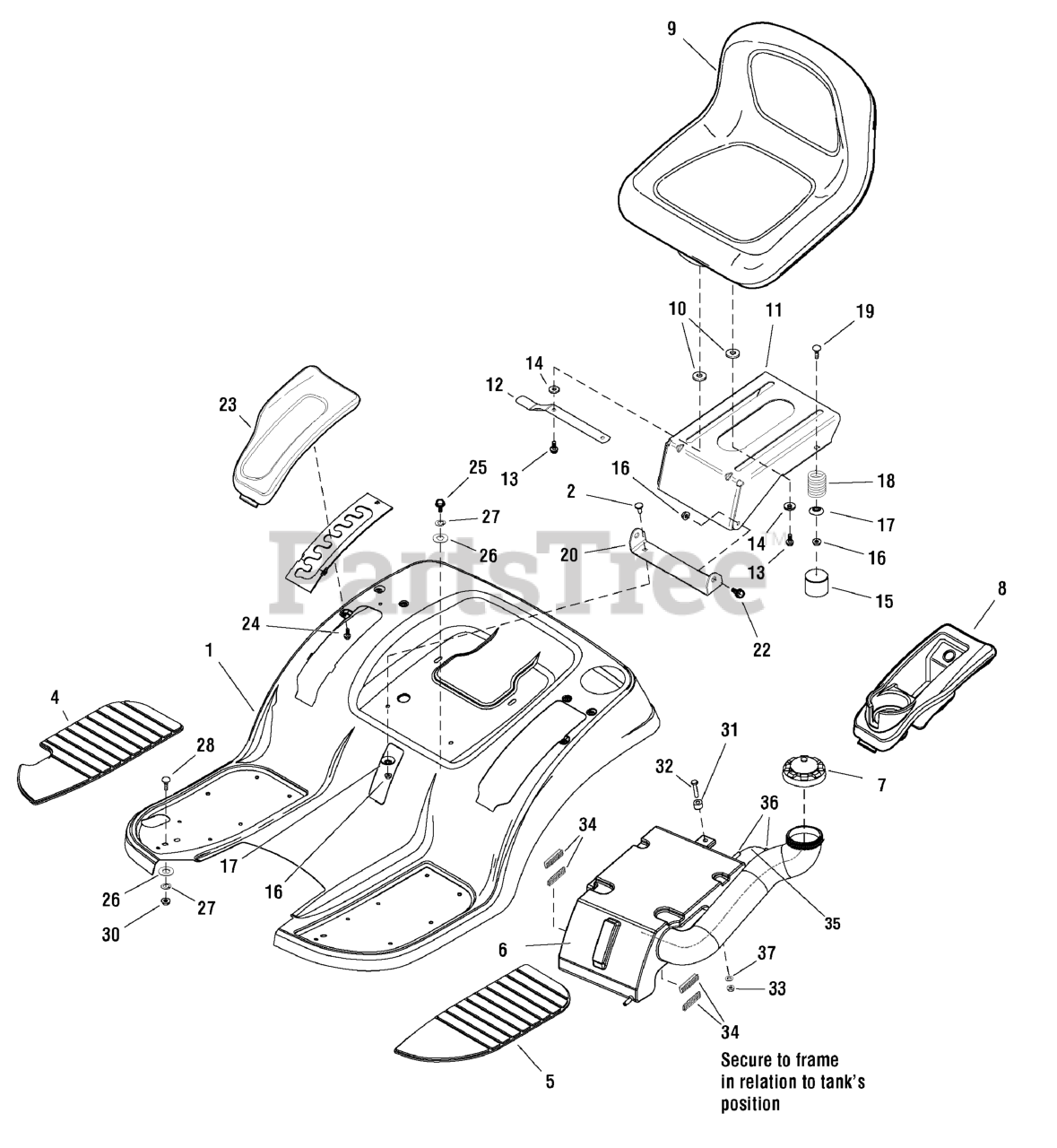

Seat Deck & Fuel Tank Group Parts Diagram

  • Title

1

Murray 1735259BIYP

SEAT DECK, Black

$

$

Currently unavailable

2

Murray 1931333SM

BOLT-Round Head Shoulder, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

4

Murray 1728007SM

PAD, Footrest, R.H.

$20.99

$

In Stock, only 1 left!

0

5

Murray 1728006SM

PAD, Footrest, L.H.

$21.99

$

In Stock, only 1 left!

0

6

Murray 1735976YP

TANK, Fuel

$

$

Not available

7

Murray 1715917SM

CAP, Fuel Tank
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 20+

0

8

Murray 1739536YP

POD, L.H.

$27.99

$

Usually ships in 2-12 days

0

9

Murray 1730159SM

SEAT

$463.99

$

Usually ships in 2-12 days

0

10

Murray 1731300SM

SPACER, 5/16 ID x 1-1/4 OD x 5/16

$5.49

$

Usually ships in 2-12 days

0

11

Murray 1727265ASM

SUPPORT, Seat
(Superseded to 1755767BMYP)

$152.99

$

Usually ships in 2-12 days

0

12

Murray 1727268AYP

LATCH, Seat
(Superseded to 1727268SM)

$8.99

$

Usually ships in 2-12 days

0

13

Murray 770697

CAPSCREW,Hex Flange Whiz Lock, Dog Point, 5/16-18 x 1

$

$

Not available

14

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

15

Murray 1704724SM

COVER, Spring

$7.99

$

In Stock, only 2 left!

0

16

Murray 1960686SM

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

17

Murray 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

In Stock, only 2 left!

0

18

Murray 1704728SM

SPRING, Compression

$9.99

$

In Stock, only 2 left!

0

19

Murray 1960282SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

20

Murray 1727266ASM

PIVOT, Seat

$10.99

$

In Stock, only 1 left!

0

22

Murray 1729576SM

BOLT, Shoulder, 5/16-18 x 15/32
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

23

Murray 1739538YP

POD, R.H.

$27.99

$

Usually ships in 2-12 days

0

24

Murray 1960536SM

CAPSCREW, Hex Washer Head, Plastite, 1/4 x 1/2

$4.99

$

Usually ships in 2-12 days

0

25

Murray 1735854YP

BOLT, M8 x 16

$

$

Not available

26

Murray 1735989YP

WASHER, 8.4

$

$

Not available

27

Murray 1736000YP

WASHER, 8

$

$

Not available

28

Murray 1735869YP

BOLT, M8 x 20

$

$

Not available

30

Murray 1735937YP

NUT, M8

$

$

Not available

31

Murray 1735894YP

DISTANCE, Lift

$

$

Not available

32

Murray 1735867YP

BOLT, M6 x 30

$

$

Not available

33

Murray 1735932YP

NUT, M6

$

$

Not available

34

Murray 1735878YP

BRAID, Steel Insert

$

$

Not available

35

Murray 1735914YP

HOSE, Air Escape

$

$

Not available

36

Murray 1736993YP

CLAMP

$

$

Not available

37

Murray 1735999YP

WASHER, 6.6

$

$

Not available
