LT 150 RD (2690916) - Murray 40" Lawn Tractor, Hydro Drive, 18hp, Seco (2010) Hood, Grille & Dash Group Parts Diagram

40" Lawn Tractor, Hydro Drive, 18hp, Seco

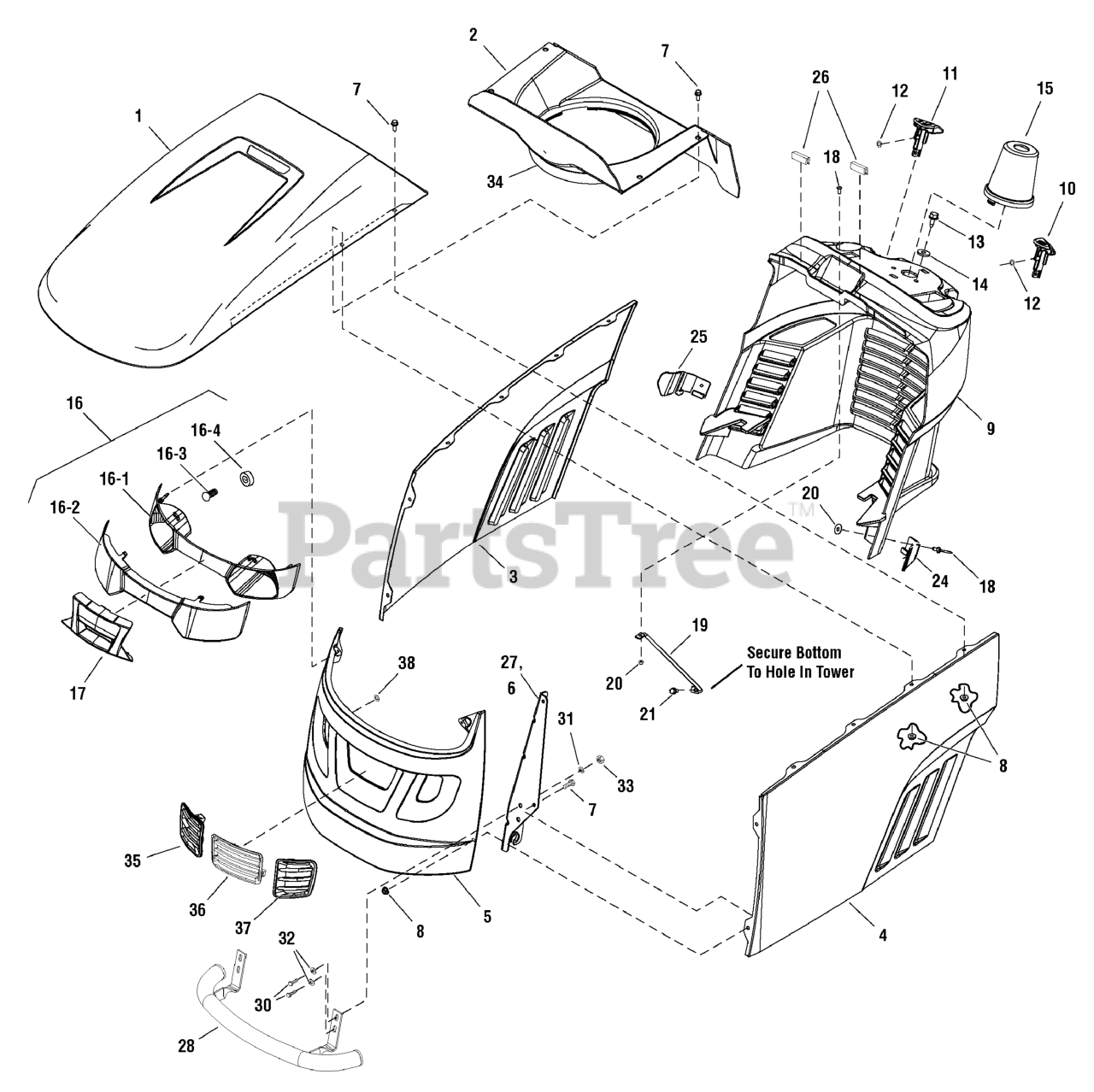

Hood, Grille & Dash Group Parts Diagram

  • Title

1

Murray 1728031BIYP

HOOD, Black

$274.99

$

Usually ships in 2-12 days

0

2

Murray 7102326YP

DUCT, Air Inlet

$131.99

$

In Stock, only 1 left!

0

3

Murray 1727294BIYP

PANEL, Side, R.H.

$125.99

$

Usually ships in 2-12 days

0

4

Murray 1727295BIYP

PANEL, Side, L.H.

$125.99

$

Usually ships in 2-12 days

0

5

Murray 1738914BIYP

GRILLE, Black

$

$

Not available

6

Murray 1727279ASM

HINGE, Hood, L.H.
(Superseded to 1727279BMYP)

$20.99

$

Usually ships in 2-12 days

0

7

Murray 1960295SM

CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

8

Murray 1930641SM

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

9

Murray 1739105YP

CONSOLE

$182.99

$

Usually ships in 2-12 days

0

10

Murray 1728089SM

KNOB, Brake Lock

$7.49

$

In Stock, only 4 left!

0

11

Murray 1728090SM

KNOB, Cruise Lock

$7.49

$

In Stock, Qty 10

0

12

Murray 1960518SM

PUSHNUT, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

13

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 1 left!

0

15

Murray 1727999SM

COVER, Steering Shaft

$17.99

$

Usually ships in 2-12 days

0

16

Murray 1727296SM

HEADLIGHT ASSEMBLY, Complete

Note: (Includes Ref. Nos. 16-1, 16-2, 16-3 & 16-4)

$237.99

$

In Stock, Qty 7

0

16-1

Murray 1728973SM

REFLECTOR
(Superseded to 1727296SM)

$237.99

$

In Stock, Qty 7

0

16-2

Murray 1728974SM

LENS
(Superseded to 1727296SM)

$237.99

$

In Stock, Qty 7

0

16-3

Murray 1677371SM

BULB, 12V

$30.99

$

In Stock, only 1 left!

0

16-4

Murray 1723451SM

SOCKET

$28.99

$

In Stock, only 1 left!

0

17

Murray 1728975SM

INSERT, Lightbar

$12.99

$

In Stock, only 1 left!

0

18

Murray 1960392SM

SCREW, Pan Head Phillips, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

19

Murray 1723123SM

ROD, Dash Support, 10"

$11.99

$

Usually ships in 2-12 days

0

20

Murray 1933896SM

NUT, Nylon Insert Lock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

21

Murray 1925003SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

24

Murray 1732030SM

GUIDE, Hood, L.H.

$7.49

$

In Stock, only 2 left!

0

25

Murray 1732031SM

GUIDE, Hood, R.H.

$7.49

$

In Stock, Qty 5

0

26

Murray 1735878YP

BRAID, Steel Insert

$

$

Not available

27

Murray 1727280ASM

HINGE, Hood, R.H.

$20.99

$

Usually ships in 2-12 days

0

28

Murray 1735879YP

BUMPER, Front

$

$

Not available

30

Murray 1735868YP

CAPSCREW, M8 x 40

$

$

Not available

31

Murray 1735989YP

WASHER, 8.4

$

$

Not available

32

Murray 1736000YP

WASHER, 8

$

$

Not available

33

Murray 1735934YP

NUT, M8

$

$

Not available

34

Murray 1731971SM

EDGING, Rubber

$12.99

$

Usually ships in 2-12 days

0

35

Murray 1741764MA

INSERT, Grille, R.H.

$16.99

$

Usually ships in 2-12 days

0

36

Murray 1741762MA

INSERT, Grille, Center

$42.99

$

Usually ships in 2-12 days

0

37

Murray 1741763MA

INSERT, Grille, L.H.

$16.99

$

Usually ships in 2-12 days

0

38

Murray 028X83MA

S-CLIP

$3.99

$

In Stock, only 2 left!

0
