LT 150 RD (2690916) - Murray 40" Lawn Tractor, Hydro Drive, 18hp, Seco (2010) Electrical Group Parts Diagram

40" Lawn Tractor, Hydro Drive, 18hp, Seco

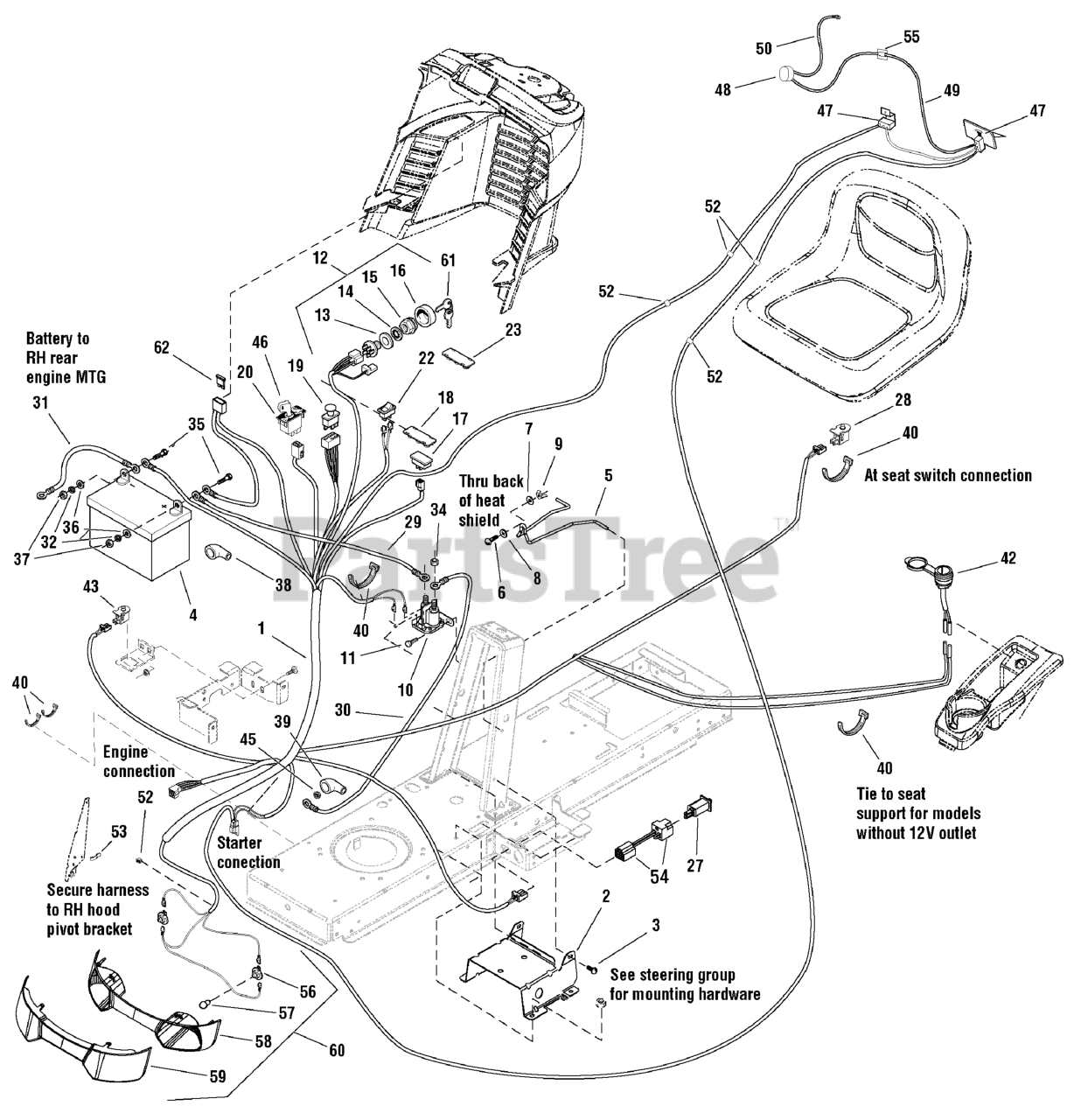

Electrical Group Parts Diagram

  • Title

1

Murray 1736864YP

Harness, Main

$

$

Not available

2

Murray 1727282SM

Support, Battery

$

$

Not available

3

Murray 1930601SM

Screw, Hex Washer Head, TAPTITE .31-18 x .62
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

4

Murray 1685215SM

Battery, 12V 230 AMP CCA DRY

$

$

Not available

5

Murray 1730007SM

Hold Down, Battery

$27.99

$

Usually ships in 2-12 days

0

6

Murray 1931318SM

Bolt, Round Head Carriage .25-20 x .88

$4.49

$

In Stock, only 2 left!

0

7

Murray 1960353SM

Washer, Flat .25
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

8

Murray 1960518SM

Nut, Push .25
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

9

Murray 1920397SM

Nut .25 ESNA
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

10

Murray 1728963SM

Solenoid, 12V
(Superseded to 1755381YP)

$24.99

$

In Stock, Qty 20+

0

11

Murray 1925003SM

Screw, Hex-Washer Head TAPTITE .25-20 x .50
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

12

Murray 1686734SM

Switch Assembly, Ignition

Note: (Includes References 13, 14, 15, & 16)

$32.99

$

In Stock, Qty 20+

0

13

Murray 2101025SM

Washer .62

$4.49

$

Usually ships in 2-12 days

0

14

Murray 1960547SM

Lock Washer, Int. Tooth .62

$4.49

$

In Stock, only 3 left!

0

15

Murray 1717549SM

Nut, Hex-Flange, Ignition Switch .62 - .32
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

16

Murray 1717550SM

Cover, Ignition Switch
(Superseded to 847150)

$8.49

$

In Stock, Qty 15

0

17

Murray 1728068SM

Hour Meter

Note: (22HP Twin)

$46.99

$

Usually ships in 2-12 days

0

18

Murray 1729993SM

Plug, Hour Meter

Note: (19.5HP)

$4.49

$

Usually ships in 2-12 days

0

19

Murray 1722887SM

SWITCH, PTO, Push/Pull

$33.99

$

In Stock, Qty 20+

0

20

Murray 1726556SM

SWITCH, RMO Module Only
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

22

Murray 1716951SM

SWITCH, Head lights

$21.99

$

In Stock, Qty 6

0

23

Murray 1722611SM

PLUG

$6.99

$

In Stock, only 1 left!

0

27

Murray 1732006SM

SWITCH, Push (Foot Pedal)
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

28

Murray 1732005SM

SWITCH, Push NC (Seat)
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

29

Murray 1716549SM

CABLE #6 10.0 Lg Red
(Superseded to 1752685YP)

$11.99

$

In Stock, only 1 left!

0

30

Murray 1721830SM

CABLE, #6 25.0 Lg Red

$19.99

$

Usually ships in 2-12 days

0

31

Murray 1713163SM

CABLE, #6 20.0 Lg Black

$24.99

$

In Stock, only 2 left!

0

32

Murray 2816964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

34

Murray 2860750SM

NUT, Hex KEPS, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

35

Murray 2823341SM

CAPSCREW, Hex 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

36

Murray 2821319SM

WASHER, Flat 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

37

Murray 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

38

Murray 1677296SM

BOOT, Insulator, Battery

$6.49

$

In Stock, Qty 10

0

39

Murray 1713535SM

BOOT, Insulator, Red

$5.99

$

In Stock, only 1 left!

0

40

Murray 1735980YP

TIE, RT 360 /L=150/

$

$

Not available

42

Murray 7073090SM

PLUG, Aux, 12V, (With Cover)

$23.99

$

Usually ships in 2-12 days

0

43

Murray 1732004SM

SWITCH, NO (RMO)

$8.99

$

In Stock, Qty 20+

0

45

Murray 1960294SM

NUT, Flange, Whiz 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

46

Murray 1726557SM

KEY, RMO Module Plastic

$5.49

$

In Stock, Qty 20+

0

47

Murray 1735922YP

MICROSWITCH, MKH 12 D13 S1

$

$

Not available

48

Murray 1735852YP

BEEPER, PF 27 A 29 EP

$

$

Not available

49

Murray 1736002YP

WIRE, 9-8316-615

$

$

Not available

52

Murray 1735882YP

CABLE CLIP

$

$

Not available

53

Murray 2834683SM

CLIP, Speed Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

54

Murray 1734025SM

PLUG, Shut-Off

$14.99

$

In Stock, only 1 left!

0

55

Murray 1735884YP

CLIP, Cable WCK 460 01/A

$

$

Not available

56

Murray 1723451SM

SOCKET ASSEMBLY

$28.99

$

In Stock, only 1 left!

0

57

Murray 1677371SM

BULB, 1141-12V 21CP

$30.99

$

In Stock, only 1 left!

0

58

Murray 1728973SM

REFLECTOR, Headlight
(Superseded to 1727296SM)

$237.99

$

In Stock, Qty 7

0

59

Murray 1728974SM

LENS, Headlight
(Superseded to 1727296SM)

$237.99

$

In Stock, Qty 7

0

60

Murray 1727296SM

HEADLIGHT ASSEMBLY

Note: (Includes References 56, 57, 58 & 59)

$237.99

$

In Stock, Qty 7

0

61

Murray 1717163SM

KEY, Ignition (Set of 2)

$8.99

$

In Stock, Qty 20+

0

62

Murray 1731957SM

FUSE

$8.49

$

Usually ships in 2-12 days

0
