LT 150 RD (2690916) - Murray 40" Lawn Tractor, Hydro Drive, 18hp, Seco (2010) Collector Group Parts Diagram

40" Lawn Tractor, Hydro Drive, 18hp, Seco

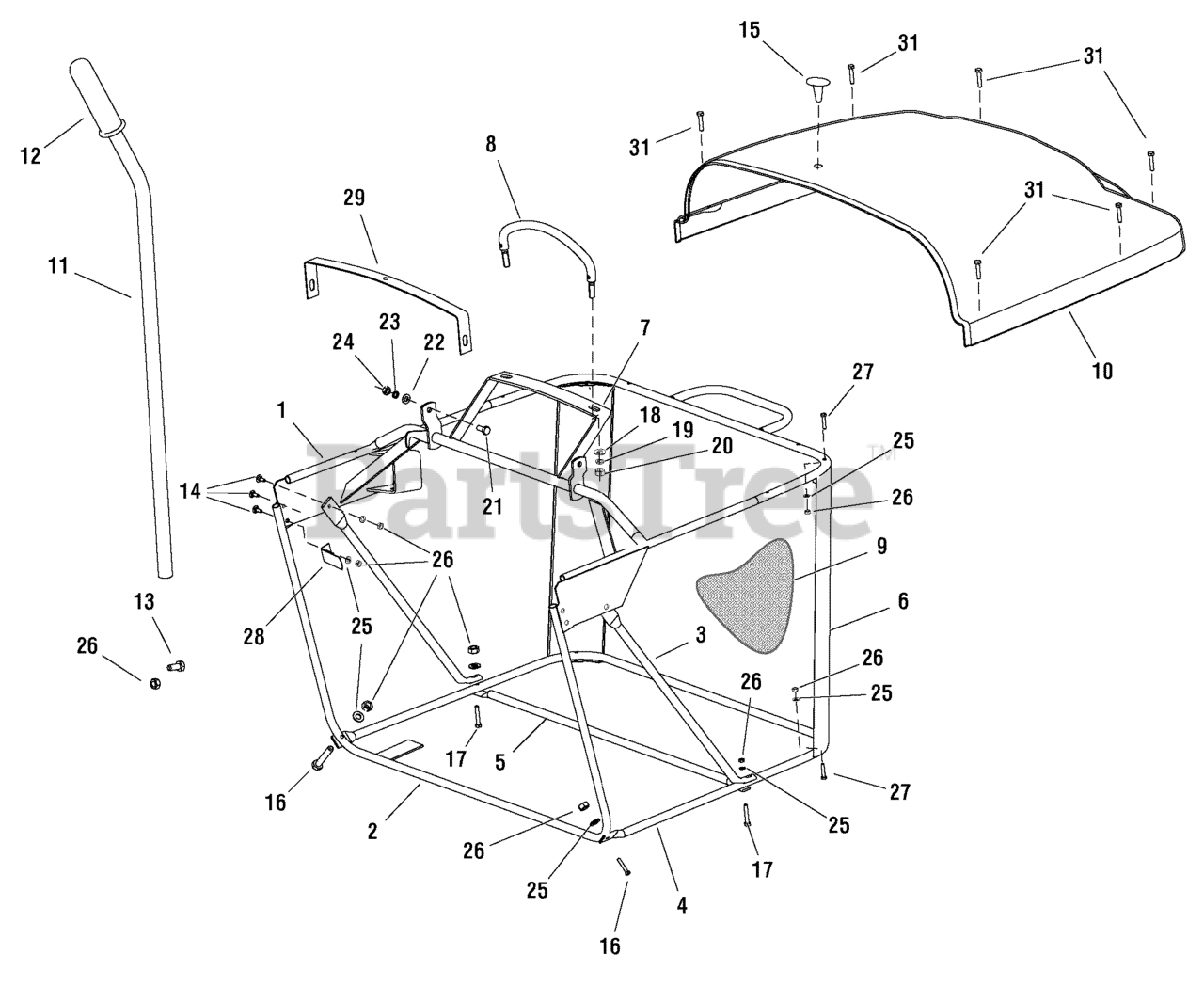

Collector Group Parts Diagram

  • Title

1

Murray 1735897YP

FRAME, Top

$

$

Not available

2

Murray 1736463YP

TUBE, Front

$

$

Not available

3

Murray 1735877YP

BRACE

$

$

Not available

4

Murray 1735984YP

TUBE, Bottom

$

$

Not available

5

Murray 1735953YP

REINFORCEMENT, L.H.

$

$

Not available

6

Murray 1736236YP

REINFORCEMENT, L.H.

$

$

Not available

7

Murray 1735954YP

REINFORCEMENT, R.H.

$

$

Not available

8

Murray 1735900YP

HANDLE, FULL

$

$

Not available

9

Murray 1735885YP

COAT, Fabric

$

$

Not available

10

Murray 1739670YP

TOP COLLECTOR

$

$

Currently unavailable

11

Murray 1735916YP

LEVER DUMPING

$

$

Not available

12

Murray 1735901YP

HANDLE, Rubber

$

$

Not available

13

Murray 1735859YP

BOLT, M5 x 12

$

$

Not available

14

Murray 1735860YP

BOLT, M5 x 16

$

$

Not available

15

Murray 1735948YP

PLUG

$

$

Not available

16

Murray 1735863YP

BOLT, M5 x 30

$

$

Not available

17

Murray 1735864YP

BOLT, M5 x 35

$

$

Not available

18

Murray 1735990YP

WASHER, 10.5

$

$

Not available

19

Murray 1735991YP

WASHER, 10.5

$

$

Not available

20

Murray 1735925YP

NUT, M10

Note: (Use with washers 18 & 19)

$

$

Not available

20

Murray 1751830YP

NUT, Flange Lock, M10

Note: (Washers 18 & 19 not required)

$

$

Not available

21

Murray 1735868YP

CAPSCREW, M8 x 40

$

$

Not available

22

Murray 1735989YP

WASHER, 8.4

$

$

Not available

23

Murray 1736000YP

WASHER, 8

$

$

Not available

24

Murray 1735934YP

NUT, M8

Note: (Use with washers 22 & 23)

$

$

Not available

24

Murray 1751829YP

NUT, Flange Lock, M8

Note: (Washers 22 & 23 not required)

$

$

Not available

25

Murray 1735997YP

WASHER, 5.3

$

$

Not available

26

Murray 1735931YP

NUT, M5

Note: (Use with washer 25)

$

$

Not available

26

Murray 1751832YP

NUT, DIN 6926, M5

Note: (Washer 25 not required)

$

$

Not available

27

Murray 1735862YP

BOLT, M5 x 25

$

$

Not available

28

Murray 1735971YP

SPRING, Flat

$

$

Not available

29

Murray 1735955YP

REINFORCEMENT, Top

$

$

Not available

31

Murray 1736416YP

CAPSCREW, 6.3 x 32

$

$

Not available
