LT 150 - Electrolux/AYP Lawn Tractor MOWER DECK Parts Diagram

Lawn Tractor

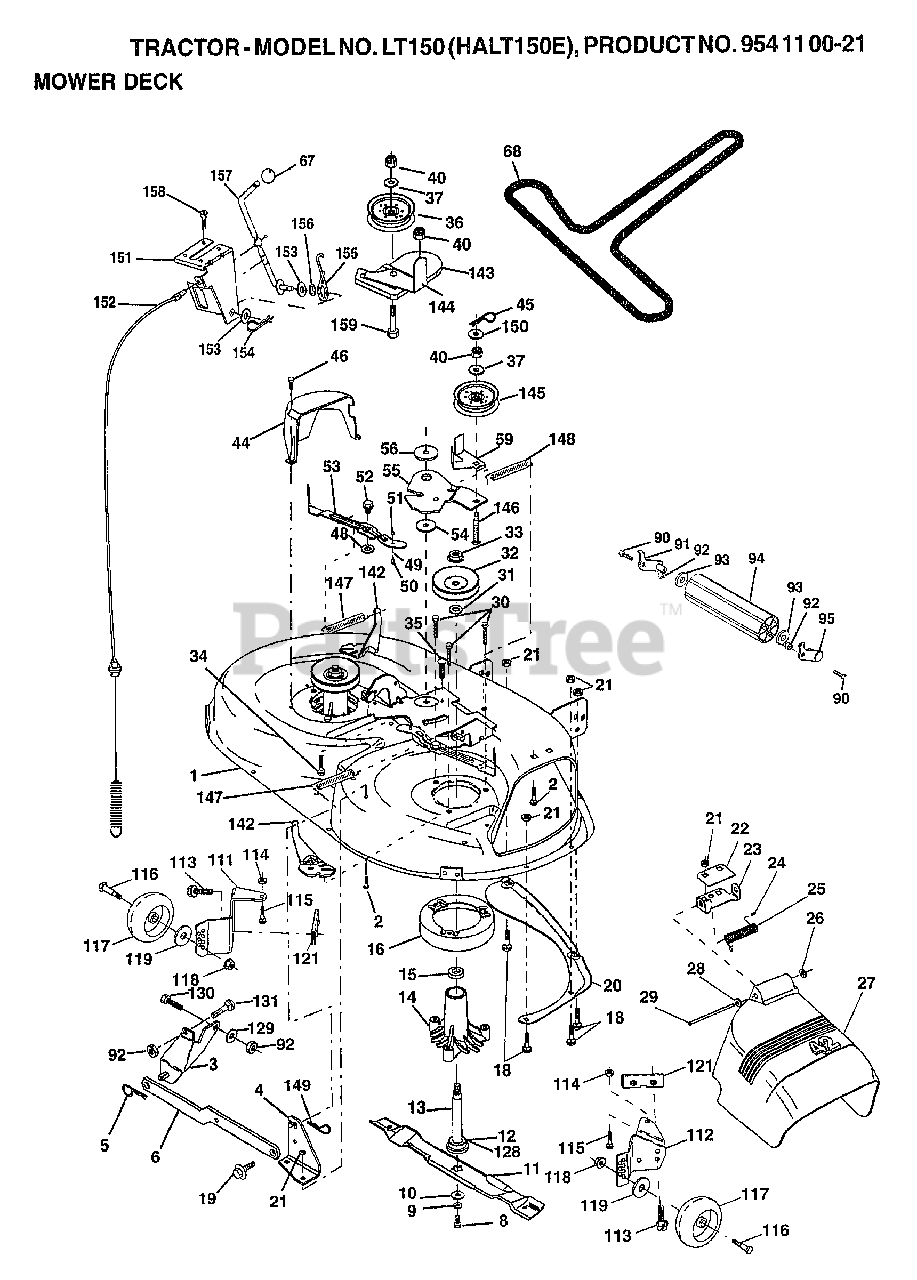

MOWER DECK Parts Diagram

  • Title

1

Electrolux/AYP 532165892

DECK ASM
(Superseded to 532176027)

$399.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 872140506

BOLT, CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 532138017

SUB= 138017

$12.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532165460

BRKT ASM

$13.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 532130832

SUB= 130833
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

6

Electrolux/AYP 532130832

SUB= 130833
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 532850857

SUB= 850857

$4.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 810030600

WASHER LOCK HVY 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532140296

SUB= 140296

$6.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 532134149

SUB= 134149

$

$

Not available

12

Electrolux/AYP 532129895

SUB= 129895
(Superseded to 738220419)

$17.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 532137645

SUB= 137646
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

14

Electrolux/AYP 532128774

SUB= 128774

$34.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532110485

SUB= 110485X

$13.99

$

In Stock, Qty 11

0

16

Electrolux/AYP 532140329

SUB= 140329
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 872140505

BOLT RDHD SQNK 5/16-18 X 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 532132827

SUB= 132827

$

$

Not available

20

Electrolux/AYP 532159770

SUB= 159770

$

$

Not available

21

Electrolux/AYP 873680500

LOCKNUT, CROWN 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 532134753

SUB= 134753
(Superseded to 532177563)

$

$

Not available

23

Electrolux/AYP 532131267

SUB= 131267
(Superseded to 532177563)

$

$

Not available

24

Electrolux/AYP 532105304

SUB= 105304X

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 532123713

SUB= 123713X

$7.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 532110452

SUB= 110452X

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 532171859

SHIELD DEFLECTOR MOWER
(Superseded to 532130968)

$39.99

$

In Stock, Qty 9

0

28

Electrolux/AYP 819111016

WASHER 11/32 X 5/8 X 16 GA
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532131491

SUB= 131491
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 532157722

SUB= 157722
(Superseded to 532173984)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 532129963

SUB= 129963
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

32

Electrolux/AYP 532153535

SUB= 153535
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 532137266

SUB= 139729
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

35

Electrolux/AYP 532133835

SUB= 133835

$7.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532131494

SUB= 131494
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

37

Electrolux/AYP 819131316

WASHER 13/32 X 13/16 X 16 GA

$4.99

$

In Stock, Qty 5

0

40

Electrolux/AYP 873680600

NUT, CROWNLOCK 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

44

Electrolux/AYP 532140088

SUB= 140088

$34.99

$

In Stock, Qty 10

0

45

Electrolux/AYP 532124788

SUB= 4497H
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

46

Electrolux/AYP 532137729

SUB= 137729

$4.99

$

In Stock, Qty 19

0

48

Electrolux/AYP 532133944

WASHER HARDENED SMALLER

$6.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 532155066

SUB= 155066
(Superseded to 532174284)

$10.99

$

In Stock, only 4 left!

0

50

Electrolux/AYP 532131340

SUB= 131340
(Superseded to 131340)

$

$

Not available

51

Electrolux/AYP 532069180

SUB= 69180

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 532139888

SUB= 139888

$6.49

$

In Stock, only 1 left!

0

53

Electrolux/AYP 532131845

SUB= 131845
(Superseded to 532184907)

$14.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 532133943

SUB= 133943
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 532155046

SUB= 155046

$15.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 532165723

SPACER

$6.99

$

In Stock, only 1 left!

0

59

Electrolux/AYP 532141043

SUB= 141043

$

$

Not available

67

Electrolux/AYP 532106932

SUB= 106932X

$7.99

$

In Stock, Qty 5

0

68

Electrolux/AYP 532144959

SUB= 144959

$43.99

$

In Stock, Qty 20+

0

90

Electrolux/AYP 874760616

BOLT FIN HEX 3/8-16 X 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 532132274

BRK ASM ROLLER LH
(Superseded to 532175746)

$9.49

$

In Stock, Qty 6

0

92

Electrolux/AYP 873800600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 819171416

WASHER, 17/32 X 7/8 X 16 GA.

$4.99

$

In Stock, Qty 8

0

94

Electrolux/AYP 532132264

NOSE ROLLER

$44.99

$

In Stock, Qty 20+

0

95

Electrolux/AYP 532132273

BRK ASM ROLLER RH
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

111

Electrolux/AYP 532155197

SUB= 155197
(Superseded to 532179292)

$37.99

$

In Stock, only 1 left!

0

112

Electrolux/AYP 532155198

SUB= 155198
(Superseded to 532179293)

$37.99

$

In Stock, only 1 left!

0

113

Electrolux/AYP 817060512

SCREW
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

114

Electrolux/AYP 873510500

NUT, KEPS 5/16-18
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

115

Electrolux/AYP 872110504

BOLT
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

116

Electrolux/AYP 532124842

SUB= 4898H
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

117

Electrolux/AYP 532165746

WHEEL GAUGE

$

$

Not available

118

Electrolux/AYP 873930600

NUT, CENTER LOCK 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Electrolux/AYP 819121414

WASHER 3/8 X 7/8 X 14 GA.
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

121

Electrolux/AYP 532143723

SUB= 143723

$

$

Not available

128

Electrolux/AYP 532153390

SUB= 153390

$6.49

$

In Stock, only 3 left!

0

129

Electrolux/AYP 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

130

Electrolux/AYP 874780616

BOLT FIN HEX 3/8-16 X 1

$6.49

$

Usually ships in 3-10 days

0

131

Electrolux/AYP 872140608

BOLT CARRIAGE 3/8-16X1
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

142

Electrolux/AYP 532165890

ARM SPRING BRAKE MOWER

$4.99

$

Usually ships in 3-10 days

0

143

Electrolux/AYP 532157109

BRKT ARM IDLER

$6.49

$

Usually ships in 3-10 days

0

144

Electrolux/AYP 532158634

KEEPER BELT
(Superseded to 532173441)

$9.99

$

In Stock, only 1 left!

0

145

Electrolux/AYP 532165888

PULLEY IDLER FLAT
(Superseded to 532173437)

$28.99

$

In Stock, only 3 left!

0

146

Electrolux/AYP 532165891

BOLT
(Superseded to 532173443)

$7.49

$

In Stock, Qty 6

0

147

Electrolux/AYP 532131335

SUB= 131335
(Superseded to 532179748)

$5.99

$

In Stock, Qty 7

0

148

Electrolux/AYP 532169022

SPRING

$5.99

$

In Stock, Qty 7

0

149

Electrolux/AYP 532169898

RETAINER

$145.99

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 819091216

WASHER, 9/32 X 3/4 X 16 GA.
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

151

Electrolux/AYP 532169670

BRACKET CLUTCH CABLE

$

$

Not available

152

Electrolux/AYP 532169676

42" CLUTCH CABLE
(Superseded to 532175067)

$45.99

$

In Stock, Qty 6

0

153

Electrolux/AYP 532169674

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

154

Electrolux/AYP 532169675

SPRING RETAINER

$7.49

$

In Stock, only 2 left!

0

155

Electrolux/AYP 532169671

SPRING RETENTION LEVER

$6.49

$

Usually ships in 3-10 days

0

156

Electrolux/AYP 532169672

SPACER

$6.49

$

Usually ships in 3-10 days

0

157

Electrolux/AYP 532169669

ROD

$

$

Not available

158

Electrolux/AYP 817720410

SCREW HEX THD CUT 1/4-20X5/8 T
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

159

Electrolux/AYP 872140614

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, only 3 left!

0

Electrolux/AYP 532130794

SUB= 130794

$56.99

$

In Stock, Qty 5

0

Electrolux/AYP 532169583

DECK

$848.99

$

Usually ships in 3-10 days

0
