LT 150 (954110021-E) - Husqvarna Lawn Tractor (2003-01) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

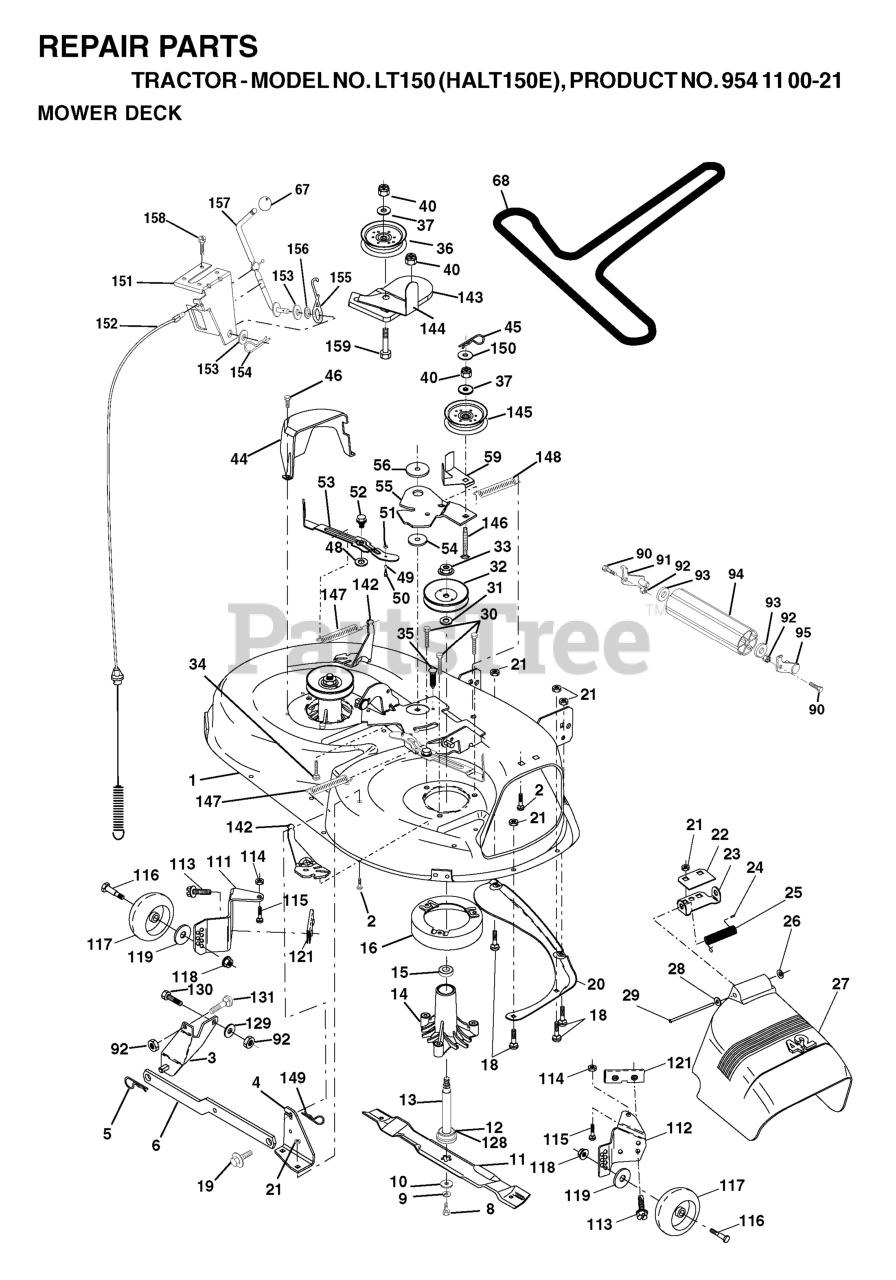

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

22

Husqvarna 532134753

STIFFENER BRACKET
(Superseded to 532177563)

$

$

Not available

3

Husqvarna 532138017

BRKT ASM SWAY BAR

$12.99

$

In Stock, only 1 left!

0

155

Husqvarna 532169671

SPRING RETENTION LEVER

$6.49

$

Usually ships in 3-10 days

0

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

157

Husqvarna 532169669

ROD CLUTCH CABLE 3/8"

$

$

Not available

53

Husqvarna 532131845

ARM
(Superseded to 532184907)

$14.99

$

Usually ships in 3-10 days

0

150

Husqvarna 819091216

WASHER PM

$

$

Not available

35

Husqvarna 532133835

FASTENER.XMAS.TREE

$7.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532165888

PULLEY
(Superseded to 532173437)

$28.99

$

In Stock, only 3 left!

0

144

Husqvarna 532158634

DNO KEEPER.BELT.42".CLUTCH.CBL
(Superseded to 532173441)

$9.99

$

In Stock, only 1 left!

0

16

Husqvarna 532140329

STRIPPER
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

147

Husqvarna 532131335

SPRING EXTENSION
(Superseded to 532179748)

$5.99

$

In Stock, Qty 11

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

- -

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

$56.99

$

In Stock, Qty 7

0

1

Husqvarna 532165892

42" DECK KIT
(Superseded to 532176027)

$399.99

$

Usually ships in 3-10 days

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

32

Husqvarna 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

117

Husqvarna 532165746

WHEEL.GAUGE.STANDARD

$

$

Not available

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

94

Husqvarna 532132264

NOSE ROLLER

$44.99

$

In Stock, Qty 20+

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

149

Husqvarna 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

Usually ships in 3-10 days

0

114

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

111

Husqvarna 532155197

BRACKET WHEEL GAUGE LH 42" DK
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

159

Husqvarna 872140614

BOLT

$4.99

$

Usually ships in 3-10 days

0

153

Husqvarna 532169674

WASHER FLAT 3/8"
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532155066

ROLLER ASSY
(Superseded to 532174284)

$10.99

$

In Stock, only 4 left!

0

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 532159770

BAFFLE.VORTEX

$

$

Not available

27

Husqvarna 532171859

SHIELD DEFLECTOR
(Superseded to 532130968)

$39.99

$

In Stock, Qty 12

0

31

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$4.99

$

Usually ships in 3-10 days

0

93

Husqvarna 819171416

Washer 1 17/32 X 7/8 X 16 Ga

$4.99

$

In Stock, Qty 8

0

116

Husqvarna 532124842

BOLT M
(Superseded to 532004898)

$

$

Not available

152

Husqvarna 532169676

CLUTCH CABLE 42"
(Superseded to 532175067)

$45.99

$

In Stock, Qty 7

0

45

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

91

Husqvarna 532132274

BRACKET LH (A)
(Superseded to 532175746)

$9.49

$

In Stock, Qty 6

0

115

Husqvarna 872110504

BOLT.CARR.5/16-18X1/2
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 532131340

BOLT

$

$

Not available

67

Husqvarna 532106932

KNOB T (3/8 HOLE)

$7.99

$

In Stock, Qty 5

0

146

Husqvarna 532165891

BOLT, CARRIAGE IDLER
(Superseded to 532173443)

$7.49

$

In Stock, Qty 8

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532144959

BELT V SECONDARY

$43.99

$

In Stock, Qty 20+

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 532137266

NUT
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

154

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 2 left!

0

11

Husqvarna 532134149

BLADE.42".MULCH
(Superseded to 594892701)

$

$

Not available

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

143

Husqvarna 532157109

BRACKET, ARM IDLER

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532123713

SPRING TORSION

$7.99

$

In Stock, only 3 left!

0

40

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

121

Husqvarna 532143723

BRACKET.EXTRUDED.GAGE.WHEEL

$

$

Not available

23

Husqvarna 532131267

DEFLECTOR BRACKET
(Superseded to 532177563)

$

$

Not available

142

Husqvarna 532165890

ARM SPRING BRAKE MOWER

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

131

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 2 left!

0

44

Husqvarna 532140088

GUARD MANDREL LH BLACK

$34.99

$

In Stock, Qty 10

0

8

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, only 3 left!

0

56

Husqvarna 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 2 left!

0

112

Husqvarna 532155198

BRACKET WHEEL GAUGE RH 42" DK
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

129

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

128

Husqvarna 532153390

WASHER FELT

$6.49

$

In Stock, only 3 left!

0

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 2 left!

0

156

Husqvarna 532169672

SPACER.CLUTCH.CABLE

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532165460

BRACKET SWAY BAR 42" DECK

$13.99

$

In Stock, only 1 left!

0

12

Husqvarna 532129895

BEARING.BALL.#6204.(MANDREL)

$11.99

$

In Stock, Qty 20+

0

- -

Husqvarna 532169583

DECK ASM SVC 42" MB CBL.CLUTCH

$848.99

$

Usually ships in 3-10 days

0

113

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

130

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

54

Husqvarna 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)

$34.99

$

In Stock, only 2 left!

0

95

Husqvarna 532132273

BRACKET RH (B)
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$3.99

$

Usually ships in 3-10 days

0

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

158

Husqvarna 817720410

SCREW LT
(Superseded to 874780410)

$3.99

$

In Stock, only 3 left!

0

151

Husqvarna 532169670

BRACKET.CLUTCH.CABLE

$

$

Not available

51

Husqvarna 532069180

LOCKNUT

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532157722

SCREW THDROL ROLLING WASHER HD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

148

Husqvarna 532169022

IDLER RETURN SPRING

$5.99

$

In Stock, Qty 9

0

15

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 7

0

92

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532139888

BOLT.SHOULDER.5/16-18

$6.49

$

In Stock, only 1 left!

0

55

Husqvarna 532155046

ARM IDLER 42" MOWER LT/YT
(Superseded to 531166601)

$17.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532133944

WASHER

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532130832

REAR SUSP ARM
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

90

Husqvarna 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, only 3 left!

0
