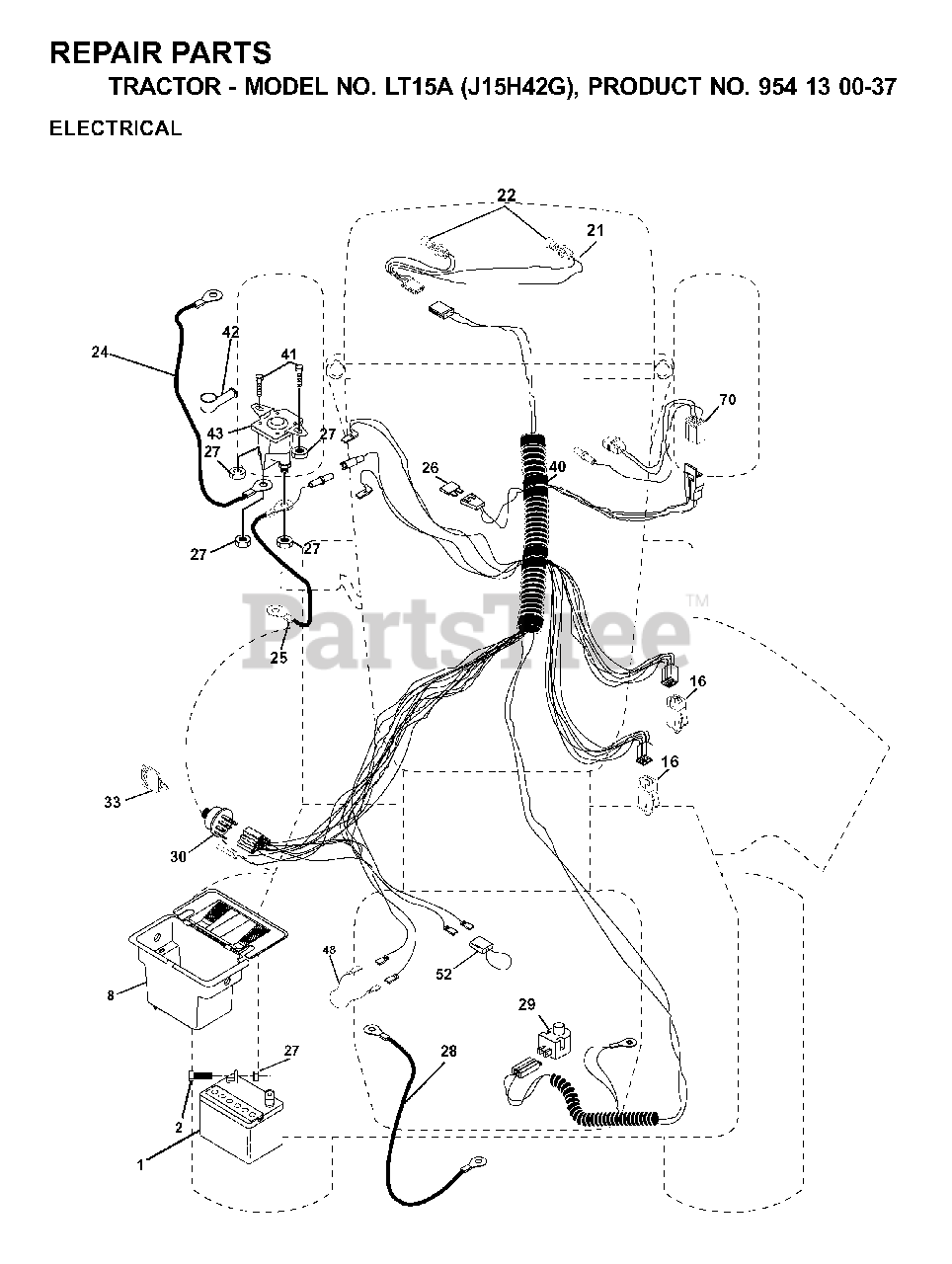

LT 15 A (954130037-G) - Jonsered Lawn Tractor (2000-04) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Jonsered 532144925

BATTERY 12 VOLT 25 AMP
(Superseded to 532123899)

$194.99

$

In Stock, only 2 left!

0

2

Jonsered 874760412

BOLT LT

$7.49

$

In Stock, only 1 left!

0

8

Jonsered 532156417

CASE BATTERY MECH HINGE
(Superseded to 532404349)

$

$

Not available

16

Jonsered 532153664

SWITCH INTERLOCK
(Superseded to 532176138)

$22.99

$

In Stock, Qty 5

0

20

Jonsered 873350400

NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Jonsered 532166182

HARNESS ASM, LIGHT W/4152J

$

$

Not available

22

Jonsered 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Jonsered 532146147

CABLE BATTERY

$34.99

$

Usually ships in 3-10 days

0

26

Jonsered 532166180

FUSE 15 AMP
(Superseded to 532175158)

$7.49

$

In Stock, only 1 left!

0

27

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

28

Jonsered 532124773

CABLE T
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

29

Jonsered 532121305

SWITCH SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

30

Jonsered 532163968

No Description Available
(Superseded to 532175566)

$26.99

$

In Stock, only 4 left!

0

33

Jonsered 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 7

0

40

Jonsered 532170217

HARNESS, IGN. LTH120
(Superseded to 532178437)

$120.99

$

Usually ships in 3-10 days

0

41

Jonsered 871110408

No Description Available
(Superseded to 71110408)

$2.99

$

Usually ships in 3-10 days

0

42

Jonsered 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Jonsered 532145673

SOLINOID
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

48

Jonsered 532140844

ADAPTER

$6.49

$

Usually ships in 3-10 days

0

52

Jonsered 532141940

WIRE PROTECTION LOOP

$7.49

$

Usually ships in 3-10 days

0

70

Jonsered 532170247

No Description Available

$

$

Not available
