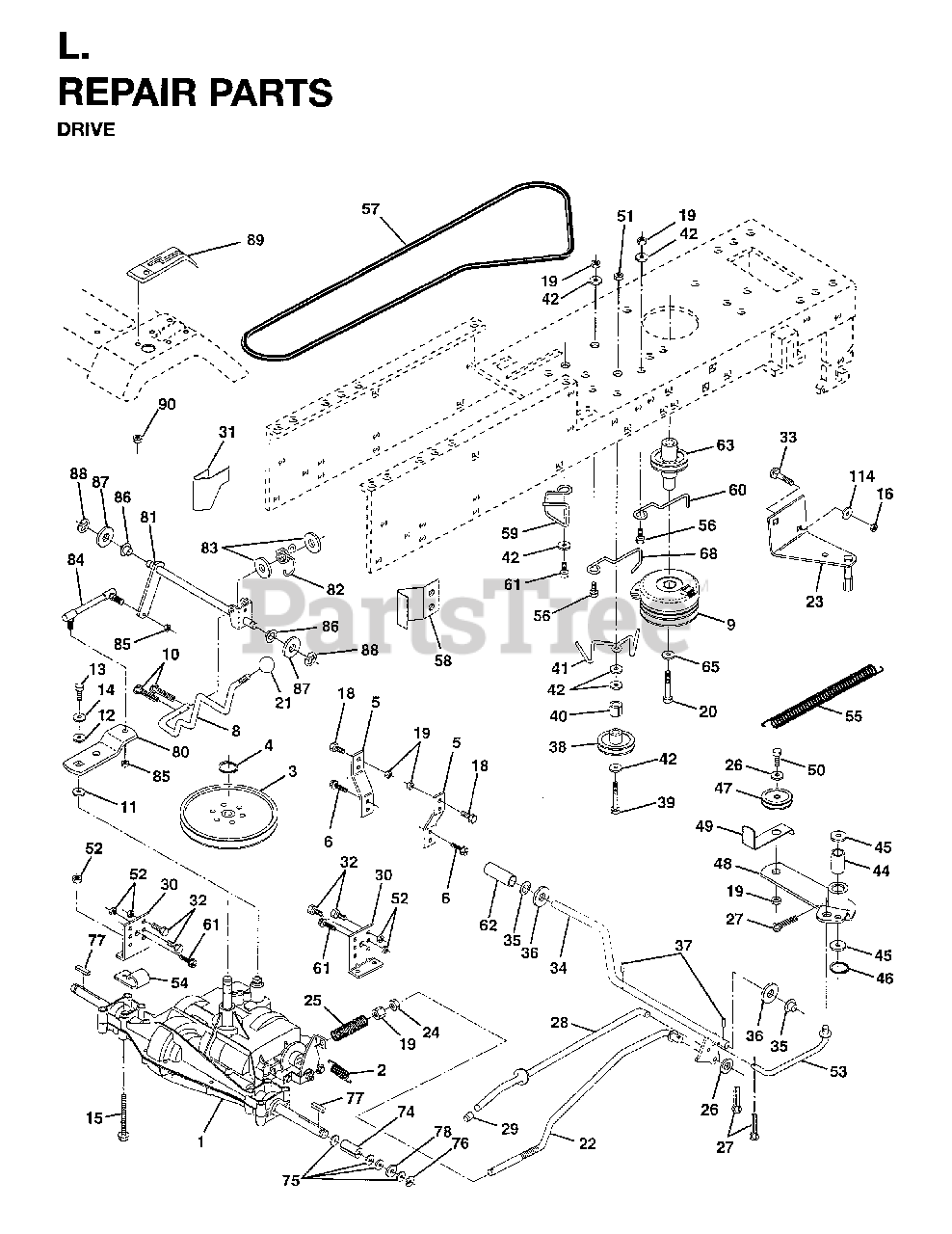

LT 15 (954820221) - Jonsered Lawn Tractor (1996-01) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title
1

Jonsered 532145600

TRANSAXLE NLA

$

$

Not available

2

Jonsered 532146682

SPRING,BRAKE RETURN

$8.99

$

In Stock, only 2 left!

0

3

Jonsered 532123666

PULLEY TRANS

$45.99

$

In Stock, only 1 left!

0

4

Jonsered 532002267

RETAINING RING
(Superseded to 812000028)

$7.49

$

In Stock, Qty 8

0

5

Jonsered 532121520

STRAP TORQUE

$7.99

$

In Stock, only 3 left!

0

6

Jonsered 874780512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

8

Jonsered 532141002

SHIFT ROD

$

$

Not available

9

Jonsered 532145028

CLUTCH, ELECTRIC

Note: CORRECTION :

$

$

Not available

10

Jonsered 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

11

Jonsered 532105701

WASH-SHFT PLT LT

$6.49

$

Usually ships in 3-10 days

0

13

Jonsered 874550412

BOLT 1/4-28X3/4
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

14

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

15

Jonsered 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

17

$8.99

$

In Stock, only 3 left!

0

19

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 8

0

20

Jonsered 871170768

BOLT
(Superseded to 532173937)

$4.99

$

In Stock, only 1 left!

0

21

Jonsered 532121274

KNOB.DUCKHEAD.1/2

$10.99

$

Usually ships in 3-10 days

0

22

Jonsered 532130804

ROD BRAKE

$31.99

$

Usually ships in 3-10 days

0

23

Jonsered 532137141

BRACKET ASM MTG
(Superseded to 137141)

$

$

Not available

24

Jonsered 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 2 left!

0

25

Jonsered 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Jonsered 734117201

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

27

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Jonsered 532145204

ROD BRAKE PARK LT

$

$

Not available

29

Jonsered 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

30

Jonsered 532130807

BRACKET TRANSAXLE

$3.99

$

Usually ships in 3-10 days

0

31

Jonsered 532127275

KEEPER BELT LH

$

$

Not available

32

Jonsered 874780512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

33

Jonsered 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

34

Jonsered 532151128

No Description Available
(Superseded to 151128)

$

$

Not available

35

Jonsered 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

36

$

$

Not available

37

Jonsered 532002882

DRIVE PIN
(Superseded to 532001572)

$

$

Not available

38

Jonsered 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

40

Jonsered 532004470

SPACER T
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

41

Jonsered 532153399

No Description Available

$

$

Not available

42

Jonsered 734117201

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

44

Jonsered 532105706

BEARING LT

$7.49

$

Usually ships in 3-10 days

0

45

Jonsered 532110812

WASHER LT
(Superseded to 110812X)

$

$

Not available

46

Jonsered 812000039

KLIP RING

$6.49

$

In Stock, Qty 7

0

47

Jonsered 532127783

IDLER PULLEY
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

48

Jonsered 532123789

ARM IDLER

$

$

Not available

49

Jonsered 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

50

Jonsered 874780624

BOLT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

51

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 8

0

52

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Jonsered 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Jonsered 532105709

SPRING, RETURN LT

$11.99

$

In Stock, Qty 5

0

56

Jonsered 874780620

BOLT
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

57

Jonsered 532138255

BELT, V GROUND DRIVE 95 25

$39.99

$

In Stock, only 3 left!

0

58

$4.99

$

Usually ships in 3-10 days

0

59

Jonsered 532140312

KEEPER CENTER SPAN
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

60

Jonsered 532121218

KEEPER BELT ENGLH

$

$

Not available

$7.49

$

In Stock, only 2 left!

0

62

Jonsered 532123533

COVER, PEDAL

$6.99

$

Usually ships in 3-10 days

0

63

Jonsered 532140189

PULLEY CLU ELEC

$42.99

$

Usually ships in 3-10 days

0

65

Jonsered 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

68

Jonsered 532105730

KEEPER,BLT ENG LT

$4.99

$

Usually ships in 3-10 days

0

74

Jonsered 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

75

$3.49

$

Usually ships in 3-10 days

0

76

Jonsered 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

77

Jonsered 532123583

SQUARE KEY

$4.99

$

In Stock, only 1 left!

0

78

$4.99

$

In Stock, Qty 18

0

79

$9.49

$

In Stock, only 1 left!

0

80

Jonsered 532145090

ARM SHIFT

$7.99

$

Usually ships in 3-10 days

0

81

Jonsered 532136933

SHAFT ASMBLY
(Superseded to 532161077)

$

$

Not available

82

Jonsered 532123782

SPRING,TORSION

$4.99

$

Usually ships in 3-10 days

0

83

$6.49

$

In Stock, only 2 left!

0

84

Jonsered 532145643

ROD TIE 20"

$

$

Not available

85

Jonsered 873610400

NUT
(Superseded to 73610400)

$

$

Not available

86

Jonsered 532071208

BUSHING.STEERING.ROD

$3.99

$

Usually ships in 3-10 days

0

87

$

$

Not available

88

Jonsered 812000008

KLIP RING

$6.49

$

Usually ships in 3-10 days

0

89

Jonsered 532139991

CONSOLE SHIFT

$

$

Not available

$7.99

$

In Stock, only 1 left!

0

96

Jonsered 532004497

RETAINER M

$9.99

$

In Stock, Qty 12

0

$6.49

$

Usually ships in 3-10 days

0

112

Jonsered 734115441

WASHER - 26X6.5X1.6
(Superseded to 531003379)

$4.99

$

Usually ships in 3-10 days

0

113

Jonsered 532127285

STRAP TORQUE LH LT

$

$

Not available
