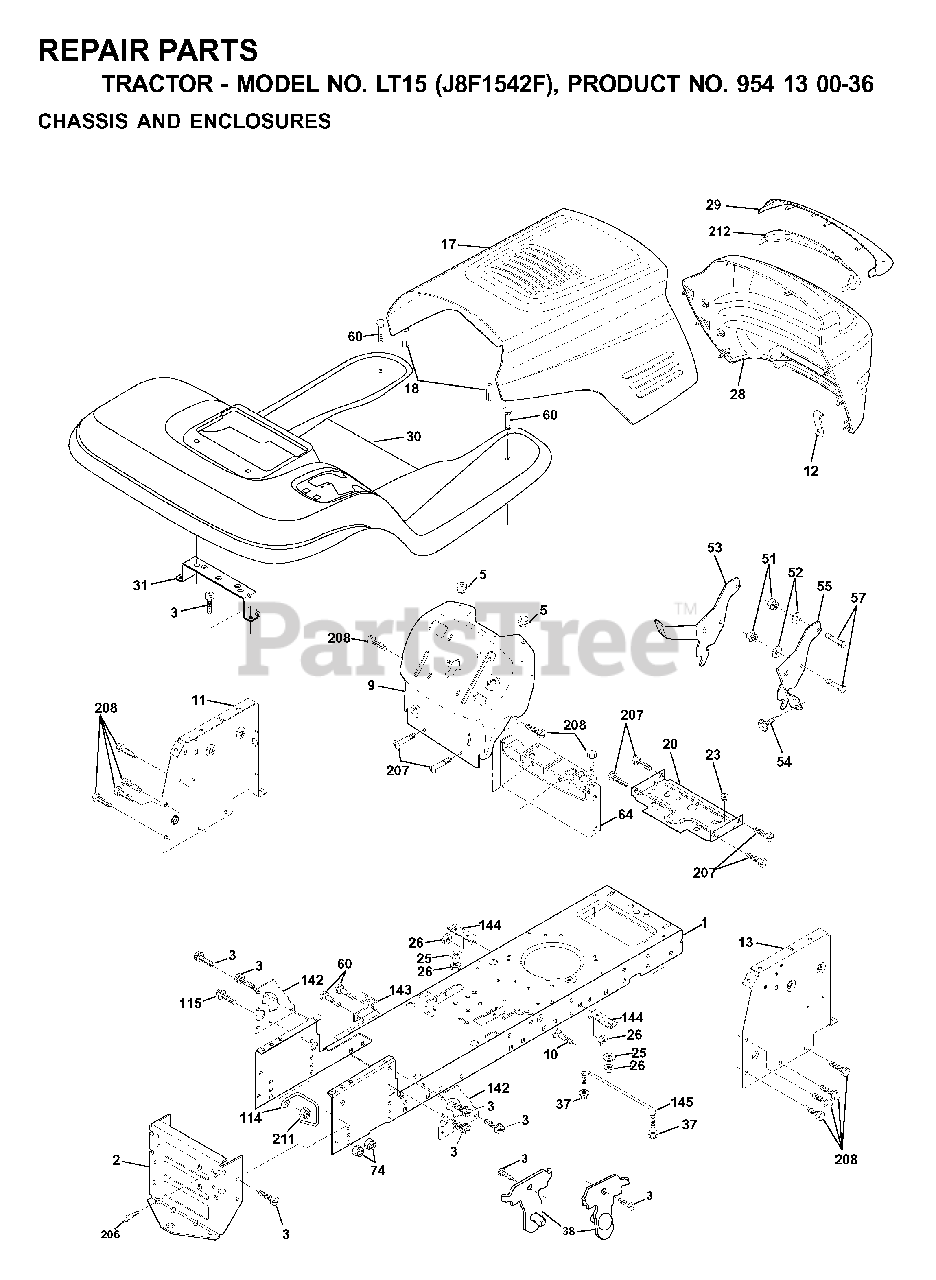

LT 15 (954130036) - Jonsered Lawn Tractor (2000-04) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

CHASSIS ENCLOSURES Parts Diagram

  • Title
1

$

$

Not available

2

Jonsered 532169061

DRAWBAR
(Superseded to 532176554)

$43.99

$

Usually ships in 3-10 days

0

3

Jonsered 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

5

Jonsered 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, only 3 left!

0

9

Jonsered 532172151

No Description Available
(Superseded to 532193510)

$62.99

$

Usually ships in 3-10 days

0

10

Jonsered 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Jonsered 532155927

PANEL DASH LH
(Superseded to 532174996)

$

$

Not available

$3.49

$

In Stock, only 1 left!

0

13

Jonsered 532169118

PANEL DASH

$

$

Not available

14

$6.49

$

Usually ships in 3-10 days

0

17

Jonsered 532150760

No Description Available

$

$

Not available

18

Jonsered 532126938

BUMPER HOOD T

$

$

Not available

20

Jonsered 532156437

PLATE MTG
(Superseded to 532180679)

$11.99

$

Usually ships in 3-10 days

0

23

Jonsered 532124028

GROMMET T

$5.99

$

In Stock, only 3 left!

0

25

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

26

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Jonsered 532172170

No Description Available

$31.99

$

Usually ships in 3-10 days

0

29

Jonsered 532166603

No Description Available

$

$

Not available

30

Jonsered 532172157

No Description Available

$

$

Not available

31

$17.99

$

Usually ships in 3-10 days

0

37

$6.49

$

Usually ships in 3-10 days

0

38

Jonsered 532169834

BRACKET
(Superseded to 532175710)

$11.99

$

Usually ships in 3-10 days

0

51

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

52

$6.49

$

Usually ships in 3-10 days

0

53

Jonsered 532145201

No Description Available

$

$

Not available

$

$

Not available

55

$

$

Not available

57

Jonsered 874780412

BOLT
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

64

Jonsered 532154798

DASH LOWER
(Superseded to 154798)

$15.99

$

Usually ships in 3-10 days

0

74

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

114

Jonsered 532158112

No Description Available
(Superseded to 584448901)

$8.99

$

Usually ships in 3-10 days

0

115

Jonsered 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

142

Jonsered 532165867

PLATE
(Superseded to 532175702)

$9.49

$

Usually ships in 3-10 days

0

143

Jonsered 532154966

BRACKET, SWAY BAR
(Superseded to 532186689)

$6.99

$

In Stock, only 2 left!

0

144

Jonsered 532154207

BRACKET FOOTREST
(Superseded to 532175582)

$7.49

$

Usually ships in 3-10 days

0

145

Jonsered 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

206

Jonsered 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 5

0

207

Jonsered 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

208

Jonsered 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

211

Jonsered 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

212

Jonsered 532165919

No Description Available

$

$

Not available

--

Jonsered 532005479

PLUG BUTTON T

$5.99

$

Usually ships in 3-10 days

0
