LT-15 (13A2682F190) - White Outdoor 38" Lawn Tractor (2003) Steering, Front Wheels & Axle Parts Diagram

38" Lawn Tractor

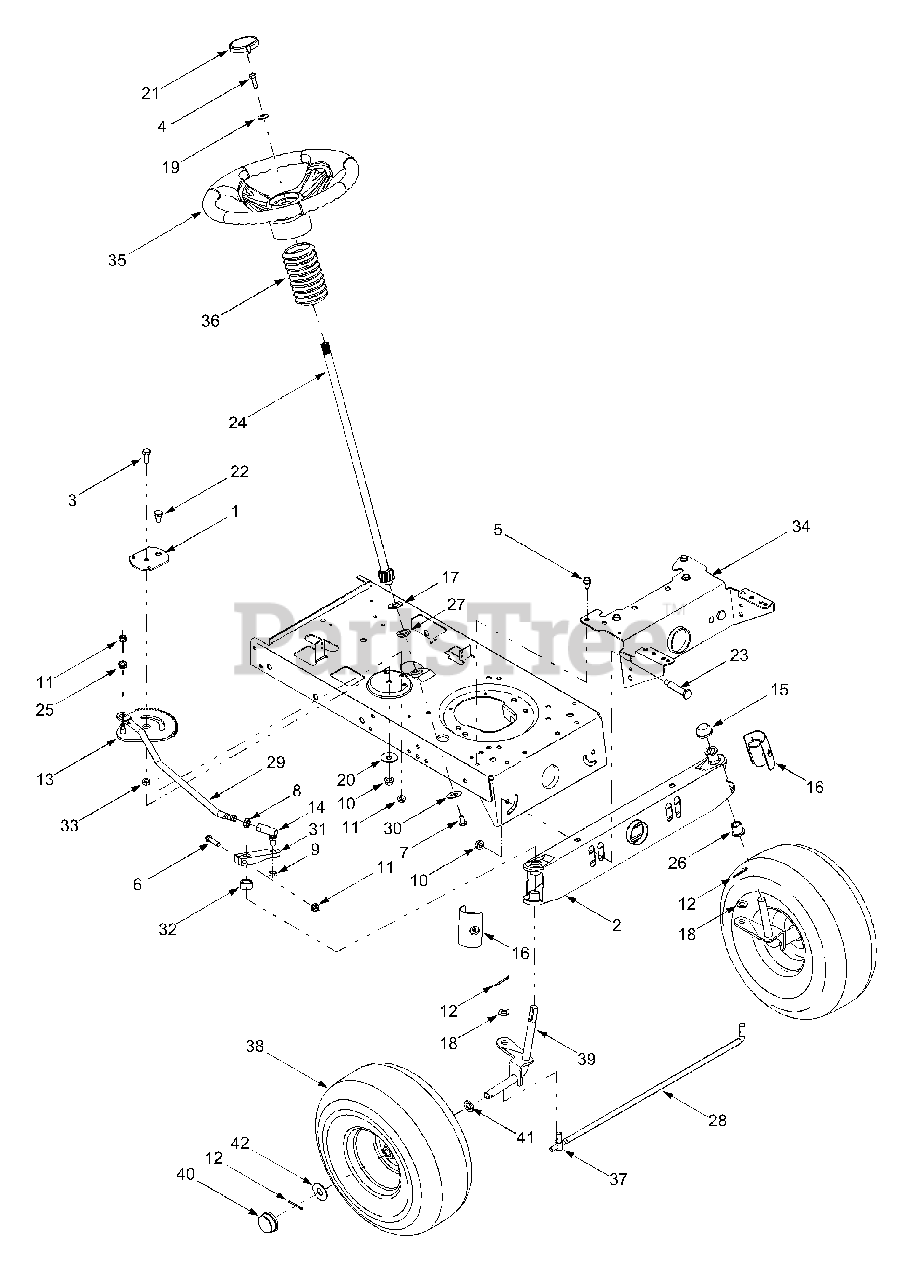

Steering, Front Wheels & Axle Parts Diagram

  • Title

1

White Outdoor 17198A

Retainer Gear Segment Plate
(Superseded to 783P08577A)

$7.49

$

In Stock, Qty 20+

0

2

White Outdoor 683-0002A

Pivot Bar, .625
(Superseded to 683-0002B-0637)

Variations

White Outdoor 683-0002A-0637

Pivot Bar, Steel - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-0643

Hex Cap Screw, 5/16-18 x 1.0

$6.99

$

In Stock, Qty 5

0

5

White Outdoor 710-0726

Self-tapping Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0805

Hex Cap Screw, 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-1309

Machine Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 712-0240

Jam Nut, 7/16-20 (Grade 2)
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 712-0262

Jam Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

11

White Outdoor 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 717-1757

Stearing Segment Gear
(Superseded to 717-1757A)

$53.99

$

In Stock, only 1 left!

0

14

White Outdoor 723-0448A

Ball Joint, 7/16 -20
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

15

White Outdoor 726-0214

Push Cap, .625

$10.99

$

In Stock, only 3 left!

0

16

White Outdoor 731-04058

Axle End Cap, w/ Fitting

$4.99

$

In Stock, Qty 11

0

17

White Outdoor 736-0187

Flat Washer, .64 x 1.24 x .060

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 736-0226

Flat Washer, .474 x .879 x .064
(Superseded to 936-0226)

$3.99

$

In Stock, only 1 left!

0

19

White Outdoor 736-0242

Bell Washer, .34 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 736-0356

Bell Washer, .391 x .380 x .062
(Superseded to 936-0356)

$

$

Not available

21

White Outdoor 731-04039

Steering Wheel Cap, Small

$8.49

$

In Stock, only 1 left!

0

22

White Outdoor 738-0141

Shoulder Screw, .435 x .350, 5/16-18
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

23

White Outdoor 738-0527

Shoulder Screw, .498 x 2.045

$8.49

$

In Stock, Qty 6

0

24

White Outdoor 738-0919

Steering Shaft, 21.86
(Superseded to 738-0919B)

$59.99

$

In Stock, Qty 20+

0

25

White Outdoor 741-0475

Plastic Bushing, .38 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 741-0487A

Flange Bushing, .632 ID
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

27

White Outdoor 741-0656

Hex Flange Bearing, 5/8
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

28

White Outdoor 747-04057

Tie Rod, Adjustable

$

$

Not available

29

White Outdoor 747-1268A

Steering Drag Link, 7/16-20
(Superseded to 747-1268B)

$

$

Not available

30

White Outdoor 748-0389

Cap, 1.25 x .16
(Superseded to 948-0389)

$5.49

$

In Stock, Qty 20+

0

31

White Outdoor 748-04014A

Steering Arm
(Superseded to 948-04014B)

$26.99

$

Usually ships in 3-6 days

0

32

White Outdoor 748-04020

Spacer, 1.0 x .645 x .56
(Superseded to 948-04020)

$7.49

$

In Stock, only 1 left!

0

33

White Outdoor 750-0535

Spacer, .380 x .625 x .21
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 783-0041A

Pivot Bar Bracket
(Superseded to 783-0041C)

Variations

White Outdoor 783-0041A-0483

Pivot Bar Bracket - CHARCOAL GRAY (0483)

$89.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0041A-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0041A-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0041A-0638

BRACKET-PIVOT BAR - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0041A-0648

BRACKET-PIVOT BAR - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0041A-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

$77.99

$

Usually ships in 3-6 days

0

35

White Outdoor 631-04028

Steering Wheel, Three Spoke

$69.99

$

In Stock, only 1 left!

0

36

White Outdoor 731-0954

Steering Bellow, 4.75"
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

37

White Outdoor 711-04059

Ferrule, 3/8-24 x .437 Dia
(Superseded to 911-04059)

$11.99

$

Usually ships in 3-6 days

0

38

White Outdoor 634-0105A

Square Shoulder Wheel Ass'y Complete
(Superseded to 634-0105B)

Variations

White Outdoor 634-0105A-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$249.99

$

In Stock, only 4 left!

0

White Outdoor 634-0105A-0912

Wheel Assembly, Gray - Dico Gray (0912)

$249.99

$

In Stock, only 4 left!

0

White Outdoor 634-0105A-0914

Wheel Assembly, Gray - Cheng Gray (0914)

$249.99

$

In Stock, only 4 left!

0

White Outdoor 634-0105A-0915

Wheel Assembly, Gray - Duro Gray (0915)

$249.99

$

In Stock, only 4 left!

0

White Outdoor 634-0105A-0916

Wheel Assembly, Gray - Kenda Gray (0916)

$249.99

$

In Stock, only 4 left!

0

White Outdoor 634-0105A-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$

$

Not available

White Outdoor 634-0105A-0941

WHL ASM-COMP - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 634-0105A-0945

WHL ASM-COMP - Duro Yellow (0945)

$

$

Not available

$202.99

$

Usually ships in 3-6 days

0

39

White Outdoor 683-04016

RH Axle Assembly
(Superseded to 683-04016-0637)

Variations

White Outdoor 683-04016-0637

Front Axle Assembly, RH Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 2 left!

0

$48.99

$

In Stock, only 2 left!

0

White Outdoor 683-04015

LH Axle Assembly

Variations

White Outdoor 683-04015-0637

Front Axle Assembly, Black - POWDER BLACK (0637)

$107.99

$

In Stock, only 1 left!

0

$107.99

$

In Stock, only 1 left!

0

40

White Outdoor 731-0484A

Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

41

White Outdoor 736-0162

Flat Washer, .64 x 1.0 x .12

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 736-0285

Flat Washer, .635 x 1.589 x .06

$4.49

$

In Stock, Qty 20+

0

White Outdoor 634-0105A

Wheel Ass'y Complete (Square Shoulder)
(Superseded to 634-0105B)

Variations

White Outdoor 634-0105A-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$249.99

$

In Stock, only 4 left!

0

White Outdoor 634-0105A-0912

Wheel Assembly, Gray - Dico Gray (0912)

$249.99

$

In Stock, only 4 left!

0

White Outdoor 634-0105A-0914

Wheel Assembly, Gray - Cheng Gray (0914)

$249.99

$

In Stock, only 4 left!

0

White Outdoor 634-0105A-0915

Wheel Assembly, Gray - Duro Gray (0915)

$249.99

$

In Stock, only 4 left!

0

White Outdoor 634-0105A-0916

Wheel Assembly, Gray - Kenda Gray (0916)

$249.99

$

In Stock, only 4 left!

0

White Outdoor 634-0105A-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$

$

Not available

White Outdoor 634-0105A-0941

WHL ASM-COMP - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 634-0105A-0945

WHL ASM-COMP - Duro Yellow (0945)

$

$

Not available

$202.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0172

Rim Assembly (Square Shoulder)
(Superseded to 934-0172A)

Variations

White Outdoor 634-0172-0499

Rim Assembly, Beige - CUB BEIGE (0499)

$103.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0172-0662

Rim Assembly, Gray - OYSTER GRAY (0662)

$103.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0172-0674

RIM 6 X 4.5-YELLOW - YARDMAN YELLOW (0674)

$103.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0172-0688

Rim Assembly, Gray - SPRING GREEN (0688)

$103.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

White Outdoor 741-0706

Inner Bearing (Flange w/ Fitting) Square Shoulder
(Superseded to 941-0706)

$8.49

$

In Stock, Qty 7

0

White Outdoor 741-0487A

Outer Bearing (Plastic Flange) Square Shoulder
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

White Outdoor 734-1731

Tire Only (15 x 6 x 6) Square Shoulder

Variations

White Outdoor 734-1731-0901

TIRE SQUARE TREAD 15 X 5 - Carlisle (0901)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1731-0902

TIRE 15 X 6 DICO-M - Dico (0902)

$44.99

$

In Stock, only 2 left!

0

White Outdoor 734-1731-0904

TIRE SQUARE TREAD 15 X 5 - Cheng (0904)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1731-0905

TIRE 15 X 6 - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1731-0906

TIRE 15 X 6 KENDA - Kenda (0906)

$49.99

$

Usually ships in 3-6 days

0

$111.99

$

In Stock, only 1 left!

0

White Outdoor 734-0255

Air Valve (Square Shoulder)
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0
