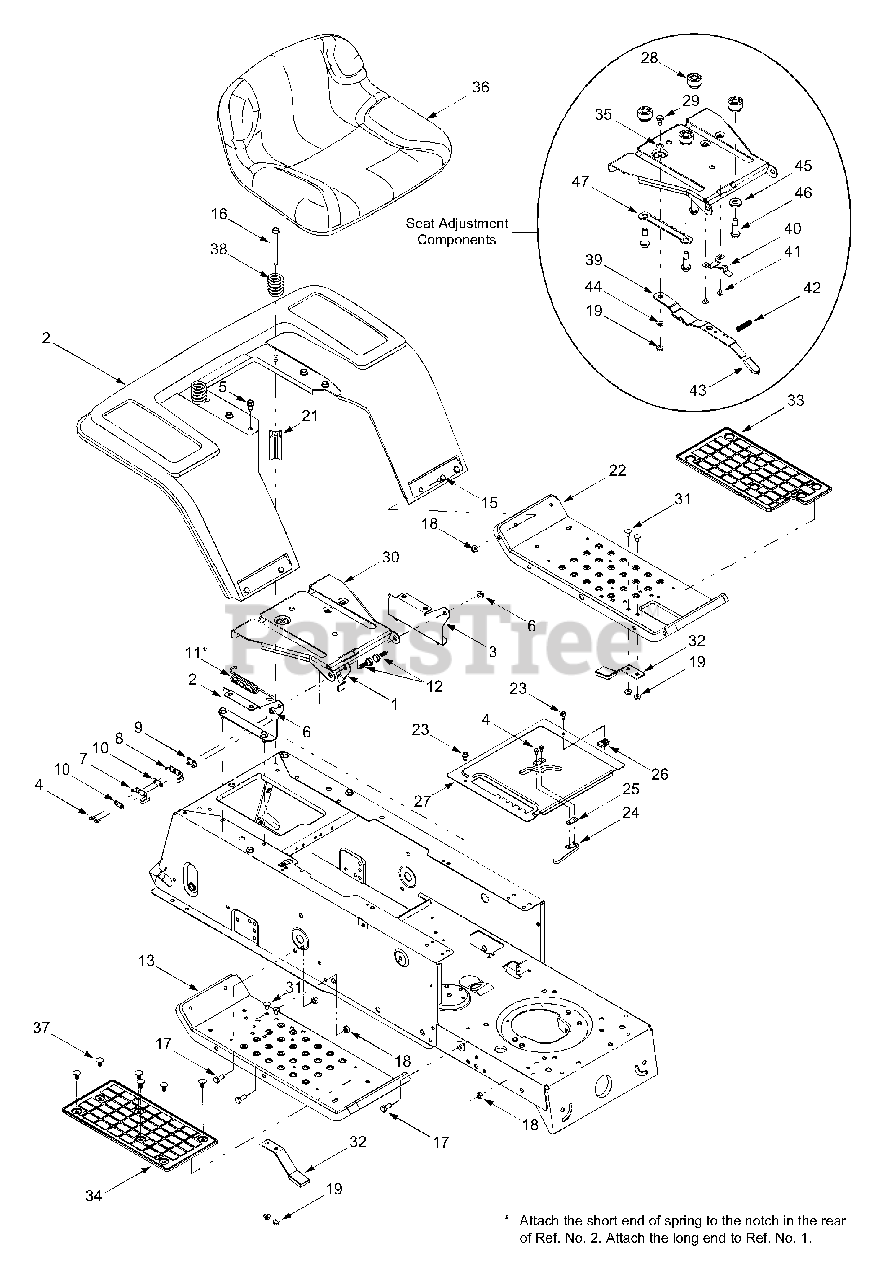

LT-15 (13A2682F190) - White Outdoor 38" Lawn Tractor (2003) Fender, Seat, Deck Stabilizer Parts Diagram

38" Lawn Tractor

Fender, Seat, Deck Stabilizer Parts Diagram

  • Title

1

White Outdoor 17239A

Seat Lift Bracket
(Superseded to 17239C)

$

$

Not available

2

White Outdoor 17950A

RH Pivot Support Bracket, Seat
(Superseded to 17950A-0637)

Variations

White Outdoor 17950A-0637

Seat Support Bracket, RH - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

3

White Outdoor 17951A

LH Pivot Support Bracket, Seat
(Superseded to 17951A-0637)

Variations

White Outdoor 17951A-0637

Seat Support Bracket, LH - POWDER BLACK (0637)

$26.99

$

In Stock, only 1 left!

0

$26.99

$

In Stock, only 1 left!

0

4

White Outdoor 710-0227

Self-tapping Screw, #8-18 x .50

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0726

Self-tapping Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 725-1303

Outer Seat Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

8

White Outdoor 725-1439

Inner Seat Spring Switch

$8.49

$

In Stock, Qty 10

0

9

White Outdoor 726-0278

Insulator Plate Boss

$6.99

$

In Stock, Qty 10

0

10

White Outdoor 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

11

White Outdoor 732-0581B

Extension Spring, .75 x 5.31
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

12

White Outdoor 738-0296

Shoulder Screw, .437 x .286

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 17770G

Running Board
(Superseded to 17770H)

Variations

White Outdoor 17770G-0480

BOARD-RUNNING - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 17770G-0483

BOARD-RUNNING - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17770G-0499

BOARD-RUNNING - CUB BEIGE (0499)

$

$

Not available

White Outdoor 17770G-0629

BOARD-RUNNING - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 17770G-0637

BOARD-RUNNING - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17770G-0662

BOARD-RUNNING - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17770G-0665

BOARD-RUNNING - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17770G-0687

BOARD-RUNNING - PINE GREEN (0687)

$

$

Not available

White Outdoor 17770G-0638

BOARD-RUNNING - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17770G-0667

BOARD-RUNNING - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 17770G-0691

BOARD-RUNNING - BLACK JACK (0691)

$

$

Not available

White Outdoor 17770G-0692

BOARD-RUNNING - AGWAY BLUE (0692)

$

$

Not available

White Outdoor 17770G-0709

BOARD-RUNNING - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

?14

White Outdoor 17870B

Fender
(Superseded to 17870C)

Variations

White Outdoor 17870B-0480

FENDER-RR W/FRAME - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 17870B-0483

FENDER-RR W/FRAME - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17870B-0498

FENDER-RR W/FRAME - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 17870B-0499

FENDER-RR W/FRAME - CUB BEIGE (0499)

$

$

Not available

White Outdoor 17870B-0629

FENDER-RR W/FRAME - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 17870B-0638

FENDER-RR W/FRAME - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17870B-0648

FENDER-RR W/FRAME - TECH GRAY (0648)

$

$

Not available

White Outdoor 17870B-0650

FENDER-RR W/FRAME - RED METALLIC (0650)

$

$

Not available

White Outdoor 17870B-0662

FENDER-RR W/FRAME - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17870B-0665

FENDER-RR W/FRAME - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17870B-0667

FENDER-RR W/FRAME - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 17870B-0691

FENDER-RR W/FRAME - BLACK JACK (0691)

$

$

Not available

White Outdoor 17870B-0709

FENDER-RR W/FRAME - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

15

White Outdoor 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 710-1208

Self-tapping Screw, 5/16-18 x 3.5

$6.99

$

In Stock, only 2 left!

0

17

White Outdoor 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 712-0429

Nylon Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 712-3027

Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

?20

White Outdoor 732-04038

Compression Spring, 1.314 x 1.8
(Superseded to 932-04038)

$

$

Not available

21

White Outdoor 748-0347A

Spacer

$

$

Not available

22

White Outdoor 783-04139

LH Running Board

Variations

White Outdoor 783-04139-0637

No Longer Available BOARD - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-04139-0638

BOARD-RUNNING LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04139-0650

BOARD-RUNNING LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04139-0662

BOARD-RUNNING LH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-04139-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-04139-0667

BOARD-RUNNING LH - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-04139-0691

BOARD-RUNNING LH - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-04139-0709

BOARD-RUNNING LH - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

23

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 725-1643

Spring Switch, Long

$10.99

$

In Stock, only 1 left!

0

25

White Outdoor 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

26

White Outdoor 726-3054

U-Clip Nut, 1/4-20

$4.99

$

Usually ships in 3-6 days

0

27

White Outdoor 783-04050

Shift Cover Panel, 8-speed
(Superseded to 783-04050A-0637)

Variations

White Outdoor 783-04050-0637

COVER-SHIFT 8 SPD - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 731-04074

Spacer

$7.49

$

In Stock, Qty 20+

0

29

White Outdoor 938-0137A

Shoulder Screw, .340 x .285, 1/4- 20
(Superseded to 738-0137A)

$10.99

$

In Stock, Qty 10

0

30

White Outdoor 783-0607A

Seat Pivot Bracket

Variations

White Outdoor 783-0607A-0637

BRACKET SEAT PIVOT - POWDER BLACK (0637)

$

$

Not available

$

$

31

White Outdoor 710-0167

Carriage Screw, 1/4-20 x .50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

32

White Outdoor 761-0168B

Blade Spindle Brake Assembly
(Superseded to 961-0168D)

$31.99

$

In Stock, only 1 left!

0

33

White Outdoor 735-04009

LH Rubber Foot Pad

$

$

Not available

34

White Outdoor 735-0689A

RH Rubber Foot Pad

$

$

Not available

35

White Outdoor 736-0204

Flat Washer, .344 x .62

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 757-0363A

Low Back Seat, Black
(Superseded to 957-0378)

$

$

Not available

37

White Outdoor 726-3046

Ratchet Clip, .250 Dia

$3.99

$

In Stock, Qty 16

0

38

White Outdoor 732-0735

Compression Spring, 1.314 x 2.55
(Superseded to 732-0735A)

$29.99

$

In Stock, Qty 5

0

39

White Outdoor 783-0609

Seat Adjustment Lever

$

$

Not available

40

White Outdoor 783-0611

Seat Stop

$10.99

$

In Stock, only 3 left!

0

41

White Outdoor 710-1268

Screw, #10-16 x .375

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 732-0499

Compression Spring

$9.49

$

In Stock, only 1 left!

0

43

White Outdoor 720-0309A

Grip

$9.49

$

Usually ships in 3-6 days

0

44

White Outdoor 736-0175

Spring Washer
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

45

White Outdoor 736-3019

Flat Washer, .531 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

46

White Outdoor 738-0966

Shoulder Screw, .50 x .925, 3/8-16
(Superseded to 738-0966A)

$4.99

$

In Stock, Qty 19

0

47

White Outdoor 783-0753

Seat Select Bracket

$15.99

$

In Stock, only 1 left!

0
