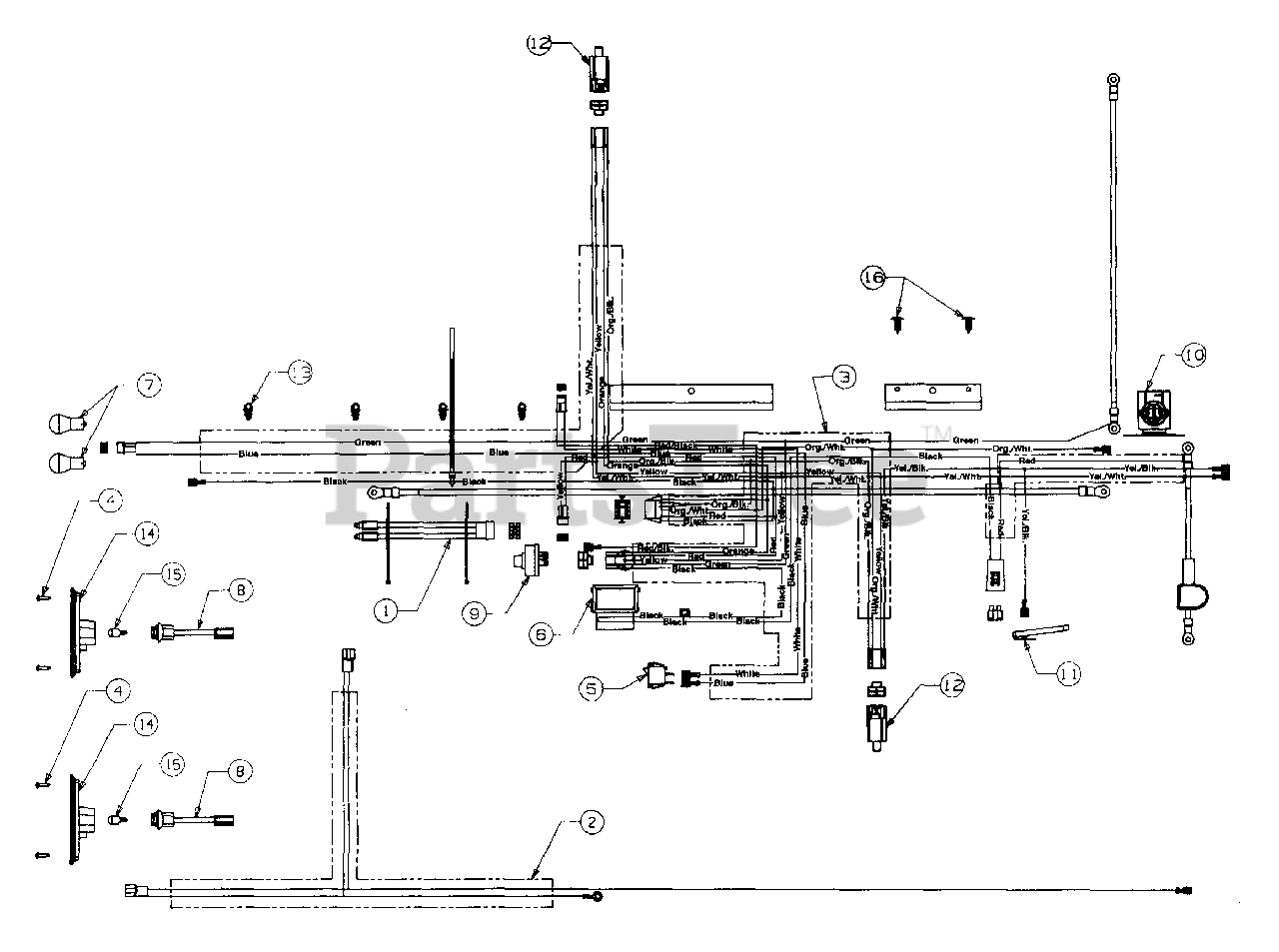

LT-15 (136D686G190) - White Outdoor 42" Lawn Tractor (1996) Wiring Harness And Switches Parts Diagram

42" Lawn Tractor

Wiring Harness And Switches Parts Diagram

  • Title

1

White Outdoor 629-0132

Harness Adapter (Monitor)

$

$

Not available

2

White Outdoor 629-0134

Harness Adapter (Tail light)

$

$

Not available

3

White Outdoor 629-0306

Wire Harness
(Superseded to 929-0306E)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

4

White Outdoor 710-0936

Truss Machine Screw

$4.49

$

Usually ships in 3-6 days

0

5

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

6

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

7

White Outdoor 725-0963

Bulb (Headlight)
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

8

White Outdoor 725-1380

Wire Harness (Tail light)

$

$

Not available

9

White Outdoor 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

10

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

11

White Outdoor 725-1643

Safety Switch (Reverse)

$10.99

$

In Stock, only 1 left!

0

12

White Outdoor 725-1657A

Safety Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

13

White Outdoor 725-1711

Clip

$

$

Not available

14

725-3018

Tail light

$

$

Not available

15

White Outdoor 725-3020

Bulb (Tail light)
(Superseded to 925-3020)

$

$

Not available

16

White Outdoor 726-3046

Ratchet

$3.99

$

In Stock, Qty 16

0
