LT-15 (134R676G190) - White Outdoor 42" Lawn Tractor (1994) Engine Assembly Parts Diagram

42" Lawn Tractor

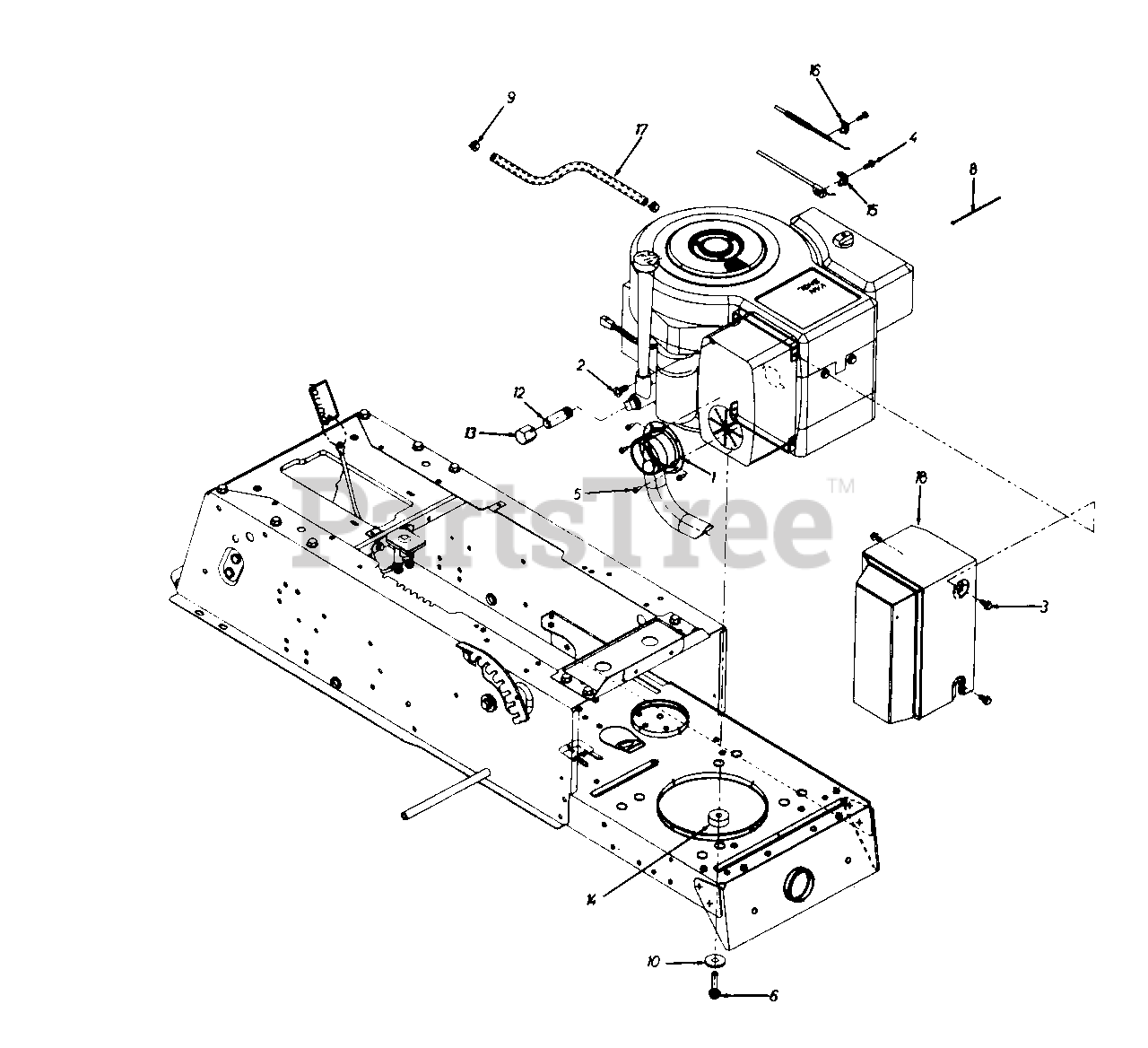

Engine Assembly Parts Diagram

  • Title

1

White Outdoor 651-0006

Exhaust Pipe Ass'y.

Note: Code: N notates a new part (not previously existing).

$

$

Not available

2

White Outdoor 710-0323

Pan Hd. Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

3

White Outdoor 710-0599

Hex Wash. Hd. Scr. 1/4 x 20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-1237

Hex Wash. Hd. Scr. #10-32 x 5/8" Lg.

$4.49

$

Usually ships in 3-6 days

0

5

White Outdoor 710-0148

Hex Wash. Tap Scr. #8-32 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

6

White Outdoor 710-1007

Hex L-Wash. TT-Tap Scr. 3/8-16 x 1.5" Lg.

$6.49

$

In Stock, only 1 left!

0

8

White Outdoor 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

9

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 736-0247

Fl-Wash. 3/8" I.D. x 1.25" O.D.

$9.49

$

In Stock, Qty 14

0

12

White Outdoor 737-0199

Pipe Nipple 3/8-18 NPT
(Superseded to 937-0199)

$

$

Not available

13

White Outdoor 737-0143

Oil Drain Cap

$

$

Not available

14

White Outdoor 750-0965

Shld. Spacer.38" I.D. x 1.25"

$

$

Not available

15

White Outdoor 751-0360A

Casing Clamp
(Superseded to 751B221535)

$10.99

$

In Stock, Qty 10

0

16

White Outdoor 751B221535

Casing Clamp

$10.99

$

In Stock, Qty 10

0

17

White Outdoor 751-0535-15

Fuel Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

18

White Outdoor 17984A

Muffler Heat Shield Ass'y.

Note: Code: N notates a new part (not previously existing).

$

$

Not available
