LT-15 (134R676G190) - White Outdoor 42" Lawn Tractor (1994) Electrical System Parts Diagram

42" Lawn Tractor

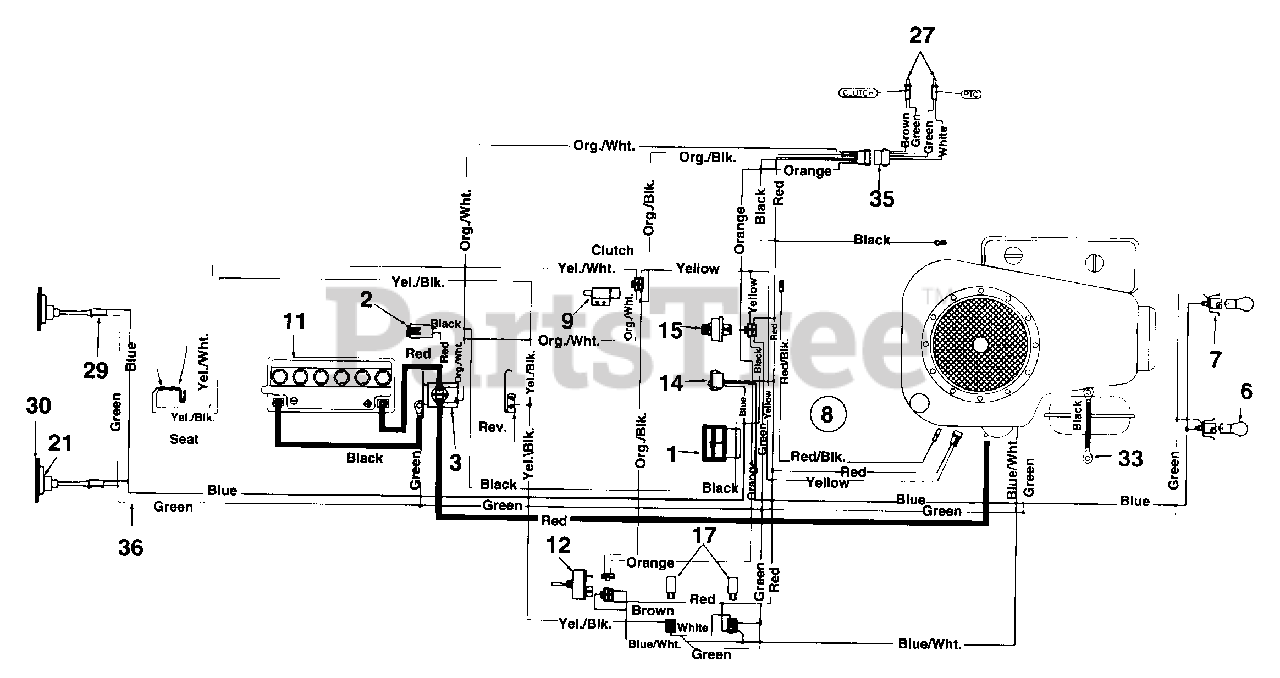

Electrical System Parts Diagram

  • Title
1

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

2

White Outdoor 725-1381

Fuse 20 Amps
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0

3

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

6

White Outdoor 725-0963

Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

7

White Outdoor 725-1649

Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

8

White Outdoor 629-0206

Wire Harness

Note: Code: N notates a new part (not previously existing).

$

$

Not available

9

White Outdoor 725-1657

Safety Switch (Clutch)
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

11

White Outdoor 725-1635

Battery 12V
(Superseded to 753-0608)

$

$

Not available

12

White Outdoor 725-0893

Switch (PTO)
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0

14

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

15

White Outdoor 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

17

White Outdoor 725-1648

Relay
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 7

0

?18

White Outdoor 725-1643

Spring Lever

$10.99

$

In Stock, only 1 left!

0

?20

White Outdoor 725-1303

Safety Switch (Seat)
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

21

725-3018

Taillight

$

$

Not available

27

White Outdoor 725-1365

Bulb
(Superseded to 925-1365)

$10.99

$

In Stock, only 1 left!

0

29

White Outdoor 725-1380

Taillight Harness

$

$

Not available

30

White Outdoor 725-3020

Bulb
(Superseded to 925-3020)

$

$

Not available

?31

White Outdoor 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 10

0

33

White Outdoor 725-0980

Wire 7.5" Lg.

$

$

Not available

35

White Outdoor 629-0132

Monitor Harness

Note: Code: N notates a new part (not previously existing).

$

$

Not available

36

White Outdoor 629-0134

Taillight Adapter Harness

Note: Code: N notates a new part (not previously existing).

$

$

Not available
