LT 14H411KV (80086) - Snapper 41" Lawn Tractor, 14hp (1991) Wheels - Front Parts Diagram

41" Lawn Tractor, 14hp

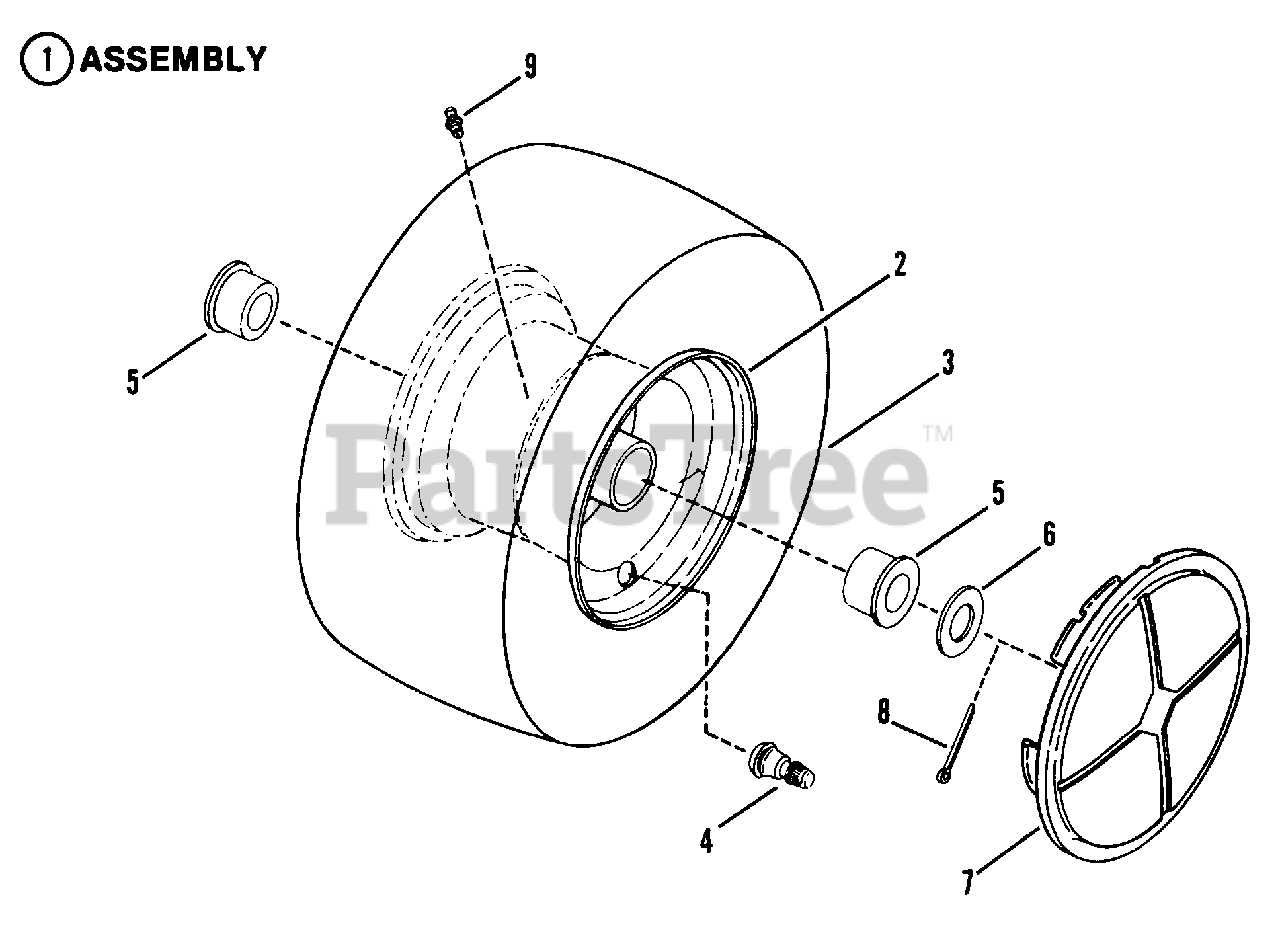

Wheels - Front Parts Diagram

  • Title
1

Snapper 7058517

ASSEMBLY, Front Tire & Rim 15x5.50-6.00
(Superseded to 7058517YP)

Note: Was 52185 (Includes Items 2, 3 & 4)

$167.99

$

Usually ships in 2-12 days

0

2

Snapper 7022772

RIM, 6 x 4.50
(Superseded to 7058517YP)

Note: Was 16739

$167.99

$

Usually ships in 2-12 days

0

3

Snapper 7072704

TIRE, 15-5.50 x 6
(Superseded to 7058517YP)

Note: Was 16740

$167.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7014483

BEARING, Wheel Flanged PM .758 ID x 1.38 OD x 1.0 L
(Superseded to 7014483YP)

$10.99

$

In Stock, Qty 11

0

6

Snapper 7032027

WASHER .77 x 1.5 x .06
(Superseded to 7032027SM)

$4.49

$

In Stock, Qty 7

0

7

Snapper 7019417

WHEEL-COVER
(Superseded to 7019417YP)

$7.49

$

In Stock, only 2 left!

0

8

Snapper 7091516

COTTER-PIN 5/32 x 1 YZ
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

9

Snapper 7076998

FITTING, Lube 1/4-28 Tapered Thread
(Superseded to 703153)

Note: Was 13876

$3.99

$

In Stock, Qty 12

0
