LT 14H411KV (80086) - Snapper 41" Lawn Tractor, 14hp (1991) Transmission Support & Components Parts Diagram

41" Lawn Tractor, 14hp

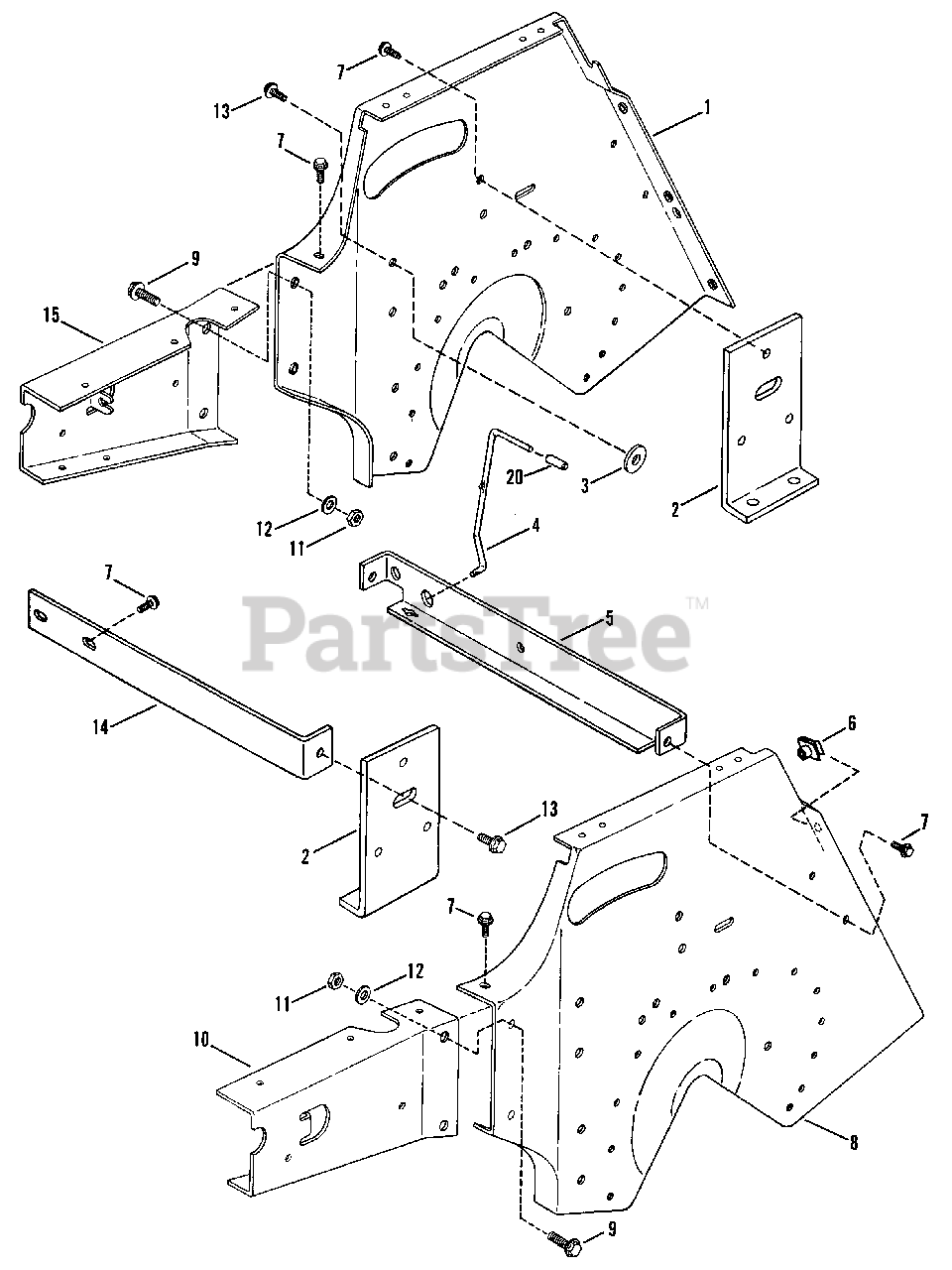

Transmission Support & Components Parts Diagram

  • Title

1

Snapper 7033063

TRANSMISSION SUPPORT, R.H. (No longer available)

Note: Was 33063

$

$

Currently unavailable

2

Snapper 7033059

BRACKET, Transmission Mount (No longer available)

Note: Was 33059

$

$

Currently unavailable

3

Snapper 7016360

WASHER .406 x 1.38 x .25

$

$

Not available

4

Snapper 7017164

ROD, Release
(Superseded to 7017164YP)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7033061

BRACE, Torque
(Superseded to 7033061YP)

$41.99

$

Usually ships in 2-12 days

0

6

Snapper 7016116

NUT, 5/16 Push-On
(Superseded to 7016116YP)

$2.49

$

In Stock, Qty 10

0

7

Snapper 7090361

SCREW, 5/16-18x5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

8

Snapper 7033062

TRANSMISSION SUPPORT, L.H. (No longer available)

Note: Was 33062

$

$

Currently unavailable

9

Snapper 7027198

BOLT, 3/8-16x1" Hex Flange Lock
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, only 2 left!

0

10

Snapper 7035179

EXTENSION, Transmission Support, L.H. (No longer available)

Note: Was 35179

$

$

Currently unavailable

11

Snapper 7091585

NUT, 3/8-16 Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

12

Snapper 7090122

WASHER, 3/8 SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7091541

SCREW, 5/16-18x3/4" Self-Tapping
(Superseded to 703228)

Note: Was 90368

$4.49

$

In Stock, Qty 20+

0

14

Snapper 7033065

BRACE, Shift Bracket (No longer available)

Note: Was 33065

$

$

Currently unavailable

15

Snapper 7035180

EXTENSION, Transmission Support, R.H. (No longer available)

Note: Was 35180

$

$

Currently unavailable

20

Snapper 7023606

CAP, Release Rod
(Superseded to 7023606YP)

Note: Was 23525

$3.99

$

In Stock, only 2 left!

0
