LT 14H411KV (80086) - Snapper 41" Lawn Tractor, 14hp (1991) Transmission Group Parts Diagram

41" Lawn Tractor, 14hp

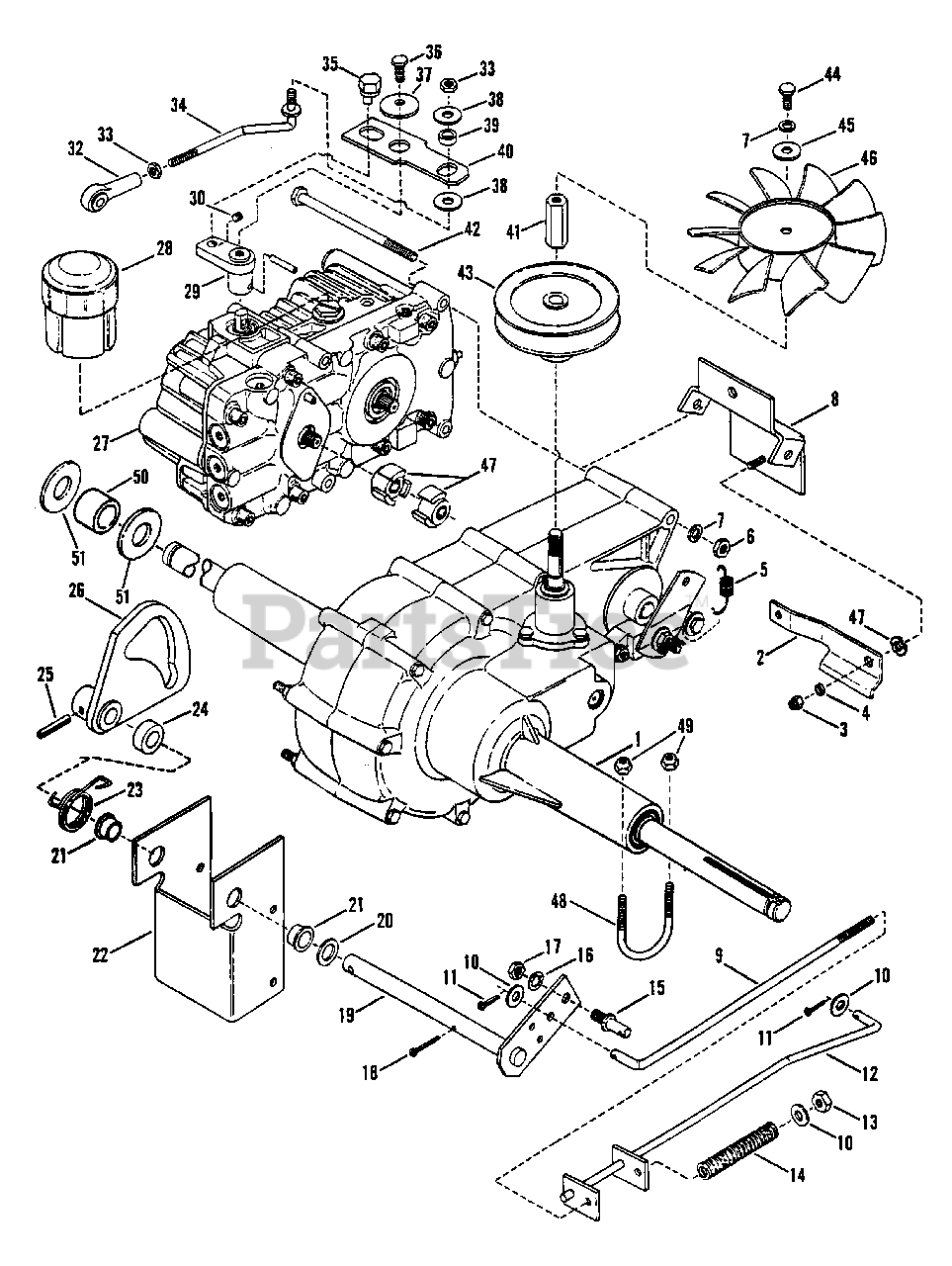

Transmission Group Parts Diagram

  • Title

1

Snapper 7026084

TRANSAXLE ASSEMBLY (HG, 215-1000)
(Superseded to 7026084YP)

Note: Was 16725

$1367.99

$

Usually ships in 2-12 days

0

2

Snapper 7034133

LEVER, Release

$

$

Currently unavailable

3

Snapper 7076978

NUT, 1/4-20 Hex Lock
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7017166

SPACER .37 OD x .271 ID x .120 L
(Superseded to 7017166YP)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 7016927

SPRING, Brake Return
(Superseded to 7016927YP)

$4.99

$

Usually ships in 2-12 days

0

6

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90628

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7052281

TORQUE BRACKET ASSEMBLY
(Superseded to 7052281YP)

$42.99

$

Usually ships in 2-12 days

0

9

Snapper 7017121

ROD, Brake Spring
(Superseded to 7017121YP)

$9.49

$

Usually ships in 2-12 days

0

10

Snapper 7090692

WASHER 5/16 x 7/8 x .083
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7090867

COTTER-PIN, 5/32 x 1"

Note: Was 90865

$

$

Not available

12

Snapper 7040702

ROD, Brake Stop

$

$

Not available

13

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 19

0

14

Snapper 7016721

SPRING, Brake

$

$

Not available

15

Snapper 7015464

STUD, Neutral Pivot
(Superseded to 7015464YP)

$7.49

$

In Stock, only 1 left!

0

16

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

17

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 1 left!

0

18

Snapper 7091809

COTTER-PIN, 1/8 x 1-1/4"
(Superseded to 7091809YP)

Note: Was 90042

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 7040703

NEUTRAL PIVOT ASSEMBLY

$

$

Not available

20

Snapper 7072801

WASHER

Note: Was 12855

$

$

Not available

21

Snapper 7016956

BEARING, 5/8 Flanged Nylon .625 ID x .719 x .325 (No longer available)

Note: Was 16956

$

$

Currently unavailable

22

Snapper 7033056

SUPPORT, Neutral Pivot

$

$

Not available

23

Snapper 7016723

SPRING, Torsion
(Superseded to 7016723YP)

$5.49

$

In Stock, only 1 left!

0

24

Snapper 7017165

SPACER, 1.120 OD x .635 ID x .38 L (No longer available)

Note: Was 17165

$

$

Currently unavailable

25

Snapper 7090842

PIN, Roll, 1/4 x 1-1/4"
(Superseded to 7090842YP)

$4.49

$

In Stock, only 2 left!

0

26

Snapper 7016715

CAM, Neutral Return
(Superseded to 7016715YP)

$35.99

$

Usually ships in 2-12 days

0

27

Snapper 7016726

TRANSMISSION, Hydro (HG BDU-105-120)
(Superseded to 7016726YP)

$1681.99

$

Usually ships in 2-12 days

0

28

Snapper 7016727

RESERVOIR ASSEMBLY (HG 2003081)
(Superseded to 7016727YP)

$71.99

$

Usually ships in 2-12 days

0

29

Snapper 7016712

HUB, Speed Control
(Superseded to 7016712YP)

$12.99

$

Usually ships in 2-12 days

0

30

Snapper 7013670

SCREW, 1/4-28, 1/8 Hex Socket Set (No longer available, try using 7077667)

Note: Was 13670

$

$

Not available

31

Snapper 7017732

PIN, Spiral 5 MM x 36 MM
(Superseded to 7017732YP)

$3.99

$

Usually ships in 2-12 days

0

32

Snapper 7027139

BALL JOINT, 5/16-24
(Superseded to 7027139YP)

Note: Was 17128

$18.99

$

Usually ships in 2-12 days

0

33

Snapper 7091297

NUT, 5/16-24 HeX
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

34

Snapper 7017816

ROD, Adjustment 4.41" l, 5/16-24 Ends (No longer available)

Note: Was 17816

$

$

Currently unavailable

35

Snapper 7014729

PIN, Eccentric
(Superseded to 7014729YP)

$8.49

$

In Stock, only 1 left!

0

36

Snapper 7090534

SCREW, 5/16-18 x 1/2" Hex Head Cap
(Superseded to 704317)

Note: Was 90203

$4.49

$

Usually ships in 2-12 days

0

37

Snapper 7014263

WASHER, Cone .32 x 1.4 x .1
(Superseded to 703939)

$7.99

$

Usually ships in 2-12 days

0

38

Snapper 7091130

WASHER, Flat .327 x .875 x .09
(Superseded to 7091130SM)

$3.99

$

In Stock, only 3 left!

0

39

Snapper 7011968

ROLLER
(Superseded to 7011968YP)

$4.49

$

Usually ships in 2-12 days

0

40

Snapper 7033054

PLATE, Speed Control
(Superseded to 7033054YP)

$13.99

$

Usually ships in 2-12 days

0

41

Snapper 7016717

NUT, Special 3/4 Hex Stock/5/16-24 Thru/9/16-18x1.0 Deep (No longer available)

Note: Was 16717

$

$

Currently unavailable

42

Snapper 7076940

SCREW, 5/16-18 x 4-1/2, Hex Head Cap
(Superseded to 7076940YP)

$5.99

$

In Stock, only 2 left!

0

42

Snapper 7090924

SCREW, 5/16-18 x 4-1/8" Hex Head Cap
(Superseded to 7090924YP)

Note: (Not Shown)

$3.49

$

Usually ships in 2-12 days

0

43

Snapper 7016716

PULLEY, Drive
(Superseded to 7016716YP)

$36.99

$

Usually ships in 2-12 days

0

44

Snapper 7090322

SCREW, 5/16-24 x 1/2" Hex Head Cap

$2.99

$

In Stock, only 2 left!

0

45

Snapper 7011763

WASHER, Fender 5/16
(Superseded to 7011763SM)

$4.49

$

In Stock, only 3 left!

0

46

Snapper 7016728

FAN, 7" DIA 10 Blade
(Superseded to 7016728YP)

$31.99

$

Usually ships in 2-12 days

0

47

Snapper 7024235

Coupler
(Superseded to 7024235YP)

$14.99

$

Usually ships in 2-12 days

0

48

Snapper 7022289

U-BOLT 5/16-18
(Superseded to 7022289YP)

Note: Was 16718

$7.49

$

Usually ships in 2-12 days

0

49

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock (Torque to 23 ft/lbs.)
(Superseded to 703409)

Note: Was 91511

$5.49

$

In Stock, Qty 20+

0

50

Snapper 7072385

SPACER, 3/4" I.D. x 2-1/4" Long

Note: Was 24858

$

$

Not available

51

Snapper 7032027

WASHER, 3/4" Flat
(Superseded to 7032027SM)

$4.49

$

In Stock, Qty 7

0

52

Snapper 5023202

WASHER, 3/8 Wave
(Superseded to 5023202SM)

Note: Was 17855

$5.49

$

Usually ships in 2-12 days

0

Snapper 7033320

SADDLE, U-Bolt (Not shown on U-Bolt)
(Superseded to 7033320YP)

$21.99

$

Usually ships in 2-12 days

0
