LT 14H331KV (80085) - Snapper 41" Lawn Tractor, 14hp (1991) Wheels - Rear Parts Diagram

41" Lawn Tractor, 14hp

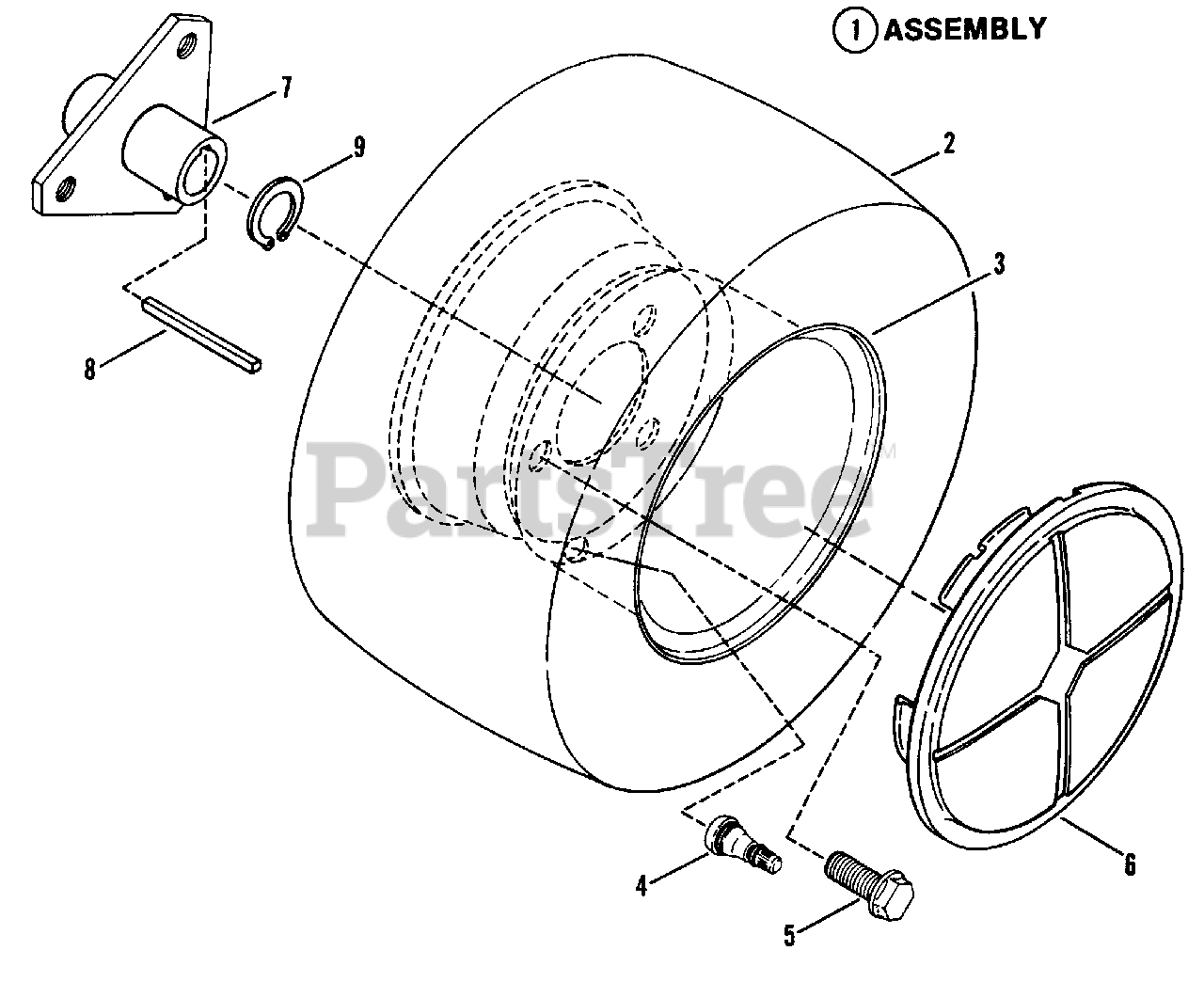

Wheels - Rear Parts Diagram

  • Title

1

Snapper 7052187

ASSEMBLY, Rear Tire & Rim (41" Deck) (No longer available)

Note: Was 52187 (Included items 2, 3 & 4)

$

$

Currently unavailable

Snapper 7052186

ASSEMBLY, Rear Tire & Rim (33" Deck) (No longer available)

Note: Was 52186 (Included items 2, 3 & 4)

$

$

Currently unavailable

2

Snapper 7016744

TIRE, 18x8.504

Note: (Used with 41" Deck)

$

$

Not available

Snapper 7036488

TIRE, 18x6.504
(Superseded to 7036488YP)

Note: Was 16743 (Used with 33" Deck)

$107.99

$

Usually ships in 2-12 days

0

3

Snapper 7016742

RIM, 8x7

Note: (Used with 41" Deck)

$

$

Not available

Snapper 7016741

RIM, 8x5.375

Note: (Used with 33" Deck)

$

$

Currently unavailable

4

Snapper 7012234

VALVE, Air (Snap-In)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7091502

BOLT, 1/2-20x3/4" Lug
(Superseded to 703431)

Note: Was 90367

$4.99

$

In Stock, Qty 20+

0

6

Snapper 7019418

HUB-CAP
(Superseded to 7019418YP)

$7.49

$

In Stock, only 2 left!

0

7

Snapper 7040720

HUB, Rear Wheel

$

$

Not available

8

Snapper 7017173

KEY, Square, 3/16x2-1/2"
(Superseded to 7017173YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7012899

RING, Retaining EXT .75

Note: Was 12829

$2.99

$

In Stock, only 1 left!

0
