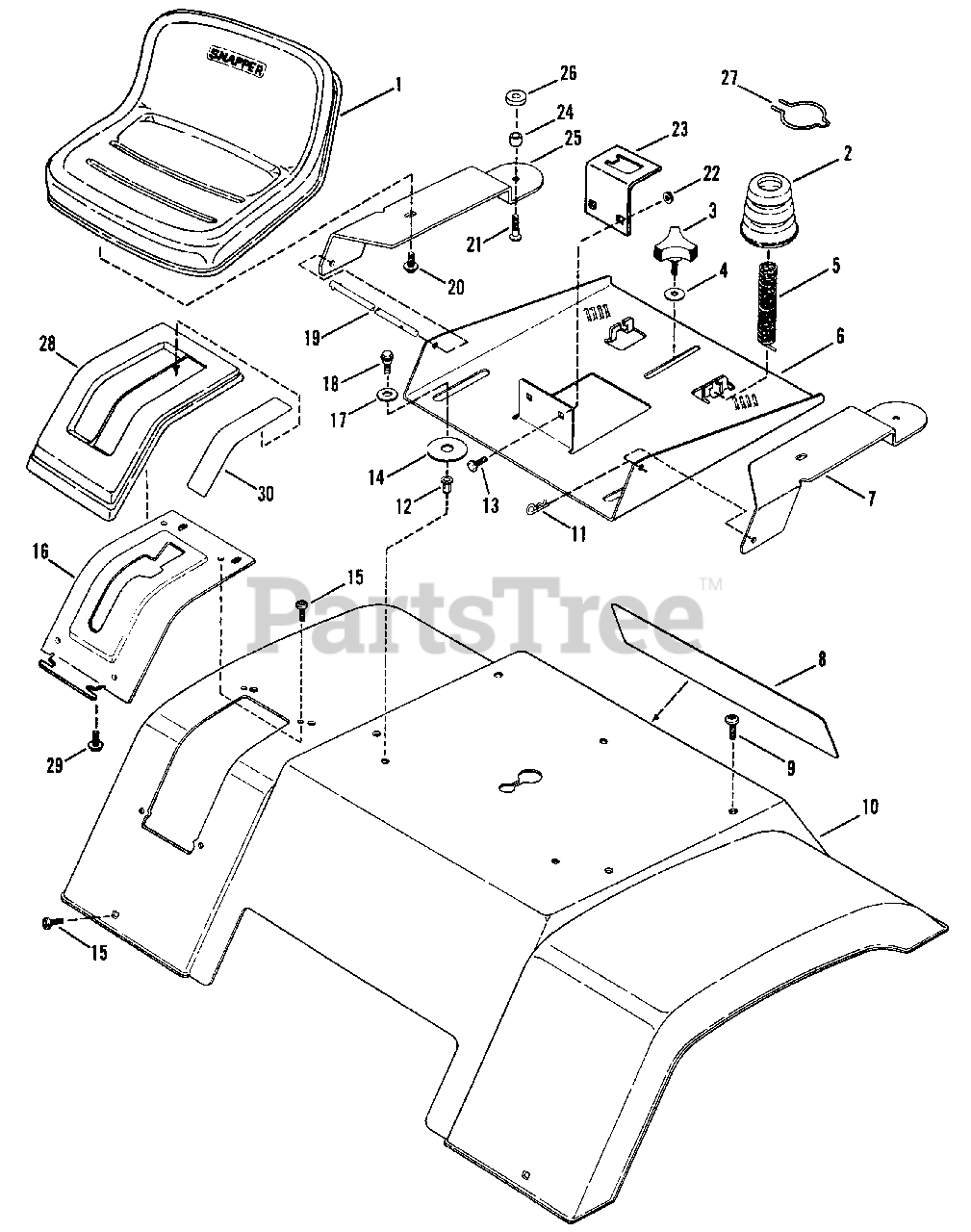

LT 14H331KV (80085) - Snapper 41" Lawn Tractor, 14hp (1991) Seat, Rear Fender Parts Diagram

41" Lawn Tractor, 14hp

Seat, Rear Fender Parts Diagram

  • Title

1

Snapper 7028650

SEAT, Operator's
(Superseded to 7028650YP)

Note: Was 17833

$262.99

$

Usually ships in 2-12 days

0

2

Snapper 7019109

CUSHION, Seat
(Superseded to 7019109YP)

$18.99

$

In Stock, Qty 20+

0

3

Snapper 7023191

KNOB, 3 Prong 5/16-18 x 3/4
(Superseded to 7023191SM)

$6.99

$

In Stock, only 2 left!

0

4

Snapper 7011763

WASHER 5/16"
(Superseded to 7011763SM)

$4.49

$

In Stock, only 3 left!

0

5

Snapper 7023190

SPRING
(Superseded to 7023190YP)

$7.99

$

In Stock, Qty 8

0

6

Snapper 7033085

SUPPORT, Seat
(Superseded to 7033085YP)

$53.99

$

Usually ships in 2-12 days

0

7

Snapper 7038536

BRACKET, Seat Support, L.H.

$

$

Not available

8

Snapper 7017149

DECAL, SNAPPER Molded Logo

$

$

Not available

9

Snapper 7091000

SCREW, 5/16-18x7/8" Torx. Hd., S.T.
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

10

Snapper 7033049

FENDER, Rear

$

$

Currently unavailable

11

Snapper 7012431

PIN, Hair 1.12"
(Superseded to 7012431SM)

$2.99

$

Usually ships in 2-12 days

0

12

Snapper 7023193

RIV-NUT, 5/16-18
(Superseded to 7023193YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7090799

BOLT, 5/16-18x5/8" Short Neck Carriage
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 7032692

SPACER, WEAR Nylon 2.0 x .62 x .055
(Superseded to 7032692YP)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7090999

SCREW, 1/4-20x5/8" Torx Hd., Self-Tapping
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7033120

DETENT, Shift

$

$

Not available

17

Snapper 7023192

WASHER, Flat .445 x 1.0 x .059

$

$

Not available

18

Snapper 7015761

SCREW, Shoulder, 5/16-18x3/4"
(Superseded to 703839)

$5.49

$

In Stock, only 3 left!

0

19

Snapper 7019035

ROD, Seat Hinge
(Superseded to 7019035YP)

$21.99

$

Usually ships in 2-12 days

0

20

Snapper 7090721

BOLT, 5/16-18x1/2" Hex Flange Lock
(Superseded to 7090721YP)

$3.49

$

In Stock, only 4 left!

0

21

Snapper 7077683

SCREW, 5/16cx1" Flat Hd. Hex Recess
(Superseded to 7077683SM)

$2.99

$

Usually ships in 2-12 days

0

22

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

23

Snapper 7032732

BRACKET, Switch
(Superseded to 7032732YP)

$37.99

$

Usually ships in 2-12 days

0

24

Snapper 7016359

SPACER, .39 x .375 (No longer available)
(Superseded to 7016359YP)

Note: Was 16359

$11.99

$

Usually ships in 2-12 days

0

25

Snapper 7038537

BRACKET, Seat Support, R.H.

$

$

Not available

26

Snapper 7016360

WASHER, Flat .406X1.38X.25 BZ

$

$

Not available

27

Snapper 7019348

CLIP, Seat Bumper
(Superseded to 7019348YP)

$24.99

$

In Stock, only 2 left!

0

28

Snapper 7019416

COVER, Shift Detent

$

$

Not available

29

Snapper 7091105

SCREW, #10-16x1/2" Self-Tapping
(Superseded to 7091105YP)

$5.49

$

In Stock, only 4 left!

0

30

Snapper 7073424

DECAL, Shift Cover

Note: Was 16576

$

$

Not available
