LT 14H331KV (80085) - Snapper 41" Lawn Tractor, 14hp (1991) Implement Lift Parts Parts Diagram

41" Lawn Tractor, 14hp

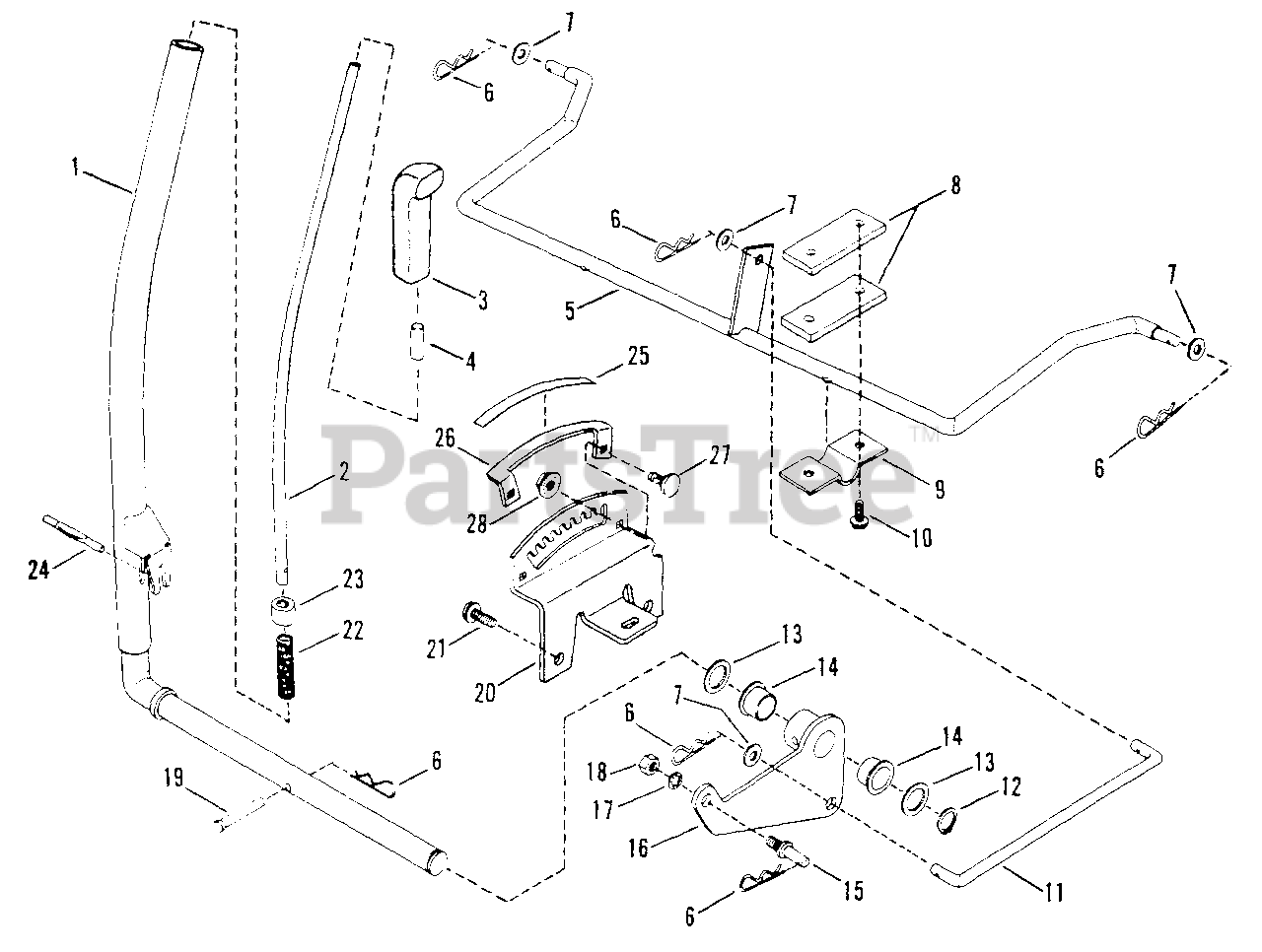

Implement Lift Parts Parts Diagram

  • Title
1

Snapper 7040698

ARM, Implement Lift Lever
(Superseded to 7040698YP)

$182.99

$

Usually ships in 2-12 days

0

2

Snapper 7034041

ROD, Lift Lever
(Superseded to 7034041YP)

$38.99

$

Usually ships in 2-12 days

0

3

Snapper 7019363

GRIP, Lift Lever
(Superseded to 7019363YP)

$8.49

$

Usually ships in 2-12 days

0

4

Snapper 7014361

CAP, Lift Release
(Superseded to 7014361YP)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7047961

ARM, Rear Lift
(Superseded to 7047961YP)

$57.99

$

Usually ships in 2-12 days

0

6

Snapper 7091503

PIN, Hair, 3/32x1-1/2"
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7090122

WASHER, 3/8 SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

$

$

Not available

9

Snapper 7032898

BRACKET, Arm
(Superseded to 7032898YP)

$15.99

$

Usually ships in 2-12 days

0

10

Snapper 7090369

SCREW, 5/16-18x1 H.W.H.S.T.
(Superseded to 7091841SM)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7023171

LIFT-ROD

$

$

Not available

12

Snapper 7015020

RING, Retaining EXT 7/8"
(Superseded to 7015020YP)

$

$

Not available

13

Snapper 7014354

WASHER, Lift Lever .905 x 1.25 x .091
(Superseded to 7014354YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7023197

BEARING, Lift Lever

$

$

Not available

15

Snapper 7015464

STUD
(Superseded to 7015464YP)

$7.49

$

In Stock, only 1 left!

0

16

Snapper 7047933

PIVOT ASSM'Y., Lift Lever
(Superseded to 7047933YP)

$86.99

$

Usually ships in 2-12 days

0

17

Snapper 7090390

WASHER, 3/8 Int. Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

18

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 1 left!

0

19

Snapper 7029841

PIN, Clevis, 5/16x1-11/16"
(Superseded to 704029)

Note: Was 12407

$4.49

$

In Stock, only 3 left!

0

20

Snapper 7033046

QUADRANT, Lift Lever

$

$

Not available

21

Snapper 7091000

SCREW, 5/16-18x7/8 Self-Tapping
(Superseded to 1960086SM)

Note: Was 91001

$4.99

$

In Stock, only 2 left!

0

22

Snapper 7014432

SPRING, Lift Lever
(Superseded to 7014432YP)

$7.99

$

Usually ships in 2-12 days

0

23

Snapper 7015019

PLUG, Lift Lever Nylon
(Superseded to 7015019YP)

$

$

Not available

24

Snapper 7090881

PIN, 3/16 x 2" Groove
(Superseded to 7090881YP)

$12.99

$

Usually ships in 2-12 days

0

25

Snapper 7017445

DECAL, Cut Height
(Superseded to 7017445YP)

$5.49

$

Usually ships in 2-12 days

0

26

Snapper 7033176

INDICATOR, Cut Height
(Superseded to 7033176YP)

$77.99

$

Usually ships in 2-12 days

0

27

Snapper 7090803

BOLT, 1/4-20x5/8 Flt. Hd. Carr.
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 7091584

NUT, 1/4-20 Hex Flg. Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0
