LT 14H331KV (80085) - Snapper 41" Lawn Tractor, 14hp (1991) Clutch, Brake & Transmission Controls Parts Diagram

41" Lawn Tractor, 14hp

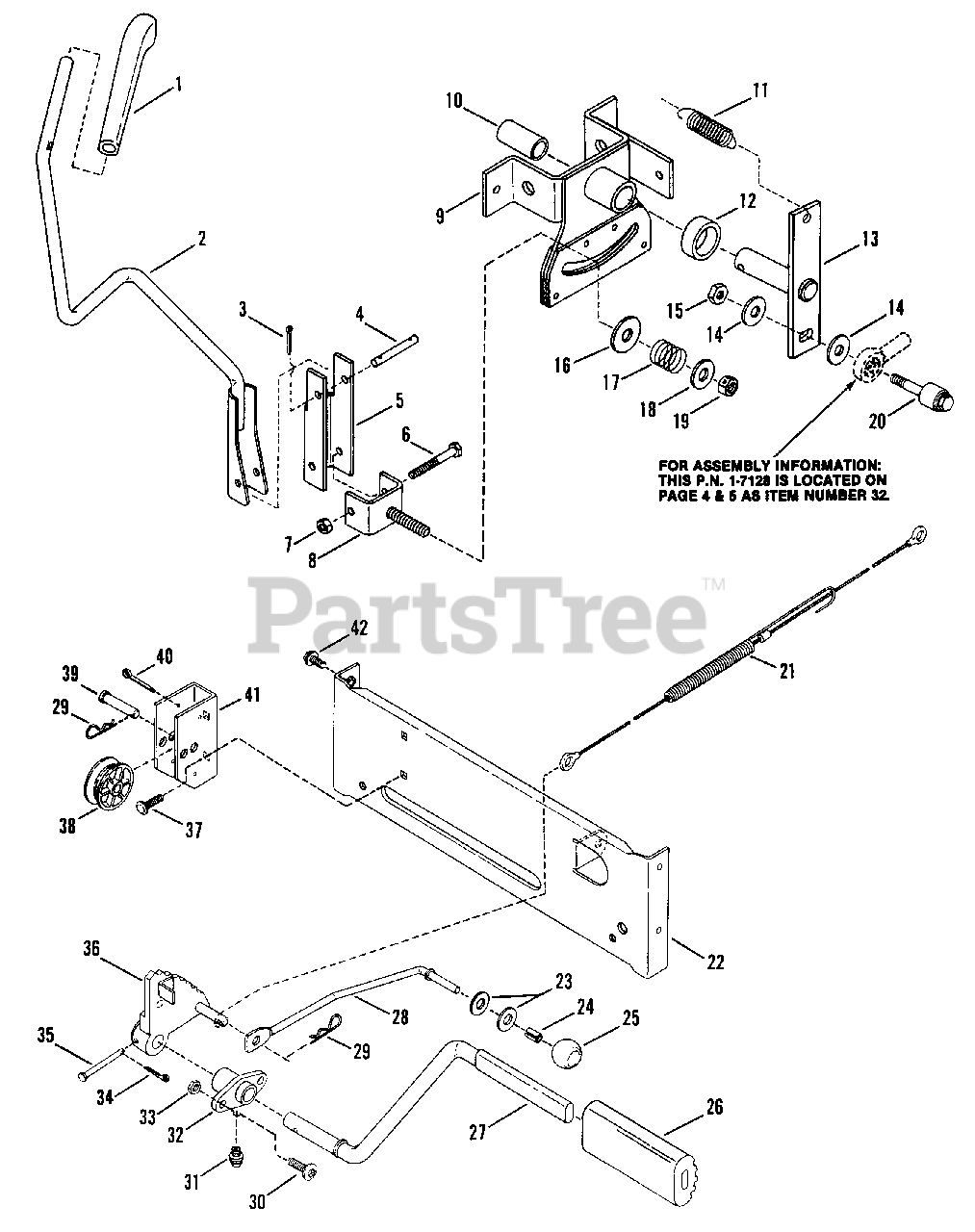

Clutch, Brake & Transmission Controls Parts Diagram

  • Title

1

Snapper 7023656

KNOB, Shifter (Elongated)
(Superseded to 7023656YP)

$5.99

$

In Stock, Qty 6

0

2

Snapper 7040716

SHIFTER, Transmission
(Superseded to 7040716YP)

$60.99

$

Usually ships in 2-12 days

0

3

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

4

Snapper 7022182

PIN, Shifter

$

$

Not available

5

Snapper 7033159

EXTENSION, Hub
(Superseded to 7033159YP)

$37.99

$

Usually ships in 2-12 days

0

6

Snapper 7090112

SCREW, 1/4-28 x 2" Hex Head Cap
(Superseded to 7090112YP)

$2.99

$

Usually ships in 2-12 days

0

7

Snapper 7090303

NUT, 1/4-28 Hex Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 7

0

8

Snapper 7052346

ASSEMBLY, Rub Plate

$

$

Not available

9

Snapper 7052274

ASSEMBLY, Shift Pivot

$

$

Not available

10

Snapper 7016955

BEARING, Shift Pivot Assembly (No longer available, try using 7015048)

Note: Was 16955

$

$

Currently unavailable

11

Snapper 7017818

SPRING, Shift
(Superseded to 7017818YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7017820

SPACER, 1.0 OD x .755 ID x .310 L

$

$

Not available

13

Snapper 7040704

CONTROL, Speed
(Superseded to 7040704YP)

$112.99

$

Usually ships in 2-12 days

0

14

Snapper 7091130

WASHER, 5/16 Flat
(Superseded to 7091130SM)

$3.99

$

In Stock, only 3 left!

0

15

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7017415

WASHER, Special

$

$

Not available

17

Snapper 7017416

SPRING, Tension
(Superseded to 7017416YP)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7090517

WASHER, 7/16 Flat
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

19

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

20

Snapper 7017543

FOLLOWER, Cam
(Superseded to 7017543YP)

$27.99

$

Usually ships in 2-12 days

0

21

Snapper 7019170

CABLE, Clutch (23.5 long)
(Superseded to 7019170YP)

$15.99

$

Usually ships in 2-12 days

0

21

Snapper 7026704

CABLE, Clutch (23.88" Long)
(Superseded to 7026704YP)

$20.99

$

Usually ships in 2-12 days

0

22

Snapper 7032926

BRACE
(Superseded to 7032926YP)

$34.99

$

Usually ships in 2-12 days

0

23

Snapper 7023649

WASHER, Nylon 5/16"
(Superseded to 7023649YP)

$4.49

$

In Stock, only 2 left!

0

24

Snapper 7023189

RING, Tolerance 5/16" x 1/2"
(Superseded to 7023189YP)

$5.99

$

In Stock, only 1 left!

0

25

Snapper 7023188

KNOB, Latch 5/16"
(Superseded to 7023188YP)

$4.99

$

Usually ships in 2-12 days

0

26

Snapper 7012661

PAD, Pedal
(Superseded to 7012661YP)

$

$

Not available

27

Snapper 7017024

PEDAL, Clutch/Brake

$

$

Not available

28

Snapper 7019033

LATCH, Clutch/Brake

$

$

Not available

29

Snapper 7012431

PIN, 1/4 x 1-1/8" Hair
(Superseded to 7012431SM)

$2.99

$

Usually ships in 2-12 days

0

30

Snapper 7091000

SCREW, 5/16-18 x 7/8" Torx
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

31

Snapper 7014871

FITTING, Lube 3/16"
(Superseded to 7014871SM)

$4.49

$

In Stock, only 4 left!

0

32

Snapper 7052431

PIVOT, Clutch/Brake Pedal

Note: (Includes item 31)

$

$

Not available

33

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

34

Snapper 7091313

PIN, 3/32 x 1" Cotter
(Superseded to 704058)

Note: Was 90038

$3.49

$

In Stock, only 1 left!

0

35

Snapper 7023645

PIN, 3/16 x 1 1/2" Clevis
(Superseded to 7023645SM)

$3.49

$

Usually ships in 2-12 days

0

36

Snapper 7040564

BRACKET, Pedal Pivot
(Superseded to 7040564YP)

$90.99

$

Usually ships in 2-12 days

0

37

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Neck Carriage
(Superseded to 7091530SM)

Note: Was 90074

$3.99

$

In Stock, only 3 left!

0

38

Snapper 7023182

SPOOL, Bracket
(Superseded to 7023182YP)

$8.49

$

In Stock, only 1 left!

0

39

Snapper 7012715

PIN, 3/8 x 1 9/32" Clevis

$

$

Not available

40

Snapper 7091809

PIN, 1/8 x 1 1/4" Cotter
(Superseded to 7091809YP)

Note: Was 90042

$4.49

$

Usually ships in 2-12 days

0

41

Snapper 7032694

BRACKET, Spool (No longer available, try modifying 7033328 to fit)

Note: Was 32694 or 33154

$

$

Currently unavailable

42

Snapper 7090858

SCREW, 5/16-18 x 1/2" Self-Tapping
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0
