LT 14H331KV (80085) - Snapper 41" Lawn Tractor, 14hp (1991) Blade Engagement Parts Diagram

41" Lawn Tractor, 14hp

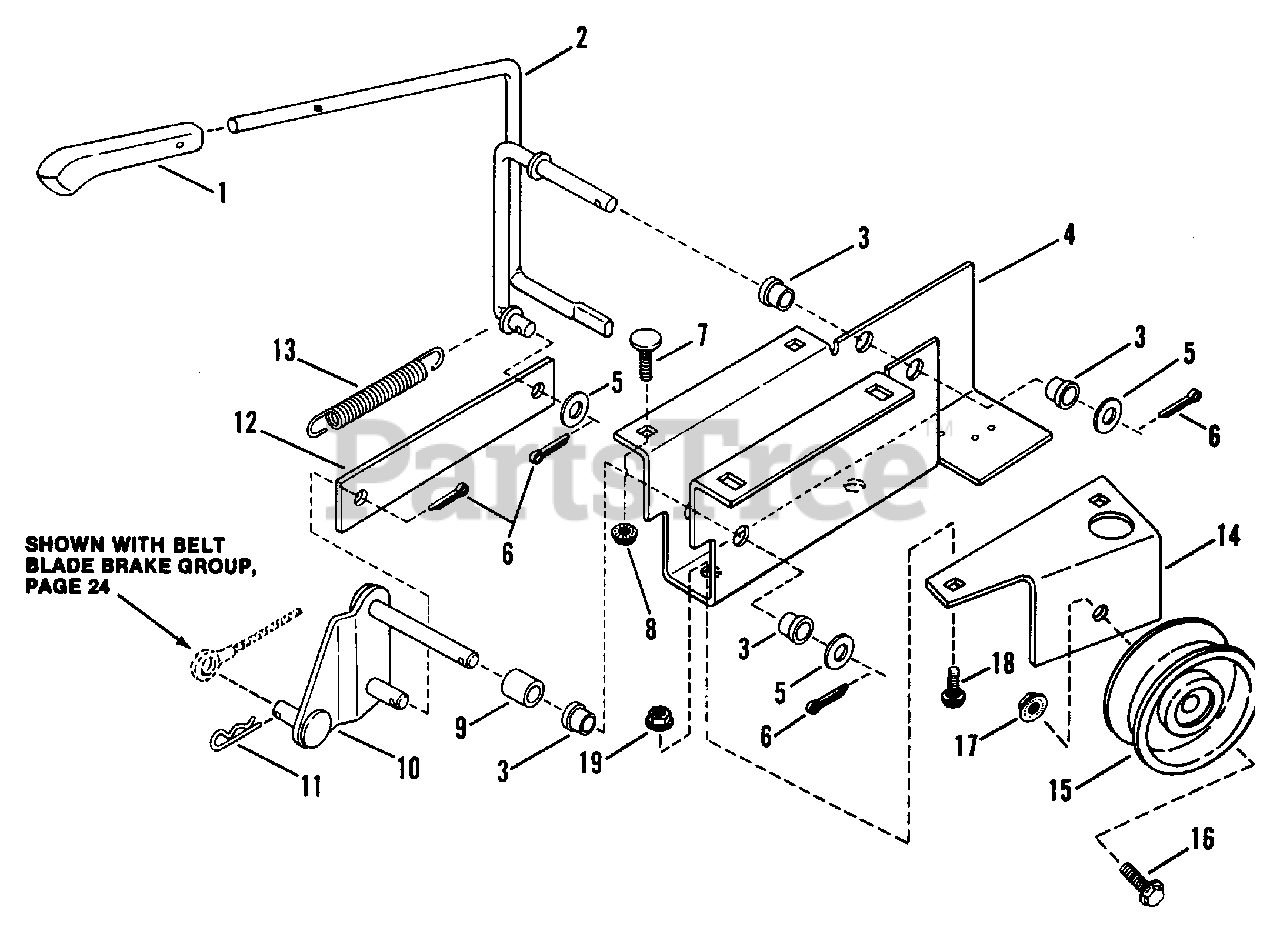

Blade Engagement Parts Diagram

  • Title

1

Snapper 7016356

KNOB, Handle 7/16"

$

$

Not available

2

Snapper 7040674

HANDLE, Blade Engagement

$

$

Not available

3

Snapper 7013321

BUSHING
(Superseded to 7013321YP)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7036271

BRACKET, Handle (No longer available)

Note: Was 36271

$

$

Currently unavailable

5

Snapper 7090122

WASHER, 3/8 SAE YZ
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Head Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7091584

LOCKNUT, 1/4-20 Hex Flange
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0

9

Snapper 7023206

SPACER .625 OD x .380 ID x .560 L
(Superseded to 7023206YP)

$8.49

$

Usually ships in 2-12 days

0

10

Snapper 7040570

PIVOT ARM ASSEMBLY

$

$

Not available

11

Snapper 7012431

PIN, Hair
(Superseded to 7012431SM)

$2.99

$

Usually ships in 2-12 days

0

12

Snapper 7032712

LINK

$

$

Not available

13

Snapper 7023165

SPRING, Return
(Superseded to 7023165YP)

$19.99

$

Usually ships in 2-12 days

0

14

Snapper 7033277

BRACKET, Idler Support
(Superseded to 7033277YP)

$53.99

$

Usually ships in 2-12 days

0

15

Snapper 7017748

PULLEY, Idler 2.75" OD

$

$

Not available

16

Snapper 7091580

BOLT, 3/8-16 x 1-3/4" Hex Flange Lock
(Superseded to 703812)

Note: Was 90701

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 7091619

NUT, 3/8-16 Hex Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

18

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage
(Superseded to 703798)

$4.49

$

In Stock, only 2 left!

0

19

Snapper 7091601

NUT, 5/16-18 Hex Lock Flanged
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0
